4 Inch Large Diameter Rubber Hose
Brief Introduction:
1. A kind of good quality large diameter rubber hose, 4 inch innder diameter.
2. Good features of flexible, elastic and high pressure, natural rubber material, no smelly.
3. Fiber or stainless steel wire braided reinforcement.
4. China supplier, made in China, our own factory, competitive price.
4 Inch Large Diameter Rubber Hose

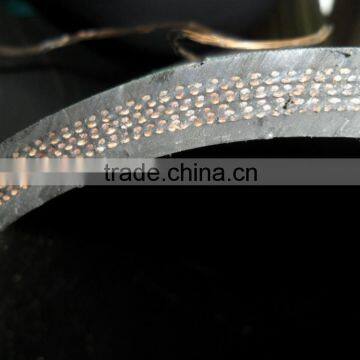

Structure:
- Ø Inner Rubber Layer: Adopted natural rubber and polybutadiene rubber as the principal raw material, and mixed with special reinforcing agent. With the features of smooth, high resistant to bending, stretching and ageing.
- Ø Reinforced Layer: Used good quality fiber cloth (canvas) or chemical fabric (cord thread) as the enhancement layer, better flexibility and pressure capacity.
- Ø Outer Rubber Layer: Employing natural rubber and compounded rubber, wear resistant, anti-oxidant, good appearance and long service life.
Application:
Suitable for river draining, garden watering, water suction and discharge, also suitable for neutral medium.
Common Specification:
Inner Diameter (mm) |
Out Diameter (mm) |
Working Pressure (Mpa) |
Blasting Pressure (Mpa) |
Weight (kg/m) |
The Maximum Length (m/roll) |
Price (USD/m) |
19 |
30.5 |
1.0 |
3.0 |
11 |
40 |
|
25 |
36.5 |
1.0 |
3.0 |
13 |
1) For 4 inch large diameter rubber hose, the delivery material can't mix with abrasive granule. Otherwise it will lower the hose usage life.
2) Please supply the delivery materials' type and the working temperature range before order the 4 inch large diameter rubber hose.
3) Other specifications please reference the form on the last cover page, we can supply all the products show in the form.
Additional Service:
- Ø Supply the service of non-standard size, special working pressure, length and colors.
- Ø Supply the OEM service and the LOGO style can be referenced the following photos.
- Ø Supply the service of flange installation on the hose's both sides.

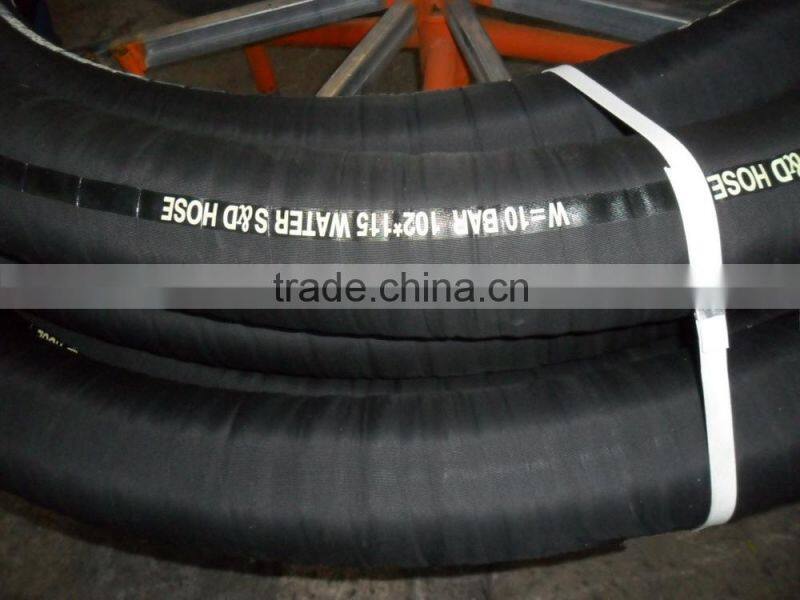

LOGO Style:
"KIYNN" 4 INCH LARGE DIAMETER RUBBER HOSE 25mm W.P. 1Mpa B.P.3Mpa
Suitable Temperature: -40℃~+90℃
Technology Standard: HG2192-2007
Other Technology Diameter:
Inner diameter(I.D) |
Working Pressure (W.P.) |
Blasting Pressure(B.P.) |
Weight |
Max Length |
|||
mm |
inch |
Psi |
Mpa |
Psi |
Mpa |
kg/m |
m |
8 |
5/16 |
42-170 |
0.3-1.2 |
126-510 |
0.9-3.6 |
0.23 |
100±1% |
9.5(10) |
3/8 |
42-170 |
0.3-1.2 |
126.-510 |
0.9-3.6 |
0.26 |
|
13(12.7) |
1/2 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.36 |
|
16 |
5/8 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.53 |
50±1% |
19 |
3/4 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.64 |
|
22 |
Non-standard |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.67 |
|
25 |
1 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.85 |
|
32 |
1 1/4 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.20 |
|
34 |
Non-standard |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.28 |
|
38 |
1 1/2 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.39 |
40±1% |
45 |
13/4 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.62 |
|
51 |
2 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.80 |
|
58 |
2 3/8 |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
1.85 |
|
60 |
Non-standard |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
1.90 |
|
64 |
2 1/2 |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
2.02 |
|
70 |
Non-standard |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
2.18 |
|
76 |
3 |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
2.41 |
|
89 |
3 1/2 |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
2.78 |
|
102 |
4 |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
3.16 |
20±1% |
114 |
Non-standard |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
3.50 |
|
127 |
5 |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
3.87 |
|
152 |
6 |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
5.13 |
|
178 |
7 |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
6.15 |
|
203 |
8 |
28-42 |
0.2-0.3 |
85-126 |
0.6-0.9 |
6.97 |
10±1% |
254 |
10 |
28-42 |
0.2-0.3 |
85-126 |
0.6-0.9 |
9.78 |
|
305 |
12 |
28-42 |
0.2-0.3 |
85-126 |
0.6-0.9 |
13.03 |
|
457 |
18 |
28-42 |
0.2-0.3 |
85-126 |
0.6-0.9 |
24.28 |
|

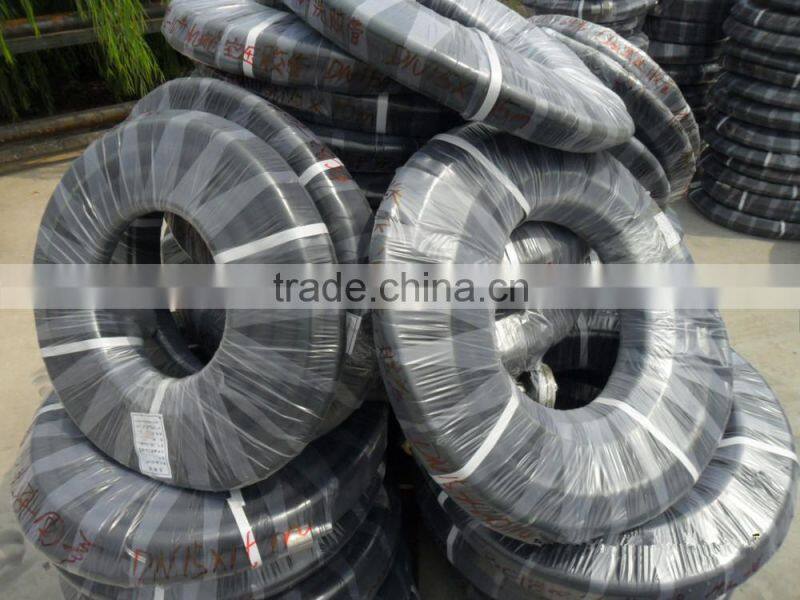

4 Inch Large Diameter Rubber Hose
1. Plastic film
2. Nylon bag
4 Inch Large Diameter Rubber Hose
Advantage:
- Material advantage: with good quality high intensity natural rubber.
- Price advantage: our own factory and our own trading company in Qingdao, you can receive the most competitive price and the best trading service.
- Quality advantage: our rubber products have been exported to UAS, Russia, Japan, the Middle East and South Asia.
- Location advantage: Near Qingdao port, saving the transport time and land transport cost.
- Experience advantage: more than 25 years rubber products production and sales.
- Delivery time advantage: within 7 days after the advanced payment.
Company Information
Laizhou QI Yuan Plastic Products Co., Ltd was established in 1992, we specialize in producting and exporting all kinds of rubber hose, such as industry rubber hose, sand blasting rubber hose, air hose, water suction and discharge hose, oil hose and so on. The rubber hose has beeb expported to Europe, America, and South Asia. This is our own factory so that we can supply the products with good quality and competitive price.
