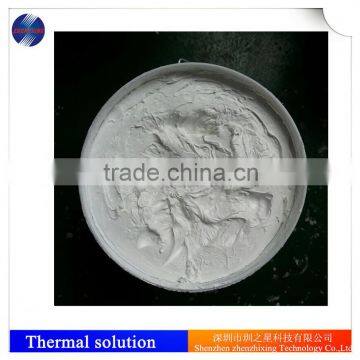

Silicone adhesive for electron component Good thixotropy and fast curing
Features
. Thermal conductivity:1.2 W/M-K
. Single-component
. Auto-removing foam
. Good high and low termperature resisitance
. Good physical and chemical stability
. RoHS and UL compliance
Applications
. Electronic devices
. Power
. Heat and electricity transducer
. Thick film IC
. Metal/Plastic/ceramics BaseLayer
. Others
Method of Use
. Mix it round slightly before use.
. Cover it closely after use, so as to avoid solidifying when contacting air.
PROPERTY |
ZZX-601 |
ZZX-602 |
TEST METHOD |
Color |
Pasty/Gray |
Pasty/Gray |
Visual |
Hardness |
60°C Shore C |
60°C Shore C |
ASTM D2240 |
Adhesiveness |
5000cps |
5000cps |
ASTM D412 |
Operating Time (Hour, 25°C) |
0.5H |
1H |
Visual |
Volume Impedance |
1.1*1016Ω |
1.1*1016Ω |
ASTM D527 |
Room Solidifying Time |
24H |
24H |
Visual |
Breakdown Voltage |
25KV/mm |
25KV/mm |
ASTM D149 |
Continuous Use Temp |
-60°C-+200°C |
-60°C-+200°C |
EN344 |
Corrosion Sability |
Qualified |
Qualified |
Visual |
Thermal Conductivity |
1.2W/M-K |
1.2W/M-K |
ASTM D5470 |
Expired Time |
12 months under 25°C with sealed container. |
||
Standard Packing Size |
1KG/Container. |
||
Description
ZZX -600-1 is a one-component, fast curing RTV silicone rubber, which uses moisture in the air to form to flexible silicone rubber. ZZX-600-1 has good thermal conductivity and flame-retardant capabilities for metals, plastics, ceramics, and has excellent non-corrosive capabilities. It is without primer coating.
Main Features
1. Take off alcohol, it is low odor, non-toxic and non-corrosive
2. Good thixotropy, fast curing.
3. With various substrate adhesion without primer coating.
4. Thermal conductivity function, thermal conductivity coefficient can be 1.2W / m-k
5. Flame-retardant, 94UL .
6. Excellent heat-resistance and cold-resistance.
7. Excellent electrical properties and weather-resistance.
8. One-component, easy to use.
