Product description:

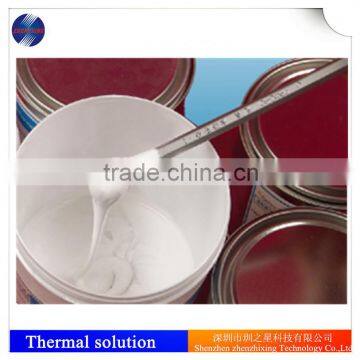

Silicone grease with high thermal conductivity used for CPU
The product has excellent heat conductivity, good electrical insulation, wide working temperature (operating temperature:-50 ° c ~+200 ° c), good stability, low consistency and good construction performance, this product is nontoxic, non-corrosive, odorless and not dissolved.
Features:
1.High thermal conductive performance / easy to operate
2.Low thermal resistance
Applications:
-CPU/Chip
-Power
-LED Lights
-Others
Property:
Property |
G-100 |
G-200 |
G-300 |
G-500 |
Test Method |
Unit |
Density |
1.8 |
2.3 |
2.7 |
3.2 |
ASTMD792 |
--- |
Color |
white |
Gray |
Gray |
Gray |
--- |
Visual |
Volatile Content |
0.6 |
0.5 |
0.3 |
0.2 |
ASTME595 |
%/Wt |
Thermal Conductivity |
1.0 |
2.0 |
3.0 |
5.0 |
ASTM D5470 |
W/mK |
Thermal Resistance |
0.056 |
0.041 |
0.025 |
0.009 |
ASTMD5470 |
C-In²/W |
Breakdown Voltage |
1300 |
1100 |
1000 |
600 |
ASTM D149 |
VAC/mil |
Dielectric Constant |
4.4 |
4.5 |
4.7 |
4.8 |
ASTM D150 |
--- |
Volume Voltage |
>1013 |
>1013 |
>1013 |
>1012 |
ASTM D257 |
--- |
Work Temp |
-50°C to 200°C |
|||||
