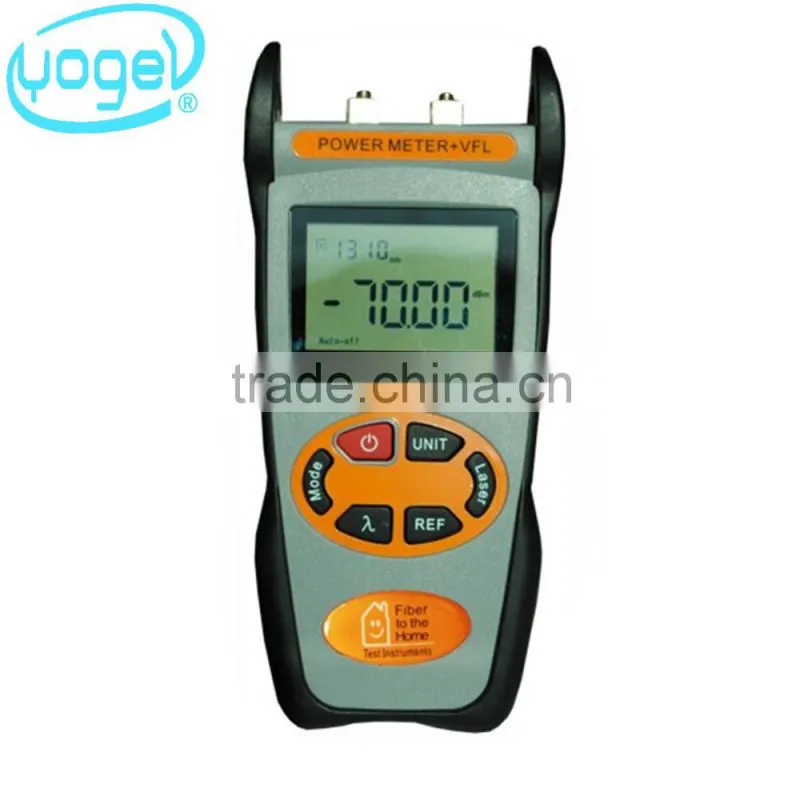

Red table is according to the real demand of optical engineering construction launched a practical measuring instrument, instrument combined with the actual needs of the engineering and construction personnel, in the field of optical detection to achieve power measurement and visual barrier seeking technology, so as to solve the tedious steps in FTTx network maintenance, greatly improves the work efficiency. Red table is FTTX network maintenance and rapid detection of the best choice for the cold.
Standard configuration
The use of the product, three AA batteries, power adapter, USB cable, clean cotton, soft cloth, Oxford installation CD
Wavelength range(nm) |
800~1700 |
|
Calibration wavelength(nm) |
850,1300,1310,1490,1550,1625 |
|
Probe type |
InGaAs |
|
Detector area |
0.3mm(1.0mm) |
|
Power measurement range(dBm) |
-70~+3 |
-50~+26 |
Inherent uncertainty(dB) |
±0.22(5%) |
|
Linear degree(dB) |
0.03 |
|
Red light function |
650nm 1mw(10mw) |
|
Display resolution(dB) |
0.01 |
|
Power Supply |
3 section AA battery and power adapter |
|
Battery duration(h) |
200 |
|
Auto shutdown time(min) |
10 |
|
working temperature(℃) |
-10~+60 |
|
storage temperature(℃) |
-25~+70 |
|
Outline dimension(mm) |
200×90×50 |
|
weight(g,Without batteries) |
285 |
|
– – – – – – – – – – – – – – – – – – – – – – – – – – – – – –
Packaging and logistics
– – – – – – – – – – – – – – – – – – – – – – – – – – – – – –
Company strength
Q: |
Are you manufacturer? |
A: |
Yes! |
Q: |
How about the quality? |
A: |
Our company's products are through the quality of the test, the indicators have reached the international standard! |
Q: |
Which currencies are supported? |
A: |
Dollar, euro, RMB |
Q: |
What are the after-sales service? |
A: |
In the face of service and quality problems, can be settled through friendly consultations, as far as possible in accordance with customer needs, meet customer needs, meet product quality problems, we can free replacement of new products! |
