Gold grinding machine/Gold Wet Pan Mill Grinding Machine of Top brand
Our enterprise has set up for many years,during the time,we have established a good
reputation and have ourselves brand,Dongfang Group is a fully reinforced famous
brand now,we have the advanced technology and professional and experienced engineers.Every machine has its own ISO&CE.o(∩_∩)o
Usage :
Gold grinding machine is mainly used in fields of gold, silver, lead, zinc, iron, molybdenum,
copper, antimony mine, mine, and the wet grinding machine can do all what the ball mill can do.
Brief Instructions:
The machine can be used in the line of ore dressing,such as the gold,as we all know, the gold
is always contained in the natural mineral,then the machine can be used to dress them out ,the The related working principle will be offered in the next.
Features :
Gold grinding machine is mainly through the mixing of raw materials, rolling, crushing, rolling repeatedly to reach moisture equilibrium, the ratio of uniform, low gas content,
to increase molding and molding quality, grind the material through the machine molding products,It has a high density, strength, and no porosity ratio. Energy efficient,
high output, the product is used for iron ore tailings recovery process, not slag the loss, the effective resources can be fully utilized.
Gold grinding machine when the choice of gold sorting methods and process .
1. gold grinding machine after the installation is completed to gold grinding machine groove bottom 5 kilograms of mercury begins normal operation.
2 each class receive once the Sands, the shift added to 1 kg of mercury to receive the grind at the end of the Sands and mercury, the mercury received Sheng gold
equipment, with a relatively high density of red cloth mercury screwed out to the package, open the red cloth which left Sands. One kilogram of mercury each class started on it.
Containing one is grasping the cloth of gold or grab the gold behind the blanket and put on the mercury board can receive the gold.
Main technical parameters :
Model | Specification | Input size(mm) | Rotate Speed (r/min) | Powder(kw) | Weight(t) |
1600A | 1600×400×200×500±20mm | 30mm | 20-22 | 25KW | 14.5 |
1500A | 1500×350×200×460±20mm | 20-22 | 22KW | 13.5 | |
1500B | 1500×350×150×460±20mm | 20-22 | 22KW | 12.3 | |
1500C | 1500×300×150×420±20mm | 20-22 | 22KW | 11.3 | |
1400A | 1400×250×150×350±20mm | 16-18 | 18.5kw | 8.5 | |
1400B | 1400×250×150×350±20mm | 21-23 | 18.5kw | 8.5 | |
1350A | 1350×250×150×350±20mm | 16-18 | 18.5kw | 8 | |
1350B | 1350×250×150×350±20mm | 21-23 | 18.5kw | 8 | |
1300A | 1300×250×150×350±20mm | 16-18 | 15kw | 7.5 | |
1300B | 1300×250×150×350±20mm | 21-23 | 15kw | 7.5 | |
1200A | 1200×200×80×250±20mm | 17-19 | 7.5kw | 5.5 | |
1200B | 1200×200×80×250±20mm | 23-25 | 7.5kw | 5.5 | |
1100A | 1100×200×80×250±20mm | 17-19 | 7.5kw | 5 | |
1100B | 1100×200×80×250±20mm | 23-25 | 7.5kw | 5 | |
1000 | 1000×200×80×250±20mm | 13-15 | 5.5kw | 4.5 |
Operation :

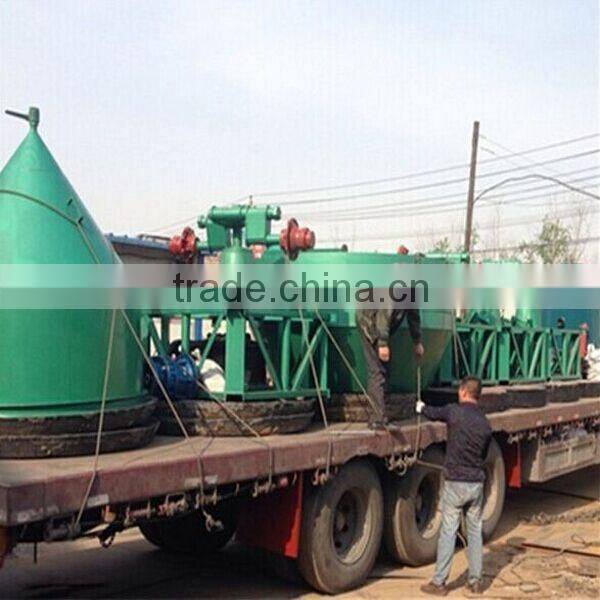

Delivering Pictures Presention:
Our Service:
• Professional installation:we has a professional installation team; they are hardworking, industriously studying and brave in innovating. So far, they have successfully finished installation and commissioning tasks for thousands of large and small projects. Besides, our installation team also helps our customers train the operations staff, till they can operate the machinery independently.
• Skilled aftersale service teamwe can offer 24*7*365 online engineer service and solve the problems for you ASAP. our aftersale service team spreads all over the world, they will deliver prompt and complete service to keep your job moving forward. The technicians of our team offer super service ranging from routine maintenance and accident repairs to customization and reconditioning.
• Preferential supply of wear partsOriginal spare parts are the heart of crushing and screening plant. we supplies quality original parts to protect your investment and our experienced product specialists can ensure you receive exactly what you need to get your equipment back on working.
About Our Company:
Henan Dongfang Group is a manufacture factory.The factory has very rich experience as it has a history of more than ten years. The factory covers more than 60,000 square meters,180 sets of gold processing equipment,more than 1,000 employees,and our factory .
This is our factory,Dongfang Group,and the workshop.You're welcome to visit our factory.
Welcome to our factory and patronize for our common development creating brilliancy!
Contract Us:
If you want to know more about us and our production,please contract us,and we'll be very glad.
HENAN DONGFANG MACHINERY Co., Ltd.
Contact: Helen Zhao
Skype: dfmachine01
Tel: 0086-371-67668877 / 67944555
Fax: 0086-371-67944555
If you have any problems. Please feel free to contact us.
You're warmly welcome to visit our factory
Our website: http://hndongfang.en.china.cn/
