JZR350 Diesel Hydraulic Concrete Mixer

JZR350 Diesel Hydraulic Concrete Mixer photo-1
US$ 100 - 3,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Jiacheng
Payment & Shipping
Payment Methods:
Port of Shipment:
Nantong or shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name Jiacheng
Model Number JZR350
Motor Power 9.7kw
Mixing Power kw
Charging Capacity 560L
Reclaiming capacity 350L
Speed of Mixing Drum 17r/min
Water Supply Mode Automatic
Working Cycle Period 90s
Discharge Way Automatic
Outline Dimension 2950*2250*2650mm
After-sales Service Provided Engineers available to service machinery overseas

Specifications

JZR350 diesel engine concrete mixerr:
1. Diesel-powered, more economical.
2. Normal working even out of electricity

1.JZR350 Diesel Hydraulic Concrete Mixer was designed as the motive power of the mixer, which could stir the plastic concrete and semi-dry nature of concrete and produce 350L concrete per tank, the productivity is 10-14m³.



2.It is Suitable for construction sites, roads, bridge constructions and fabrication sites of small prefabricated concrete members.



3.The machine equips of   JZR350 Diesel Hydraulic Concrete Mixer   with advanced items, high productivity, cramped construction, low-power and etc. The concrete mixer’s host is the diesel engine which will not limited by the natural environment, to ensure the project.



JZR350 Diesel Hydraulic Concrete Mixer Main technical parameters:



Model

JZR350

Feed Capacity

560L

Discharge Capacity

350L

Productivity

10-14m³/h

Number of Operation Cycles

40/h

Standard Power

9.7kw/2200r/min

Starting Means

automatic

Mixing Drum Speed

17r/min

Water Tank Volume

65L

Maximum Aggregate Diameter

60mm

Time of Loading Skip Lifting

7s

Type of Tire

6.50-16

Dimensions(Length*Width*Height)

2950*2250*2650mm

Weight

2100kg

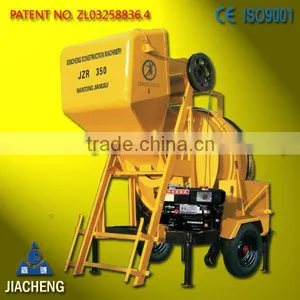

JZR350 Diesel Hydraulic Concrete Mixer



Diesel engine powered with Hydraulic tipping hopper









JZR350 Diesel Hydraulic Concrete Mixer









JZR350 Diesel Hydraulic Concrete Mixer
