2013 Disk Grain Making Pan Granulator Machine !
This Pan Granulator Machine is a kind of fertilizer equipment, mainly used to process fertilizers into specific shapes. Particles processed by this granulator are of the same size.This disc granulator has the features of simple structure, high granulating efficiency, reliable performance, easy operation, and longer service life, etc. This disc granulato is widely used in gold concentrator,coal mine,chemical plant,construction and foundry for quantitative and even feeding, and also suitable for conveying of materials with granularity less than 50mm.
Application and features of Pan Granulator Machine :
Disc granulator angle is used by the overall arc structure of stainless steel, with the graining rate of 93%. Granulator plate design allows discontinuous production operation, greatly reducing the labor intensity and improving labor efficiency. Reducer and motor adopt a flexible belt drive for smooth start, slowdown impact and improving equipment life. Multiple radiation steel is used to strengthen the granulator bottom, durable and never deformed. Thicker, heavier and solid base design makes smooth operation, without anchor bolts. Granulator main gear uses high-frequency quenching, life doubled. The granulator has the features in uniform granulation, high graining rates, stable operation, durable and long working life, etc. and hence it becomes the best choice for most customers
Pan Granulator Machine Product Information:
1.The Pan Granulator Machine is one of the common fertilizer industry equipments.
2.It is applied to the medium or low concentration, small-scale production. The disc is set and adjusted between 40 °-55 °.
3.The Pan Granulator Machine is drived by motor reducer gear to join mixed good materials fertilizer.
4.Because of rise in the force of gravity scroll down, in the above several under the action of forces plate material,gradually formed the nuclear straight to finished product size, round plate by the spill.
5.The Granulating Disc is of high rate of being ball particles, high strength,round particles, anti-corrosive, easily operated, convenient maintenance.
Technology parameters of Pan Granulator Machine :
| Model | Inner Diam(mm) | Side Height(mm) | Volume(m3) | Rotate Speed(r/min) | Motor Power(KW) | Production Capacity(t/h) | Decele Rators Model |
| ZL25 | 2500 | 500 | 2.5 | 13.6 | 7.5 | 1-1.5 | BW33-23 |
| ZL28 | 2800 | 600 | 3.7 | 13.6 | 11 | 1-2.5 | BW33-23 |
| ZL30 | 3000 | 600 | 4.2 | 13.6 | 11 | 2-3 | BW33-23 |
| ZL32 | 3200 | 600 | 4.8 | 13.6 | 11 | 2-3.5 | BW33-23 |
| ZL36 | 3600 | 600 | 6.1 | 11.3 | 15 | 3-5 |

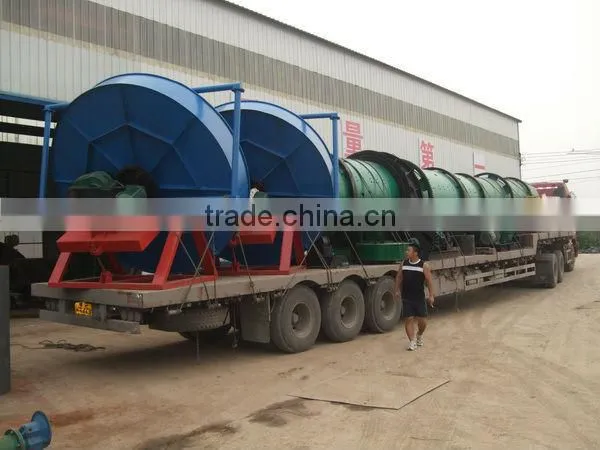

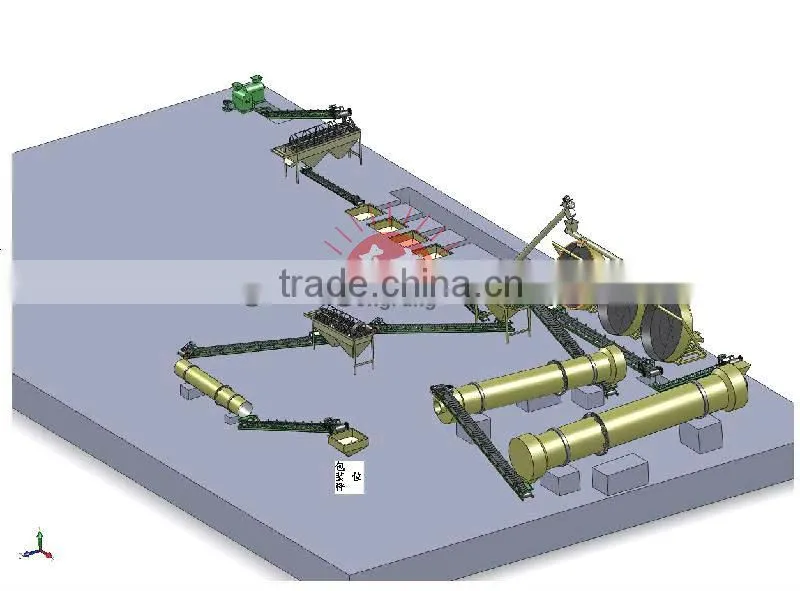

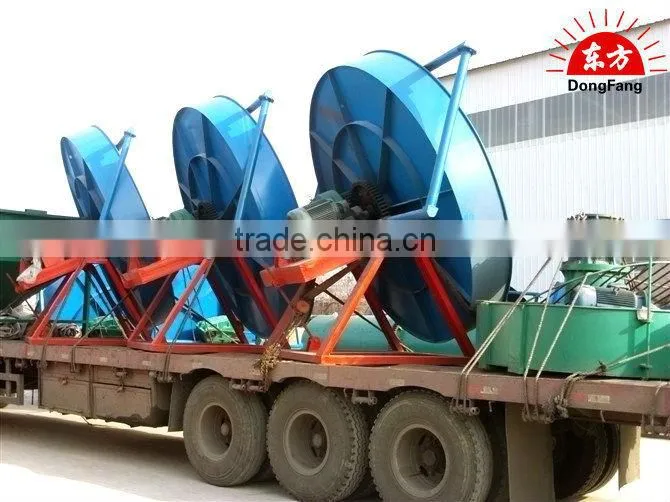

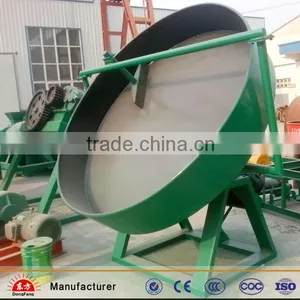

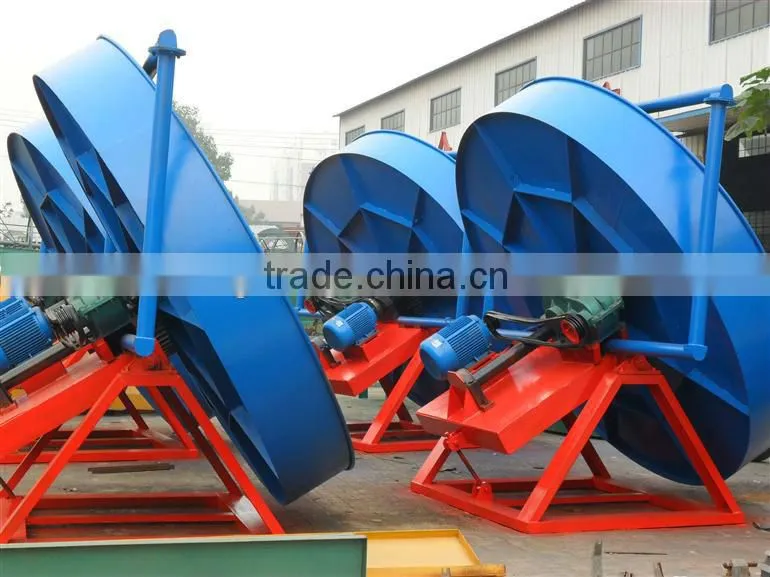

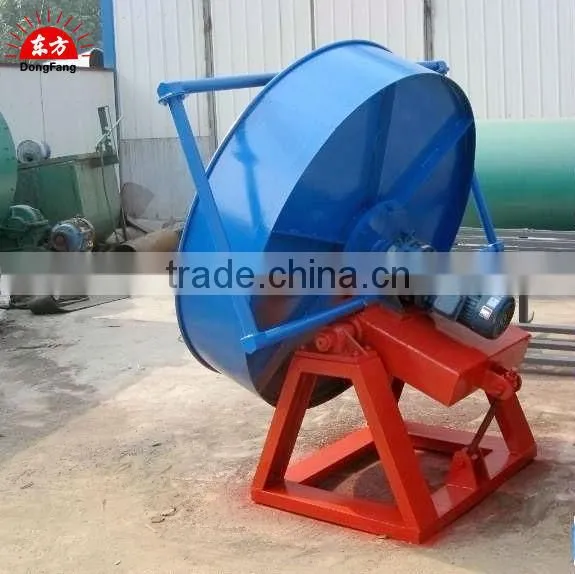

Photos of the Pan Granulator Machine :
