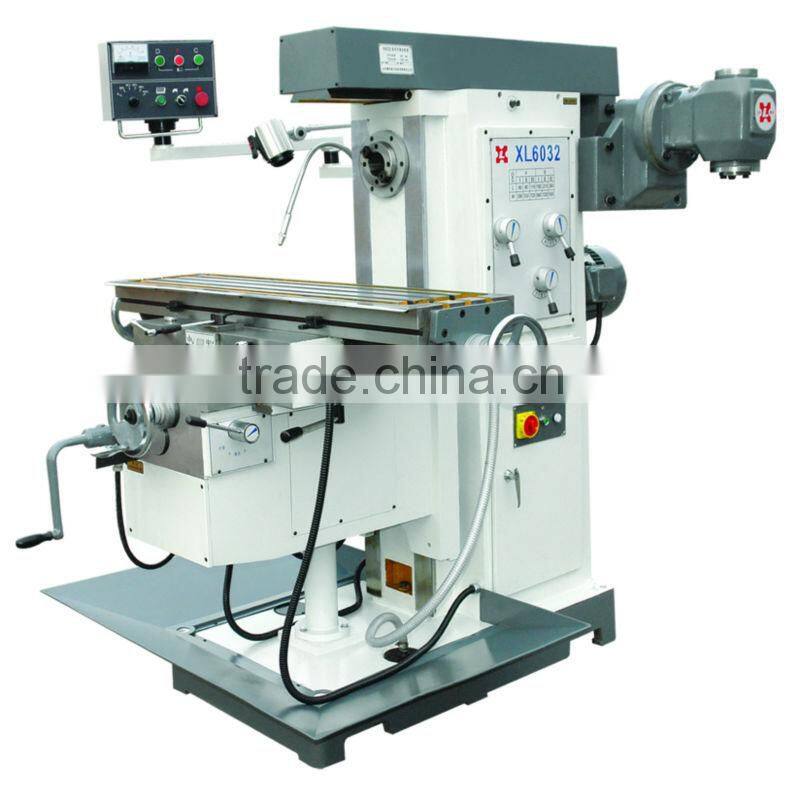

Radial Arm Milling Machine XL6032

Name: Radial Arm Milling Machine XL6032
Brand: YOURONGXILI
SKU: 106422799
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

YOURONGXILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name YOURONGXILI

Model Number XL5032

Type Horizontal

CNC or Not Normal

Voltage 20V/380V

Power(W) 5500W

Dimension(L*W*H) 1800*2100*1870

Weight 2400KG

Certification CE

Warranty 12 MONTHS

After-sales Service Provided Engineers available to service machinery overseas

Specifications

High rigidity capable of heavy load cutting
Driven by Ac servo motor Table automatic feed on X,Y,Z
Automatic rapid feed X,Y,Z

Specification	Unit	XL5032	XL5032C	XL5032CL
Table size	mm	1325X320		1600X320
T-slots(NO./Width/Pitch)		3/18/70
Longitudinal travel	mm	750	1100	1300
Cross travel	mm	320
Vertical travel	mm	460	450
Table feed (X/Y/Z)	mm/min	30-750/20-500/15-375 8 steps
Table rapid speed(X/Y/Z)	mm/min	1200/800/600
Spindle taper		7:24 ISO50
Spindle speed range	r.p.m	50-1475
Spindle speed step	steps	12 steps
Spindle travel	mm	70
Max. swivel angle of vertical milling head		±30°
Distance between spindle nose and table surface	mm	50-510	50-500
Distance between spindle axis and column guideway	mm	378
Torque of X/Y/Z axis AC servo motor	N.m	10
Main motor Power	kw	5.5
Overall dimensions (L×W×H)	mm	1800×2100×2150	2245×2100×2150	2520×2100×2150
Net weight	kg	2750	2850	2900
