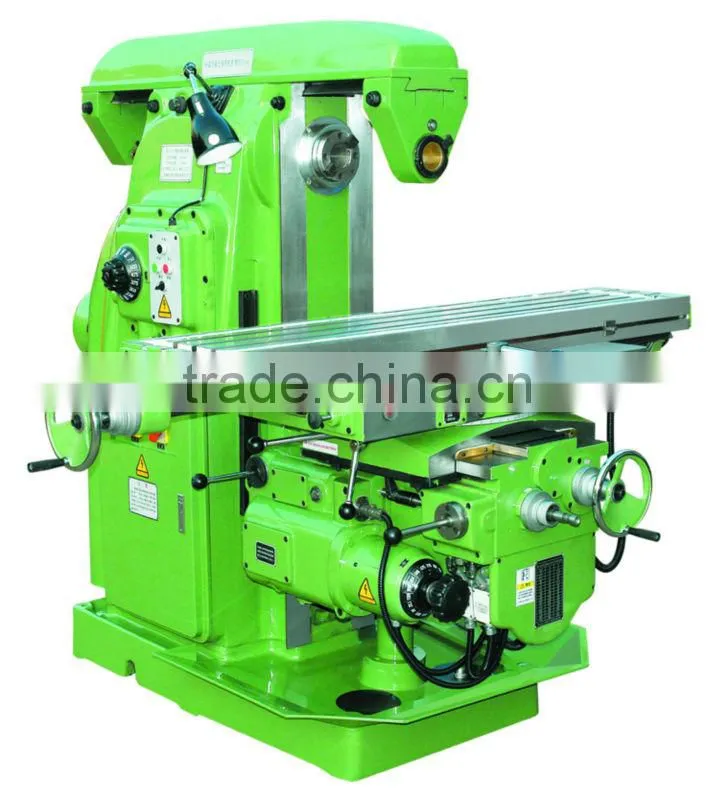

X6132 Universal Milling Machine Manufacturer

Name: X6132 Universal Milling Machine Manufacturer
Brand: YOUROGNXILI
SKU: 106422017
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

YOUROGNXILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qindao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name YOUROGNXILI

Model Number X6132

Type Universal

CNC or Not Normal

Voltage 380V

Power(W) 7500W

Dimension(L*W*H) 2294*1770*1610MM

Weight 2950KG

Certification ISO9001

Warranty 12MONTHS

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Universal Milling Machine Manufacturer
ISO9001 certificated.
for machinery, light industry, instrument, motor, etc

X6132 Universal Milling Machine Manufacturer

specification	unit	X6132	X6132B		X6132H	X6132BH
Table size	mm	320X1325	320X1600		320X1325	320X1600
Max Longitudinal travel(manual/auto)	mm	700/680	900/880		700/680	900/880
Max transverse travel(manual/auto)	mm	255/240
Max vertical travel(manual/auto)	mm	320/300			410/390
Max rotary angle		±45°
Distance between spindle axis table	mm	30/350		30/440
Spindle speed step		18 steps
Spindle speed range		30-1500
Feed range of table travel	steps	18 steps
Main motor power	kw	7.5
Feed motor power	kw	1.5
Overall size (L x W x H)	mm	2294X1770X1610	2294X2050X1610		2294X1770X1790	2294X2050X1790
N.W/G.W	kg	2650/2950	2740/3040		2850/3150	2940/3240
