X6132 Iron Cast Bench Universal Knee-type Millimg Machine

Name: X6132 Iron Cast Bench Universal Knee-type Millimg Machine
Brand: YOURONGXILI
SKU: 106421335
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

YOURONGXILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name YOURONGXILI

Model Number X6132

Type Universal

CNC or Not Normal

Voltage 380V

Power(W) 7500W

Dimension(L*W*H) 2294*1770*1610MM

Weight 2950KG

Certification ISO9001

Warranty 12MONTHS

After-sales Service Provided Engineers available to service machinery overseas

Specifications

ISO9001 certificated.
for machinery, light industry, instrument, motor, electrical appliance, die and moulds.

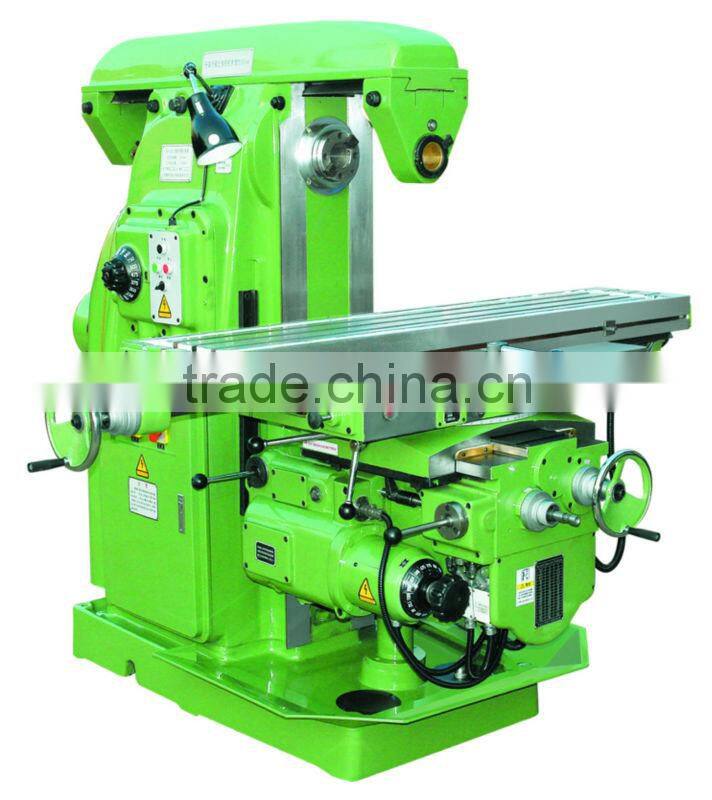

X6132 iron cast bench Universal Knee-type millimg machine

specification	unit	X6132	X6132B		X6132H	X6132BH
Table size	mm	320X1325	320X1600		320X1325	320X1600
Max Longitudinal travel(manual/auto)	mm	700/680	900/880		700/680	900/880
Max transverse travel(manual/auto)	mm	255/240
Max vertical travel(manual/auto)	mm	320/300			410/390
Max rotary angle		±45°
Distance between spindle axis table	mm	30/350		30/440
Spindle speed step		18 steps
Spindle speed range		30-1500
Feed range of table travel	steps	18 steps
Main motor power	kw	7.5
Feed motor power	kw	1.5
Overall size (L x W x H)	mm	2294X1770X1610	2294X2050X1610		2294X1770X1790	2294X2050X1790
N.W/G.W	kg	2650/2950	2740/3040		2850/3150	2940/3240
