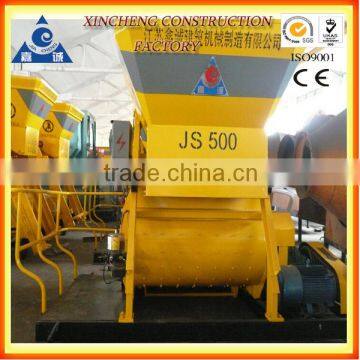

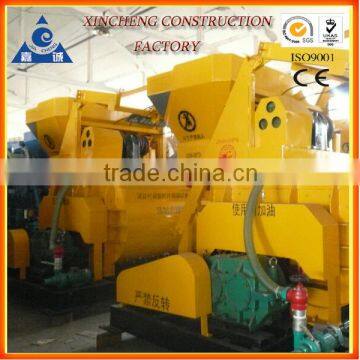

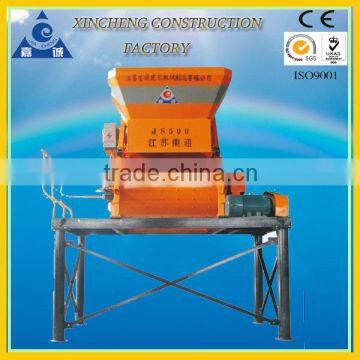

JS500 Mini Concrete Mixer Factory is a kind of compulsory one with double axle.
It is suitable for medium and small-scale prefabrication plant and highways, bridges,
water conservancy and other industrial and civil engineering construction sectors to
mix dry hard, pasty, plastic, and light aggregate concrete.
It can be either used as the single machine or combined with concrete batching
machine to make a simple mixing station.
Features :
1.As a miniature double-horizontal-shaft forced type concrete mixer, this concrete
mixing machine features short mixing time, good homogeneity and reliable operation.
2.Shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace.
Application:
This concrete mixer can be used to mix stiff-consistency concrete,
semi-stiff-consistency concrete, light weight aggregate concrete and so on.
Main technical parameters for JS500 Mini Concrete Mixer Factory:
Model |
JS500 |
|
Feed Capacity |
800L |
|
Discharge Capacity |
500L |
|
Maximum Productivity |
25m³/h |
|
Maximum Aggregate Size |
80/60mm |
|
Mixing Blades |
Rotation Speed |
35r/min |
Number |
7×2 |
|
Stirring Motor |
Type |
Y180M-4(B3) |
Power |
18.5kw |
|
Lifting Motor |
Type |
YEZ32-4 |
Power |
5.5kw |
|
Pump Motor |
Type |
65DWB35-5 |
Power |
1.1kw |
|
Average Rate of Hopper Movement |
0.3m/s |
|
Unload Material Height |
1500mm |
|
Overall Dimensions(Length*Width*Height) |
3000*2100*2800mm |
|
Operating Mode |
4260*3000*5380mm |
|
Weight |
4100kg |
|
Standard package for JS500 Mini Concrete Mixer Factory is nude packing,
but we could do as your requirement with plastic film covered or pallet protection.
As a professional exporter, our target is to serve worldwide clients with high-quality
products, greatreliability, devoted responsibility,professional services and honorable
credibility to meet customers' requirements in all aspects. We will supply you 24
hours a day and 7 days a week after-sale services.
Jiangsu Xincheng Construction Machinery&manufacturing Co.,Ltd is a really
factory and can provide different engineering tasks and manufacture ideal
construction machines with advanced technology, excellent quality and high-quality
service.
Our Advantages:
1. Trade directly with factory who has over 20 years' history.
2. Professional team.
Perfect quality.
Perfect service idea.
3. Competitive price.
4. We accept many kinds of payment & trade terms.
FAQ FOR JS500 Mini Concrete Mixer Factory
1,What about your Internatioanl Market?
We have established overseas projects in 28 countries.And we need your support to
introduce our high quality product and service to your honored company and country.
2,What are your main products?
Concrete Mixer(JZM Series,JZR Series,JZC Series,JS Series)
Concrete Batching Plant
Concrete Mixing Station
Batching Machine
Screw Conveyor
Cement Silo
3,What is your MOQ?
MOQ is 1set,anyway,special discounts will be given when ordering in large scale
4,What’s your payment terms?
You can pay by T/T,L/C or others
5,What about your lead time for concrete mixers?
Usually we have stock and can deliver at once,if not available in stock,it will take
about 10 working days to produce.
6,What’s the transportation method?
By Truck,Train or Sea
