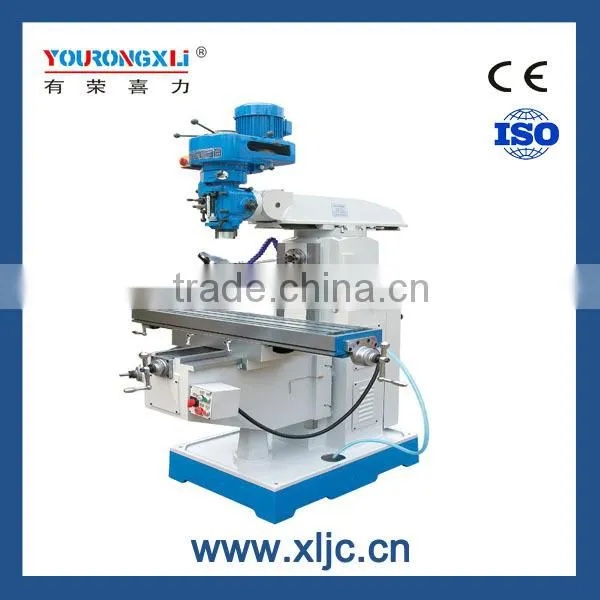

X6328E-1 Universal Milling/drilling Machine
US$ 5,000 - 10,000
MOQ: 1 Sheet
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
YOURONGXILI
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
X6325 Conventional Universal Bridgeport Style Milling MachineUS$ 5,000 - 10,000MOQ: 1 Set -
XL6336W Individual Servo Motor Drive Turret Mill/drills With Rotary TableUS$ 1,000 - 10,000MOQ: 1 Set
-
XQ6332W Light Bridgeport Milling/drilling Machine With Rotary TableUS$ 1,000 - 10,000MOQ: 1 Set
-
X6328E-1 Universal Bridgeport Style Milling/drilling MachineUS$ 5,000 - 10,000MOQ: 1 Sheet
-
X6328E-1 Universal Vertical Horizontal Mill/drillsUS$ 5,000 - 10,000MOQ: 1 Sheet
Condition
New
Place of Origin
Shandong, China
Brand Name
YOURONGXILI
Model Number
X6328E-1
Type
Universal
CNC or Not
Normal
Voltage
220V/380V
Power(W)
3000W
Dimension(L*W*H)
1850*1750*2250
Weight
1500kg
Certification
CE,ISO9001:2008
Warranty
12month
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Table size: 1270x280mm2.Travel XYZ: 800/420/420mm
3.Main motor power: 3000w
CE and ISO9001:2008
X6328E-1 Universal milling/drilling machine
| Specification | Unit | X6328E-1 |
| Table size | mm | 1270x280 |
| T-slots(N/W/D) | 3/14/70 | |
| Table travel(XYZ) | mm | 800/420/420 |
| Spindle speed range | rpm | V:80-5440, 16 steps or stepless |
| H:45-1350, 12 steps | ||
| Spindle taper | V:ISO30 or R8 | |
| H:ISO40 | ||
| Automatic feed of spindle | mm/r | 0.045/0.086/0.142 |
| Spindle travel | mm | 127 |
| Max swivel angle of spindle | right/left: 90; forward/back: 45 | |
| Distance between horizontal spindle and table | mm | 10-430 |
| Distance between vertical spindle and table | mm | 140-560 |
| Main motor power | V: 3HP; H: 3kw | |
| Overall size | mm | 1850x1750x2250 |
| Net weight | kg | 1500 |
