Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > Radial Arm Turret Milling Machine With Swivel Head for Metal Machining

Radial Arm Turret Milling Machine With Swivel Head for Metal Machining

Name: Radial Arm Turret Milling Machine With Swivel Head for Metal Machining
Brand: XILI
SKU: 106420813

Radial Arm Turret Milling Machine With Swivel Head for Metal Machining thumbnail-1

Radial Arm Turret Milling Machine With Swivel Head for Metal Machining photo-1

US$ 4,000 - 6,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

XILI

Contact Supplier Request Quote Chat Now

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details

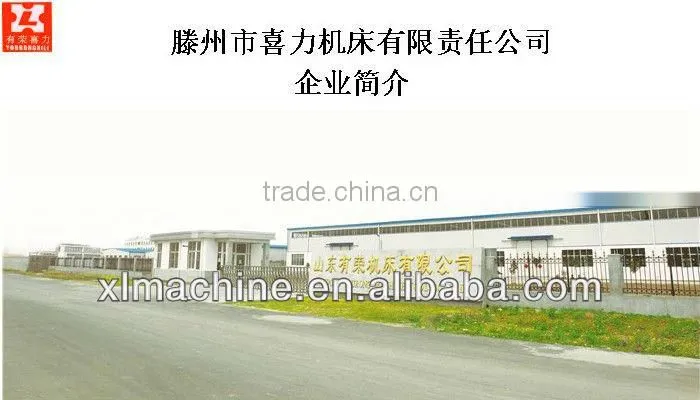

Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name XILI

Model Number X6128E

Type Universal

CNC or Not Normal

Voltage 380V

Power(W) 3000W

Dimension(L*W*H) 1850*1750*2250

Weight 1500KG

Certification ISO9001:2008

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Radial arm turret milling machine
Get the ISO9001:2008 Certification
High rigidity, heavy load
High speed milling head

Radial Arm Turret Milling Machine

Specification	Unit	X6128E
Table size	mm	1270280/1370300
T-slots(N/W/D)		3/14/70
Table travel(X/Y/Z)	mm	800/420/420
Spindle speed range	r/mm	V:80-5440,16 steps; H:45-1350,12 steps
Spindle taper		ISO40
Automatic feed of spindle	mm/r	0.045/0.086/0.142
Spindle travel	mm	127
Main motor power	kw	3
Overall size	mm	185017502250
Net weight	kg	1500

The machine is widely used in machining of plane or arbitrary angle plane, slotting, drilling, reaming, boring etc. The milling head can turn 45° forward back and 90° right left, the arm can rotate 180° horizontally. The spindle can work at a high speed, it has a large speed range, automatic feed function and overload protection device. Automatic feeder and DRO can be ordered according to the demand of clients. In conclusion, it is an ideal machine for metal machining.
