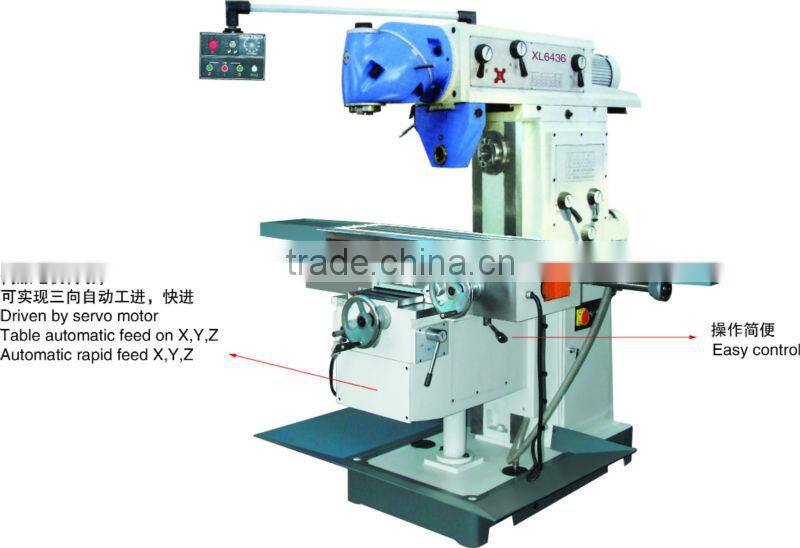

Universal Rotary Table Milling Machine

Name: Universal Rotary Table Milling Machine
Brand: YOURONGXILI
SKU: 106420327
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

YOURONGXILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name YOURONGXILI

Model Number XL6436

Type Universal

CNC or Not Normal

Voltage 220V/380V

Power(W) 5500W

Dimension(L*W*H) 1800*2100*2000

Weight 2685kg

Certification CE

Specifications

Driven by servo motor
Table automatic feed on X,Y,Z
Automatic rapid feed X,Y,Z

Specifications	Unit	XL6436	XL6436C	XL6436CL
Table size	mm	1325×360		1600×360
Table travel (X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450
Table feed(X/Y/Z)	mm/min	30~750/20~500/15~375
Spindle taper		7:24 IS050 (H) 7:24 IS040 (V)
Arm travel	mm	550
Distance between spindle nose and table surface	mm	196-656
Distance between horizontal nose and table surface	mm	20-480	20-470
Distance between spindle axis and arm surface	mm	245
Spindle speed range	r.p.m	12steps 60-1750 (V) 12steps 60-1800 (H)
T-slots(NO./width/pitch)	mm	3/18/80
Main motor power	Kw	5.5 (H) 4 (V)
3 to feed Ac servo motor torque	N.m	10
Overall size	mm	1800×2100×2000	2245×2100×2000	2520×2100×2000
Net weight	kg	2685	2750	2800
