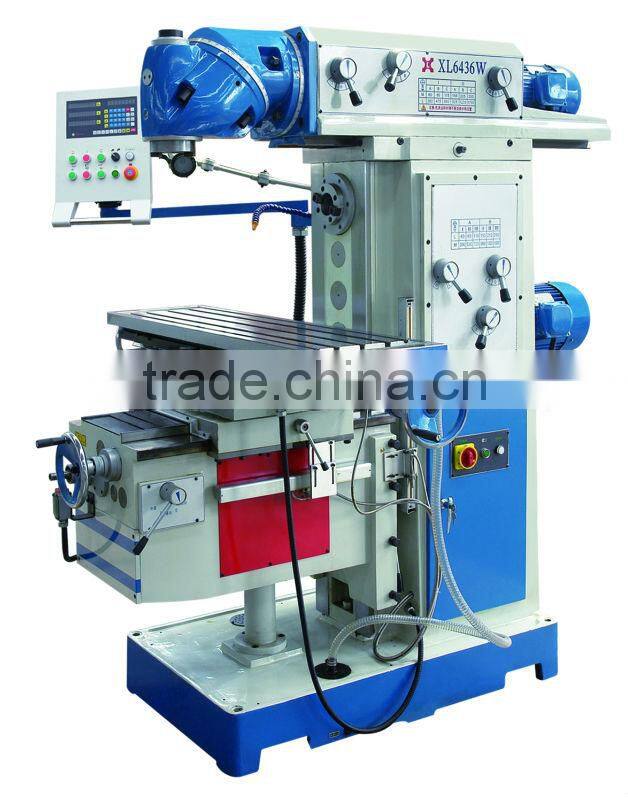

Vertical and Horizontal Rotary Table Milling Machine XL6436w

Name: Vertical and Horizontal Rotary Table Milling Machine XL6436w
Brand: YOURONGXILI
SKU: 106420271
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

YOURONGXILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name YOURONGXILI

Model Number XL6436W

Type Universal

CNC or Not Normal

Dimension(L*W*H) 1800*2100*2000

Weight 2885KG

Warranty 12 MONTHS

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Driven by Ac servo motor
Table automatic feed on X,Y,Z
Automatic rapid feed X,Y,Z

Specification	Unit	XL6436W
Table size	mm	1325×360
Table travel(X/Y/Z)	mm	750/310/390
Max. swivel angle of table		45°
Table feed step	grade	8
Table feed range(X/Y/Z)	mm/min	30-750/20-500/15-375
Table rapid speed X	mm/min	1200
Table rapid speed Y	mm/min	800
Table rapid speed Z	mm/min	600
Spindle hole taper		(V)7:24, IS050; (H)7:24, IS050
Arm travel	mm	550
Distance between horizontal spindle center line and table surface	mm	(H)30-420
Distance between spindle nose and table surface	mm	(V)200-590
Distance between spindle center line and arm surface	mm	200
Spindle speed range	rpm	(V)12steps, 60-1750; (H)12steps, 60-1800
T-slots(NO./width/pitch)	mm	3/18/80
Main motor power	Kw	(H)5.5; (V)4
Overall size	mm	1800×2100×2000
Net weight	kg	2700
