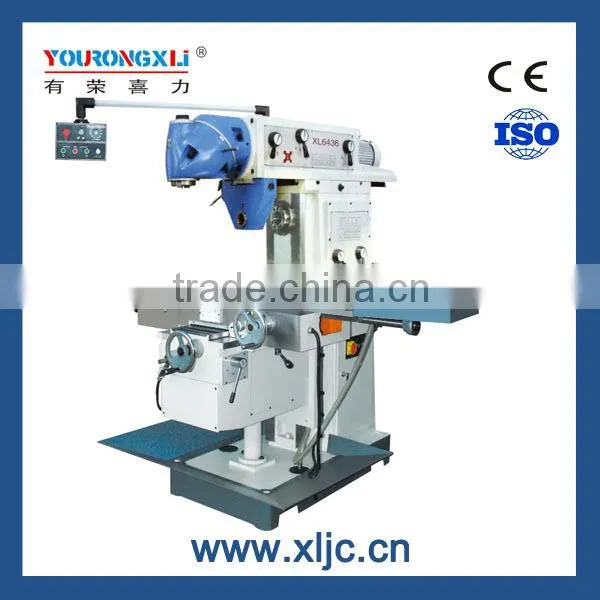

XL6436CL Larger Robust Ram Milling Machine Price

Name: XL6436CL Larger Robust Ram Milling Machine Price
Brand: YOURONGXILI
SKU: 106419785

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

YOURONGXILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name YOURONGXILI

Model Number XL6436CL

Type Universal

CNC or Not Normal

Voltage 380v

Power(W) 5500

Dimension(L*W*H) 2520*2100*2000

Weight 2800KG

Certification ISO & CE

Warranty 12 MONTHS

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Driven by Ac servo motor
2. Table automatic feed on X,Y,Z
3. Automatic rapid feed X,Y,Z

XL6436CL larger robust ram Milling Machine price

Specifications	Unit	XL6436	XL6436C	XL6436CL
Table size	mm	1325×360		1600×360
Table travel (X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450
Table feed(X/Y/Z)	mm/min	30~750/20~500/15~375
Spindle taper		7:24 IS050 (H) 7:24 IS040 (V)
Arm travel	mm	550
Distance between spindle nose and table surface	mm	196-656
Distance between horizontal nose and table surface	mm	20-480	20-470
Distance between spindle axis and arm surface	mm	245
Spindle speed range	r.p.m	12steps 60-1750 (V) 12steps 60-1800 (H)
T-slots(NO./width/pitch)	mm	3/18/80
Main motor power	Kw	5.5 (H) 4 (V)
3 to feed Ac servo motor torque	N.m	10
Overall size	mm	1800×2100×2000	2245×2100×2000	2520×2100×2000
Net weight	kg	2685	2750	2800
