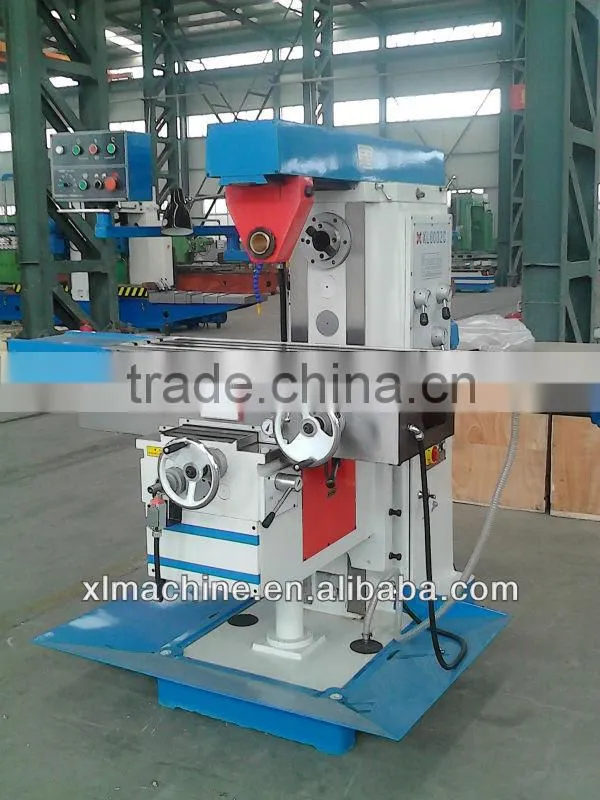

Knee-type Horizontal Milling Machine XL6032
1.Rotary table can be ordered at special request
2.Driven by AC Servo Motor
3.Table automatic feed on X,Y,Z
4.Automatic rapid feed X,Y,Z
Specification of Knee-type Horizontal Milling Machine
Specification |
Unit |
XL6032 |
XL6032C |
XL6032CL |
Spindle taper |
- |
7:24 ISO50 |
||
Distance between spindle nose and table |
mm |
20-480 |
20-470 |
|
Distance from spindle axis to arm |
mm |
175 |
||
Spindle speed range |
- |
12steps 60~1800r.p.m |
||
Table size |
mm |
1325X320 |
1600X320 |
|
Table travel(X/Y/Z) |
mm |
750/320/460 |
1100/320/450 |
1300/320/450 |
Table feed(X/Y/Z) |
mm/min |
30-750 / 20-500 / 15-375 |
||
Table rapid speed (X/Y/Z) |
mm/min |
1200/800/600 |
||
T-slots(NO:/width/pitch) |
mm |
3/18/70 |
||
Arm travel |
mm |
500 |
||
Main motor power |
kw |
5.5 |
||
Torque of X/Y/Z axis AC servo motor |
N.m |
10 |
||
Overall size |
mm |
1800X2100X1870 |
2245X2100X1870 |
2520X2100X1870 |
Net weight |
kg |
2400 |
2465 |
2510 |
Optional ±45° Rotary Table
Model |
Table size |
Max table travel - X/Y/Z |
Max rotary angle of table |
Distance between spindle center line and table surface |
XL6132 |
1325×320 |
750/320/400 |
±45° |
20-420 |
XL6132C |
1100/320/400 |
|||
XL6132CL |
1600X320 |
1300/320/400 |
Certificate of Knee-type Horizontal Milling Machine
Packaging and Shipping
Packaging : Servo Motor Milling machine covered with plywood case.
Shipping : 20 days after receiving the deposit
Company Information
It covers an area of 70000 square meters, with the building zone about 30000 square meters, including Tengzhou XILI Machine Tool Co.,Ltd. Shandong YOURONG Machine Tool Co.,Ltd. There are more than 800 workers with a technical center of provincial level.It is one of the biggest manufacturers of milling machines in south of Shandong Province.
The main products have developed to 7 series in recent years: CNC Planer-type machining center , CNC vertical machining center, CNC horizontal machining center series, CNC milling machine series, Knee-type milling machine series, planer-type milling machine , Single-face milling machine series,Vertical drilling machine series, Drilling and Milling machine series. We passed ISO9001 in 2002, and CE in 2007.
"Customers first, quality first" wich is the belief we always seek.
