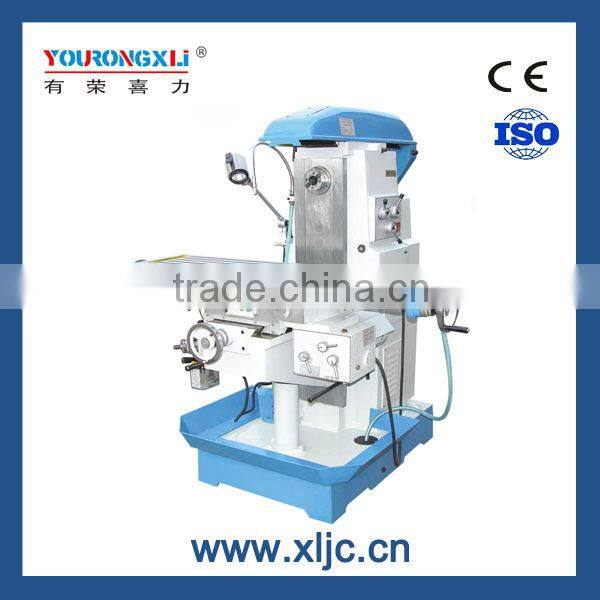

X6128A Manual Universal Milling Machine

FOB Price

USD $1 - $3 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Place of Origin:	Shandong, China	Brand Name:	Xili
Model Number:	X6128A	Type:	Horizontal	CNC or Not:	Normal
Voltage:	220/380	Power(W):	3	Dimension(LWH):	175014501750
Weight:	1350	Certification:	CE ISO9001	Warranty:	12 months
After-sales Service Provided:	Overseas service center available

Manual Universal Milling Machine X6128A

1.Hardened and ground guideways

2.Table automatic feed on X,Y,Z direction by gear driven

3.ISO9001,CE Certificate

Specification of Manual Universal Milling Machine

Specification	Unit	X6128A	X6128C
Table size	mm	1200×280
T-slots(NO./Width/Pitch)	mm	3/14/70
Table travel(X Y Z)	mm	620/260/400
Spindle speed range	r/min	45-1350(12steps)
Spindle taper		ISO40
Table feed(X Y)	mm/min	13-265 (8steps)	30-855 (8steps)
Table feed(Z)	mm/min	Manual	9-270 (8steps)
Distance between horizontal spindle and arm surface	mm	150
Distance between horizontal spindle and table surface	mm	135-535	110-510
Main motor power	kw	3
Overall size	mm	1750×1450×1750
Net weight	kg	1350	1380
