CNC Drilling Machine
1.Suitable for batch drilling on small and medium size plate, disc or shell type and other complex workpieces.
2.High accuracy, high efficiency, high automation and high flexibility.
Main feature of CNC Drilling Machine
1. ZK5140B and ZK5140B-1 vertical CNC drilling machine are universal drilling machine.the max drilling diameter is 40mm.
2.ZK5150B and ZK5150B-1 vertical CNC drilling machine are universal drilling machine.the max drilling diameter is 50mm.
3. This machine also can enlarge hole,drill deep hole,tapping,boring and etc. except drilling hole.
4. This series machine have many advantages,such as high efficiency, good rigid,high precision,low noise, wide speed range..the machine which have cross table ,the table can manual feeding on cross ,longitudinal and lifting.
Specification of CNC Drilling Machine
Specification |
Unit |
ZK5140 |
ZK5150 |
Table size |
mm |
1000X545 |
|
Area of worktable |
mm |
850X400 |
|
Max drilling diameter |
mm |
φ40 |
φ50 |
T-slot width/quantity |
mm |
18/3 |
18/3 |
Spindle hole taper |
|
MT #4 |
MT #5 |
Spindle speeds |
r/min |
31.5-1400/12 steps |
|
Power of spindle motor |
kw |
3 |
|
Vertical travel of drilling head (manual) |
mm |
360 |
|
Travel(X/Y/Z) |
mm |
850/400/240 |
|
Distance from spindle nose to worktable |
mm |
100-700 |
65-665 |
Distance from spindle center line to column |
mm |
335 |
|
Rapid travel rate X/Y/Z |
m/min |
15/15/3.5 |
|

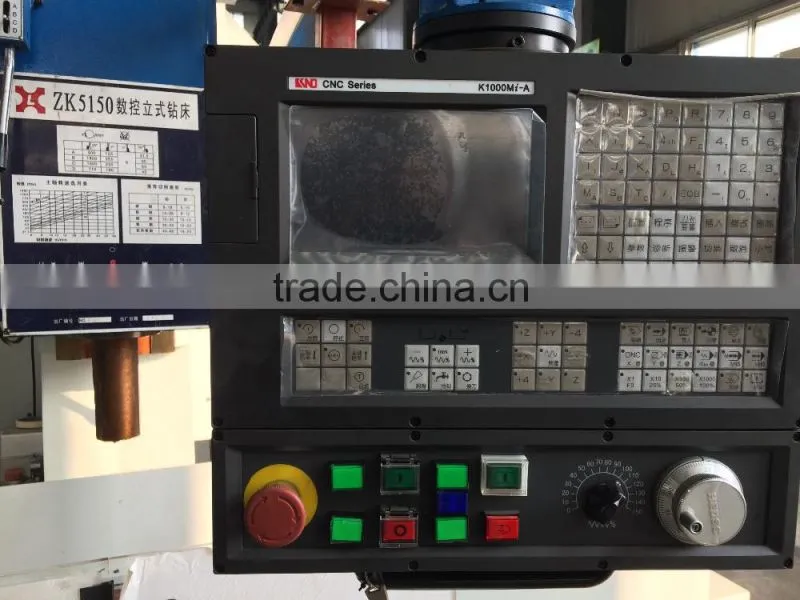

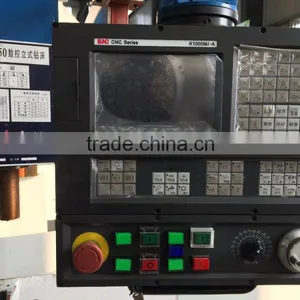

CNC system |
|
KND system |
|
Max torque of spindle |
N.m |
350 |
|
Max feed resistance |
N |
10000 |
12000 |
Positioning accuracy |
mm |
±0.025 |
|
Repositioning accuracy |
mm |
±0.015 |
|

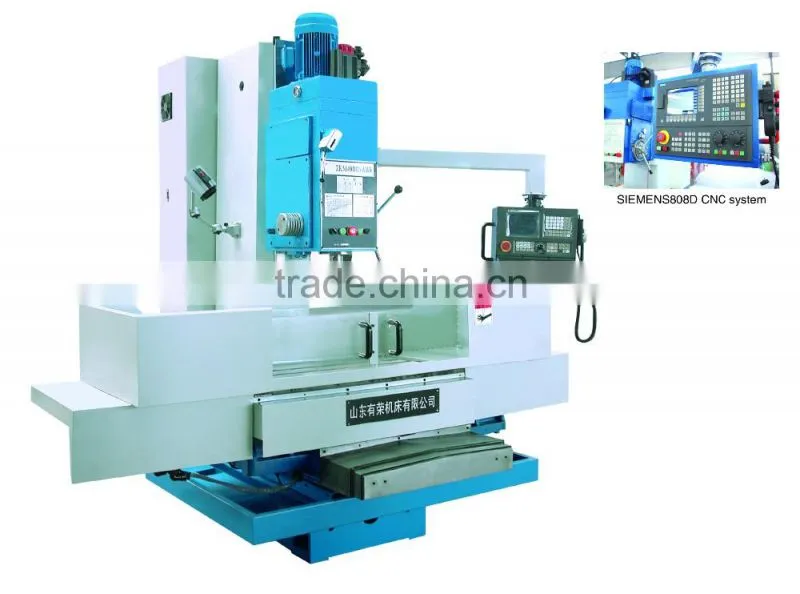

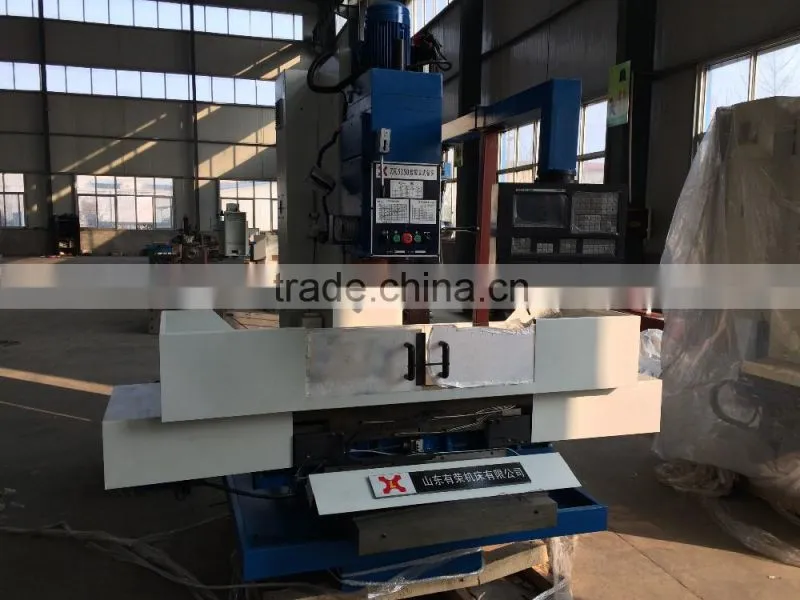

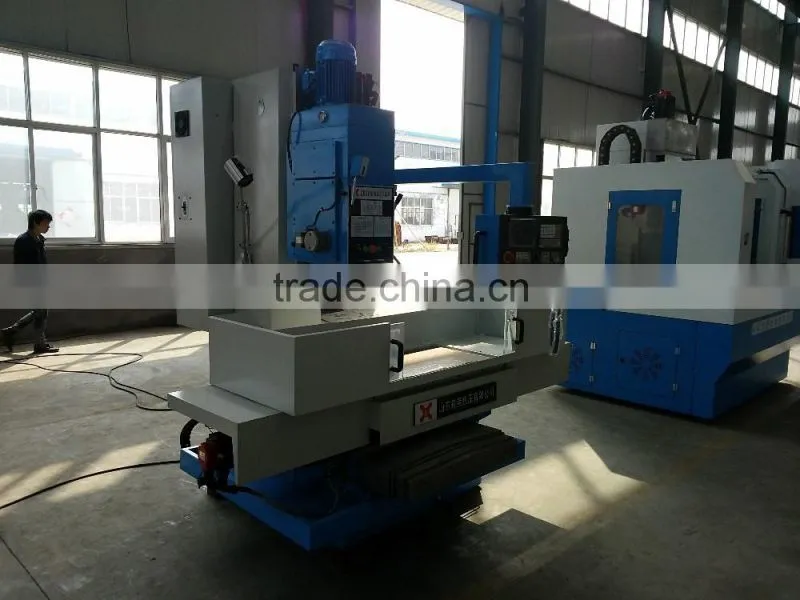

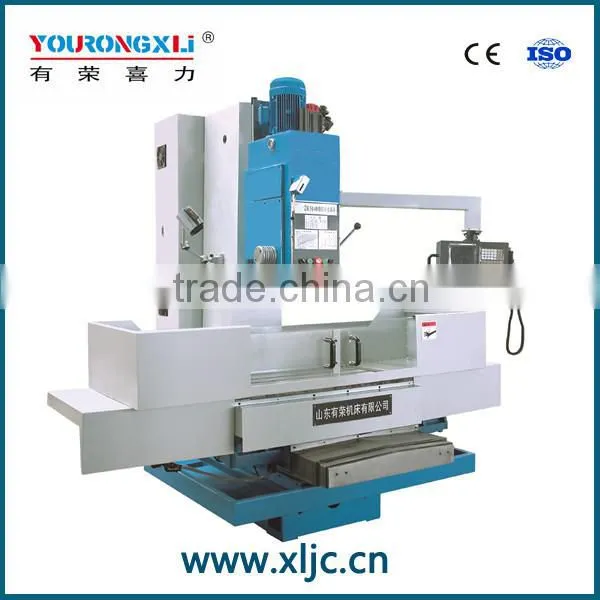

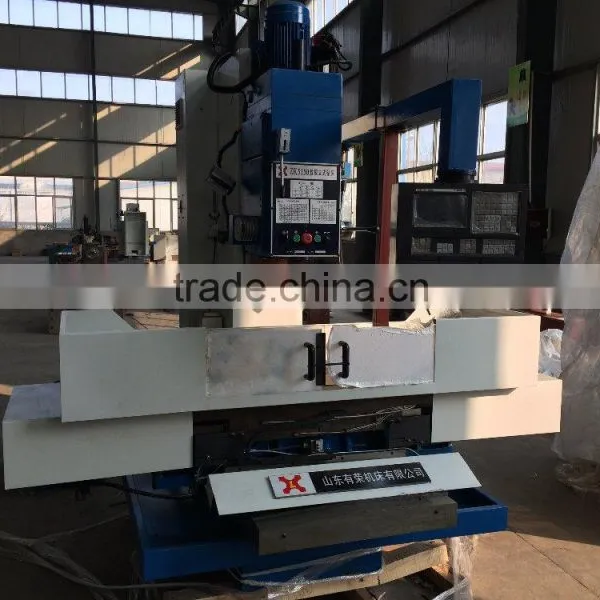

Picture of CNC Drilling Machine
Packaging : CNC drilling machine covered with plywood case.
Shipping : 30 days after receiving the deposit
Cetificate
