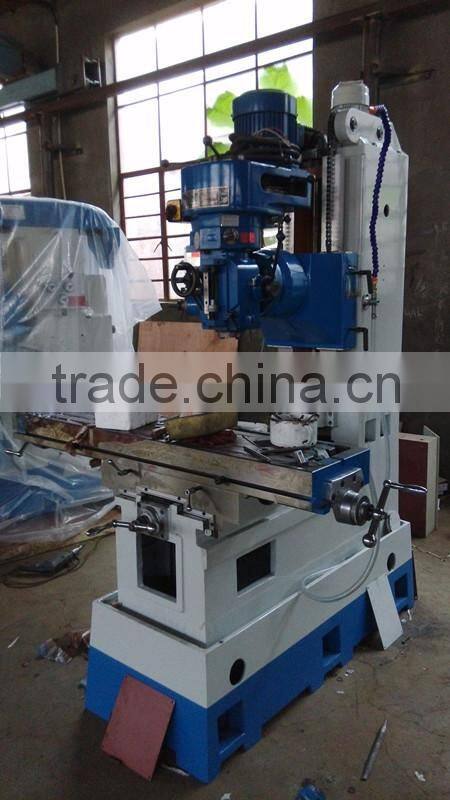

X7130 China Universal Bed Type Milling Machine

Name: X7130 China Universal Bed Type Milling Machine
Brand: Xili
SKU: 106415149
Availability: InStock

US$ 1 - 9 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Xili

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Xili

Model Number X7130

Type Vertical

CNC or Not Normal

Voltage 220/380

Power(W) 5.5

Dimension(L*W*H) 1780*1460*2175

Weight 2050

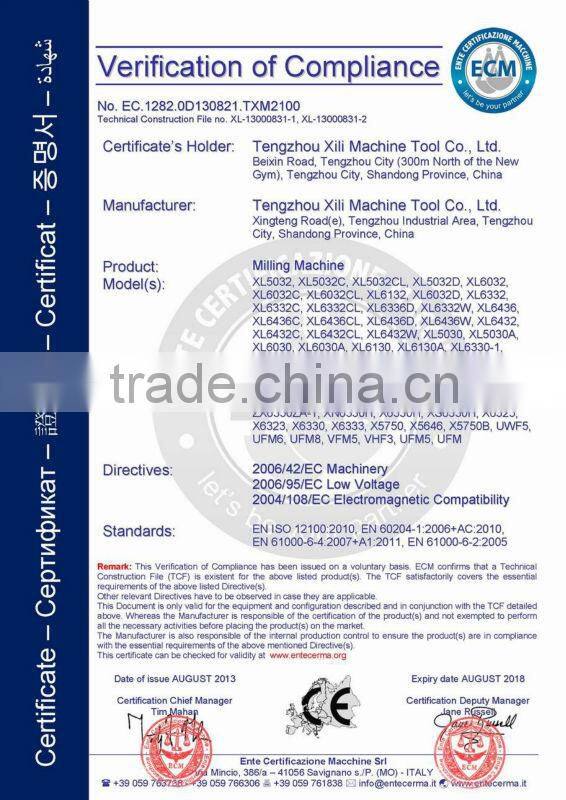

Certification CE

Warranty 12 months

After-sales Service Provided Overseas service center available

Specifications

Bed type milling machine
1.High speed milling head
2.Optional in finite milling head
2.capable of heavy load cutting

Bed type Milling Machine

1.Driven by Gear Power

2.Table automatic feed on X,Y,Z

3.Automatic rapid feed X,Y,Z

4.Optional power feed device

5.Motor: 5 kw

6.Easy control

7.Equipped with manual lubricating device, the lubrication on the lead screw and guideway

8.Cast iron with high precision, long service life

Specification of bed type milling machine

Specification	Unit	X7130
Table size	mm	1370X300	1500X300
T-slots (No./width/pitch)	mm	3X16X63
Table Travel---X	mm	880	1000
Table Travel---Y	mm	510
Travel---Z	mm	450
Distance between spindle nose and table surface	mm	150-600
Rapid speed of table---Z	mm/min	1483
Spindle taper	---	ISO40
Travel of spindle sleeve	mm	127
Spindle feed speed	mm/rev	0.04/0.08/0.15
Spindle speed range	r/min	43-3225(variable)
	r/min	65-4660(16steps)
Main motor	HP	5
Overall size	mm	1780X1460X2175	1900X1460X2175
Net weight	kg	1750	2100
