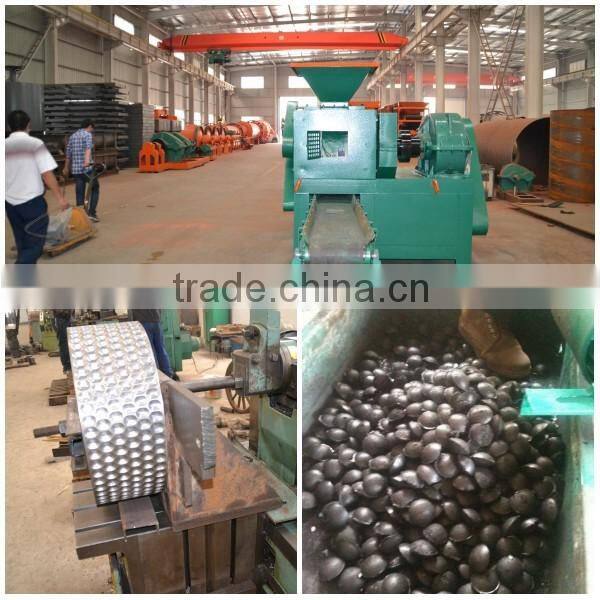

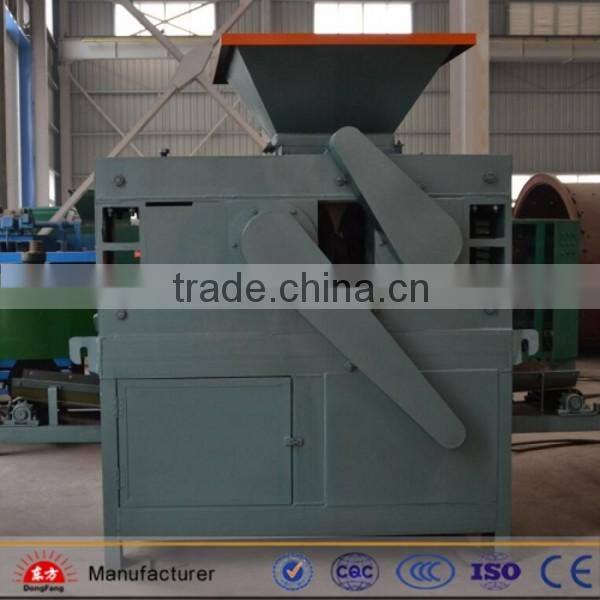

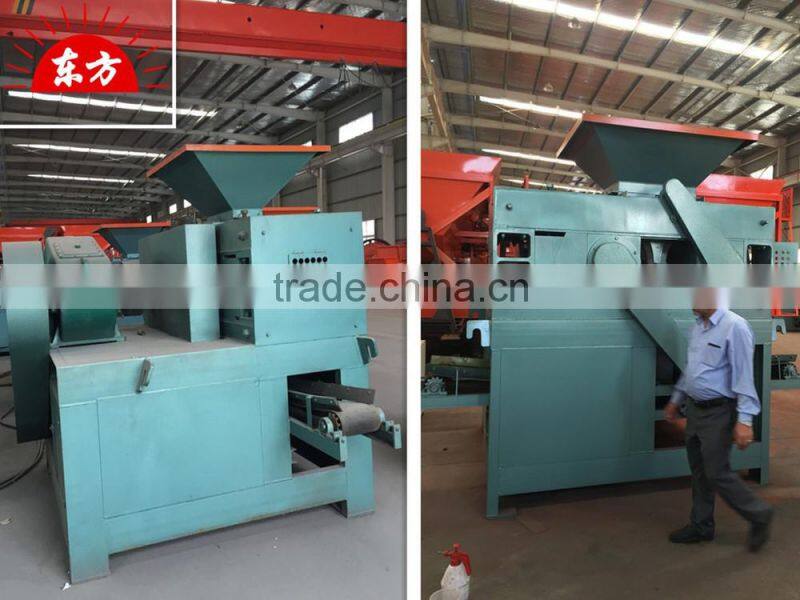

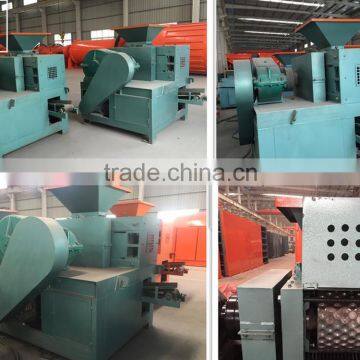

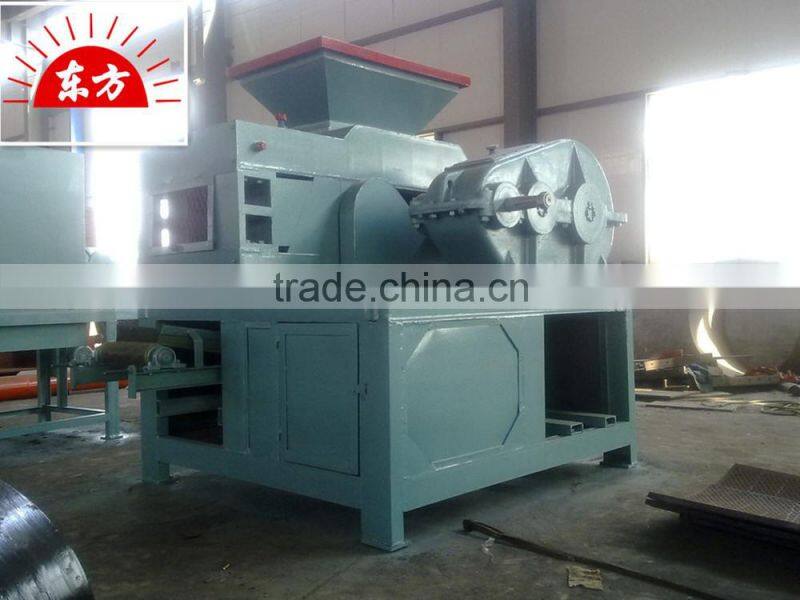

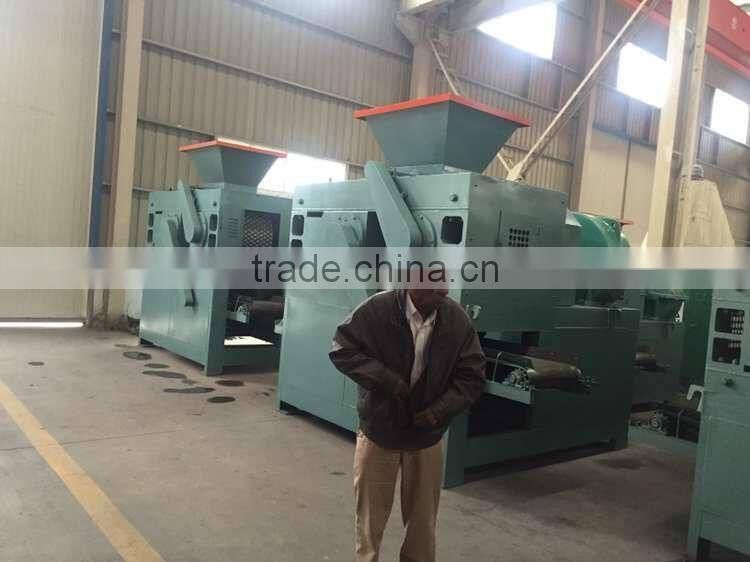

Mechanical press briquette making machine
Brief introduction of lime powder briquette machine:
Briquette ball press line machine for making charcoal briquettes could make coal
powder one - time molding, with high productivity, good hardness, has been
come into used in many power plant, coal washery, coal briquette molding plant,
has good effects.
Raw materials of lime powder briquette machine:
Coal and charcoal powder, zinc oxide, lead oxide, calcium chloride, calcium phosphate.
High test bleaching powder, cryolite, chemical inhibitor, silica, Isophthalodinitrile etc.

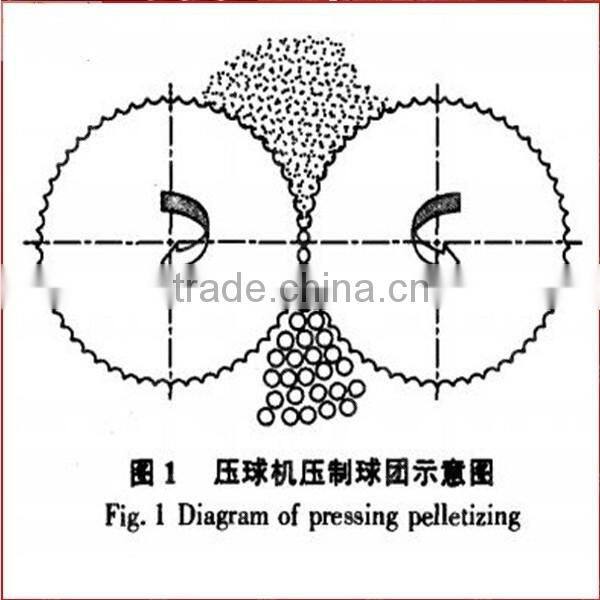

Working Principle of lime powder briquette machine:

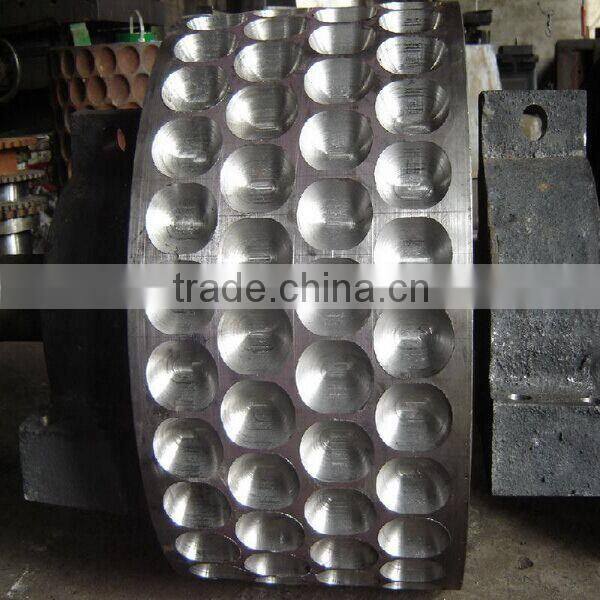

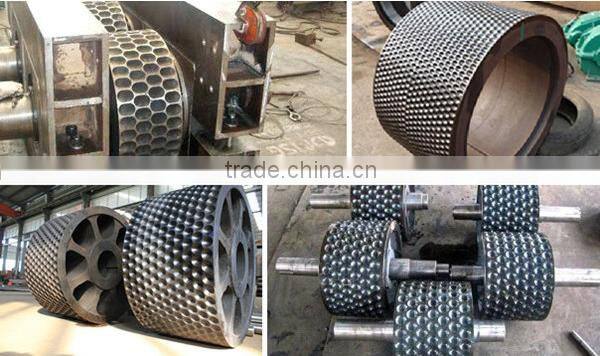

Pressure ball machine is powered by electromagnetic spped motor, then via V-belt pulley, reducer and coupling transmit to main shaft. There is also a pair of open gear ensure two roller shaft synchronous movement, in which the wedges withstand the passive bearings. The material is sent into the hopper uniformly by quantitative feeding equipment, and then evenly into the middle of the roller. Then the roller does reverse constant velocity and make the ball into off running state. When the ball material go through the roller center line, the ball drops down.
Operation of lime powder briquette machine:
1. If your raw material is big block, you should choose a crusher.
2. If your raw material is with high moisture (higher than 12%), you should choose
a dryer. If you prefer to use dry powder type briquette machine, the moisture should
be less than 5%, also based on materials’ performance.
3. Generally, it is better to add some binder/adhesive into the raw material. If you pre
-fer to use dry powder type briquette machines, generally, no need binder.
4. About belt conveyor, you can buy from us, also can make by yourself. We would
like to supply the detail drawing of conveyor for you.

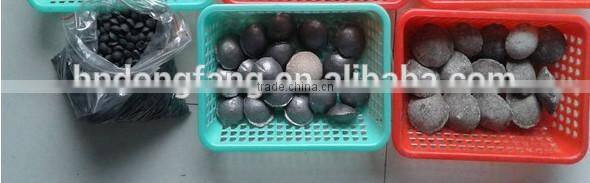

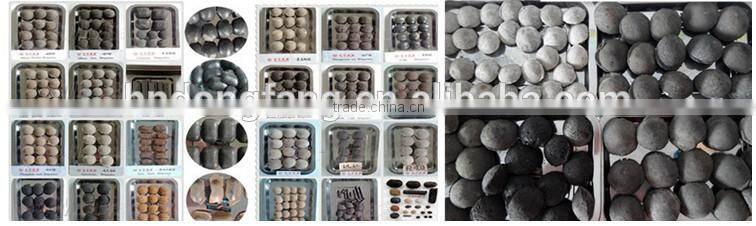

5. The final briquettes can be dried under the sun or through mesh belt dryer and chain
plate dryer.
Technical Parameters of lime powder briquette machine:
Type | Capability(t/h) | Roll Diameter(mm) | Roller Surface Pressure (t/cm) | Roll Speed(r/min) | Power(Kw) | Reducer |
WLXM-290 | 1.5-2 | 290 | 1 | 15-17 | 5.5 | ZQ300 |
WLXM-360 | 2.5-3.5 | 360 | 1 | 15-17 | 7.5 | ZQ350 |
WLXM-400 | 4-5 | 400 | 1 | 15-17 | 11 | ZQ400 |
WLXM-430 | 5-7 | 430 | 1 | 15-17 | 11 | ZQ400 |
WLXM-500-1 | 6-8 | 500 | 1-2 | 15 | 15 | ZQ500 |
WLXM-500-2 | 8-10 | 500 | 1-2.5 | 15 | 22 | ZQ500 |
WLXM-650 | 10-15 | 650 | 1-2.5 | 15 | 30 | ZQ650 |
WLXM-750 | 15-20 | 750 | 1-2.5 | 13 | 30 | ZQ750 |
WLXM-850 | 25-30 | 850 | 1-2.5 | 13 | 37-45 | ZQ850 |
WLXM1000-1 | 35-40 | 1000 | 1-2.5 | 12 | 45-75 | ZSY-355 |
WLXM1000-2 | 35-45 | 1000 | 2-2.5 | 10 | 75-90 | ZSY-400 |
WLXM1200 | 45-50 | 1200 | 2-3 | 10 | 132 | ZSY-500 |
Remarks: Based on different materials, briquettes size, capacity, the technical parameter is adjustable. | ||||||

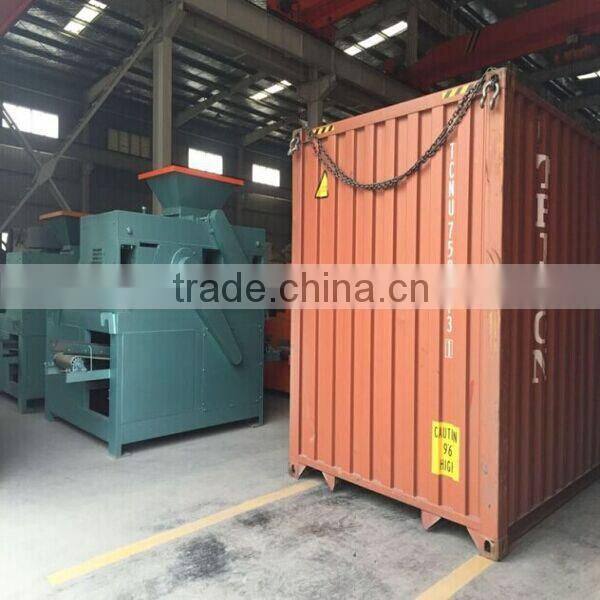

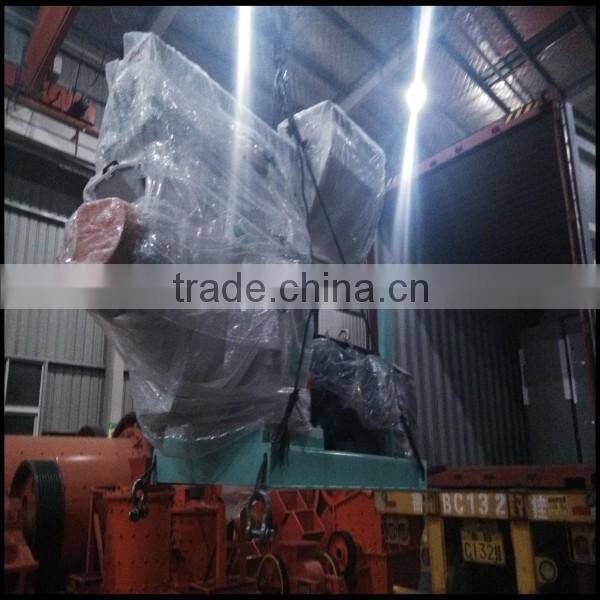

Delivery:
About Our Company:

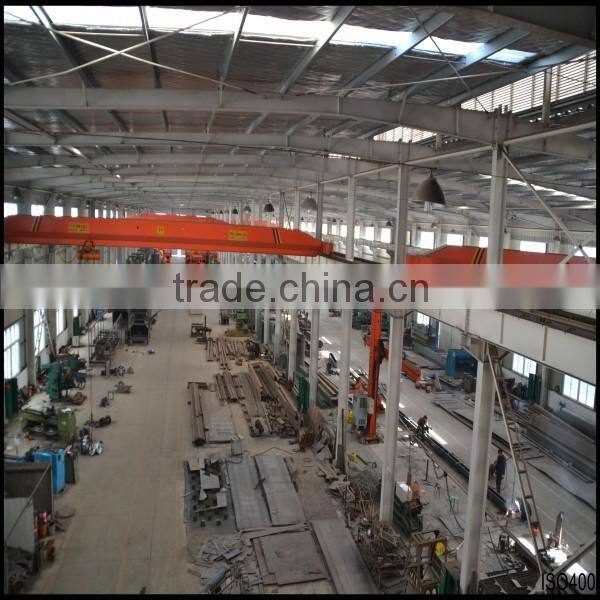

Henan Dongfang Group is a manufacturing factory with rich experiences more than 20 years. It covers more than 60,000 square meters,180 sets of main processing equipments,more than 1,000 employees. Our factory is specialized in many kinds of machines, such as briquetting machine, crusher machine, Ball mill, pellet machine,dryer machine equipments, heating sources and so on.
Our products are selling to many countires like Amercia, Colombia, Sri Lanka, Russia, Pakistan, Nigeria, Saudi ect. and get a very good reputation.
Choosing us is your best choice!
In order to saving your time, please send us the informations as bellow:
1. What's the raw material?
2. The moisture and size of raw material?
3. Capacity you need?
4. The shape and size of the final product you prefer?
Contract Us:
If you want to know more about us and our products,please contract us,and we'll be very glad to serve you!
HENAN DONGFANG MACHINERY Co.,LTD.
Skype: dfmachine01
Tel: +86-18317887657
website:
Welcome to visit our factory~
