Home > Manufacturing & Processing Machinery > Agricultural Machinery > Oil Presser > Automatic Cold Press Oil Machine

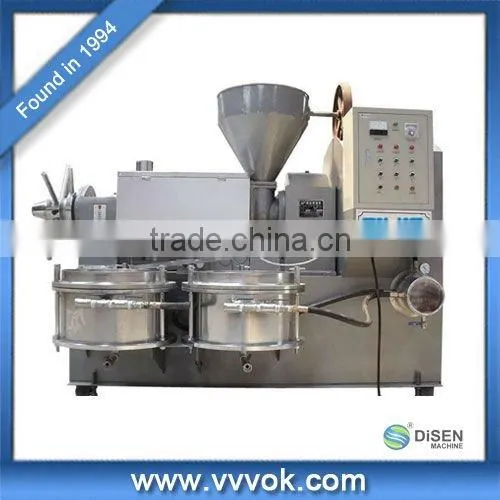

Automatic Cold Press Oil Machine

Name: Automatic Cold Press Oil Machine
Brand: Disen
SKU: 106404009
Availability: InStock

Automatic Cold Press Oil Machine thumbnail-1

Automatic Cold Press Oil Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

Disen

Contact Supplier Request Quote Chat Now

Guangzhou Disen Wenheng Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Guangdong, China

Brand Name Disen

Model Number 6YL 130A

Product Description

6YL-130A new fully automatic oil press machine
The family unit a part of the automatic control heating crushing part of the adjustment of five parts of

parts, transmission parts and vacuum oil filter

Automatic oil press machine structure and working principle:

(A)Structure
The family unit a part of the automatic control heating crushing part of the adjustment of five parts of

parts, transmission parts and vacuum oil filter

Automatic control systems: air switch, AC contactor, temperature controller, automatic circuit protection

devices and other components
Heating squeeze in part by the heater, screw pressed and pressed bars, body assembly
The transmission part of the spindle and the gear box, pulleys, motors, wheels, and
The adjustment in part by the adjustment screw to adjust the nut, sub-shank, locknut
The vacuum oil filter in part by the assembly of the vacuum pump, filter drums pipeline

(B)working principle
Passed to the spindle, power deceleration virgin snails mounted on the spindle with the rotation, the thread

between the oil constantly moving forward, the space between the virgin bore the virgin snails gradually

reduced the density of the fuel increases, and thus the pressure is gradually increased big. Squeezing

process, the machine automatically Department of force day heat, automatic temperature control device to

increase the body hosts temperature, thereby reducing the labor intensity of wear and tear of the body,

labor, power, fuel particles, fuel and the friction between the parts, resulting in a heat. This constitutes

the pressure on the oil extraction process, heat the two elements, tissue damage and fuel oil overflow from

the oil line, and cake from the cake head cake port was introduced. When spilled oil into the filter barrel

above the oil pan, vacuum pump air out of the barrel. The formation of negative pressure barrel oil through

the filter cloth, being drawn into the barrel, while diesel was isolated in the cloth above, this time is

pure oil.

(C) parameters:
Project name: 6YL-130A-type screw press
Yield (tons / day): 9-12
Power (KW): 18.5
Weight (KG): 1350 kg
Volume (MM): 2600X1700X1950mm

Automatic series oil press machine using the latest technology, high quality steel, carefully manufactured, easy to operate, vacuum filter, the oil rate, the purity of oil. Suitable for crushing sesame, soybean, peanut,

rapeseed, cottonseed, tung oil seed, seed, the Su seed, sunflower, castor beans, almonds, walnuts and other oil crops, can also be used for other oil cold, heat processing.

Product Images

successful cases

ANYANG 50 TPD Pepper Project Anyang daily processing 50 tons of pepper project	MALASIA 300 TPD Palm Project Malaysia daily processing 300 tons of palm project

DANCHENG 300 TPD Rapeseed Project Dancheng daily processing 300 tons of rapeseed Engineering	XINXIANG 200 TPD Cotton Seed Project Xinxiang daily processing 200 tons of cottonseed Engineering

Product Related Information

Benefits comparison:
Advanced technology: reliable performance, simple operation, easy maintenance
High rate of oil: the optimized design, to improve the oil yield
Energy conservation: The new gear to improve the transmission efficiency
Provincial industrial hoist and auxiliary facilities such as: with the matching can save manpower
Use: can be adapted to the most pressing of the oil-bearing crops
Oil is pure: vacuum filtration residue to protect the purity of the oil
Small footprint: integrated design, saving equipment room for maneuver
