Help CenterHigh Precision Spectra Solvent Printer
Related Products
| RS-640 | RS-540 | ||
|---|---|---|---|
| Printing technology | Piezoelectric inkjet | ||
| Media | Width | 259 to 1,625 mm (10.2 to 64 in.) | 259 to 1,371 mm (10.2 to 54 in.) |
| Thickness | Maximum 1.0 mm (39 mil) with liner | ||
| Roll outer diameter | Maximum 210 mm (8.3 in.) | ||
| Roll weight | Maximum 40 kg (88 lb.) [30kg (66 lb.) when take-up system used.] | Maximum 30 kg (66 lb.) | |
| Core diameter | 50.8 mm (2 in.) or 76.2 mm (3 in.) | ||
| Printing width *1 | Maximum 1,615 mm (63.6 in.) | Maximum 1,361 mm (53.6 in.) | |
| Ink cartridges | Types | R-oland ECO-SOL MAX Ink | |
| Capacity | 220 cc or 440 cc | ||
| Color | Four colors (cyan, magenta, yellow, and black) | ||
| Printing resolution (dots per inch) | Maximum 1,440 dpi | ||
| Distance accuracy *2 *3 | Error of less than ±0.3% of distance traveled, or ±0.3 mm, whichever is greater | ||
| Media heating system *4 | Print heater, setting range for the preset temperature: 30 to 45°C (86 to 112°F) Dryer, setting range for the preset temperature: 30 to 50°C (86 to 122°F) | ||
| Connectivity | Ethernet (10BASE-T/100BASE-TX, automatic switching) | ||
| Power-saving function | Automatic sleep feature | ||
| Power requirements | AC 100 to 120 V ±10%, 7.8 A, 50/60 Hz or AC 220 to 240 V ±10%, 4.0 A, 50/60 Hz | AC 100 to 120 V ±10%, 7.6 A, 50/60 Hz or AC 220 to 240 V ±10%, 3.9 A, 50/60 Hz | |
| Power consumption | During operation | Approx. 1030 W | Approx. 1020 W |
| Sleep mode | Approx. 14 W | Approx. 14 W | |
| Acoustic noise level | During operation | 63 dB or less | |
| During standby | 44 dB or less | ||
| Dimensions | With stand | 2,570 (W) x 740 (D) x 1,103 (H) mm (101.2 (W) x 29.1 (D) x 43.4 (H) in.) | 2,310 (W) x 740 (D) x 1,103 (H) mm (90.9 (W) x 29.1 (D) x 43.4 (H) in.) |
| With ink-cartridge tray and stand | 2,570 (W) x 1,000 (D) x 1,103 (H) mm (101.2 (W) x 39.4 (D) x 43.4 (H) in.) | 2,310 (W) x 1,000 (D) x 1,103 (H) mm (90.9 (W) x 39.4 (D) x 43.4 (H) in.) | |
| Weight (with stand) | 133 kg (293 lb.) | 122 kg (269 lb.) | |
| Environmental | Power on | Temperature: 15 to 32°C (59 to 90°F) (20°C [68°F] or more recommended),humidity: 35 to 80%RH (non-condensing) | |
| Power off | Temperature: 5 to 40°C (41 to 104°F), humidity: 20 to 80%RH (non-condensing) | ||
| Accessories | Stand, power cord, media clamps, media flanges, replacement blade for separating knife, cleaning kit, software RIP, User's Manual, etc. | ||
|
*1 The length of printing is subject to the limitations of the program. *2 Using Roland specified media, print travel of 1m, temperature: 25°C (77°F), humidity: 50%RH *3 Not assured when the print heater or dryer is used. *4 Warm-up is required after powerup. This may require 5 to 20 minutes, depending on the operating environment. The preset temperature may fail to be reached depending on the ambient temperature and media width. |
|
|
| Packed With Our Most Advanced Features |
|

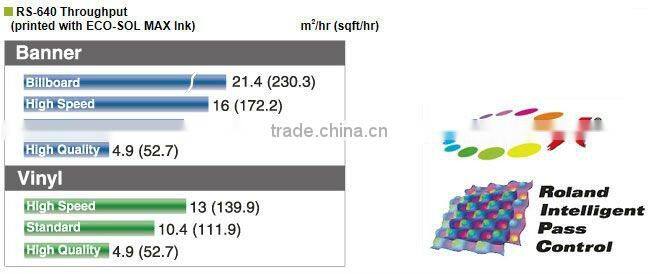

The VersaArt RS-640 and RS-540 ECO-SOL MAX® were engineered to give your business a competitive edge, taking full advantage of Roland ’s leadership technology in wide-format inkjet printing. Explore profitable new applications ranging from high quality indoor design proofs, photographic reproductions and posters to stunning outdoor banners, signs and vehicle graphics—all produced on a single device. VersaArt prints reflect the highest image quality thanks to Roland Intelligent Pass Control® technology, a unique three-dimensional ink firing system that precisely controls droplet size and placement for exceptionally smooth results every time. Choose from a wide variety of media including popular new low-cost fabrics for soft signage and textiles.
|
| Powerful Productivity Tools |
|

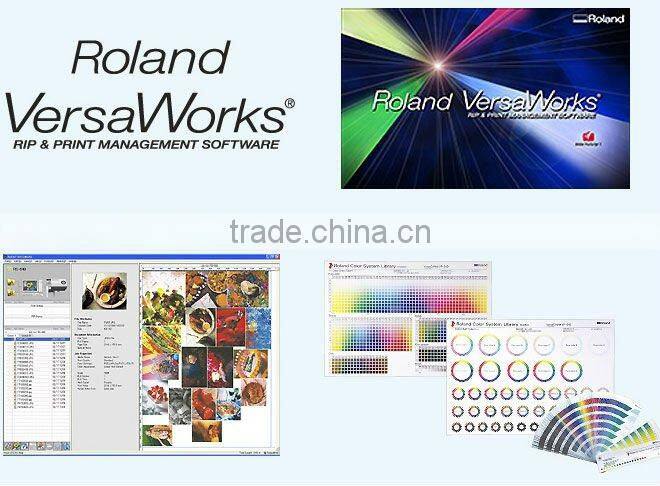

Built on the latest Adobe PostScript Engine, Roland VersaWorks® professional RIP software supports Roland Intelligent Pass Control® technology for flawless image quality at the highest print speeds. In addition to advanced cropping, tiling and nesting options, VersaWorks includes the Roland Color System for precision spot color matching and an estimation function that records the ink usage and print time for each graphic. VersaWorks also includes Variable Data Printing, the Max Impact ™ Preset for richer color contrast, embedded ICC profile support, ink level adjustment tools and software proofing capabilities. VersaWorks seemlessly works with your favorite design software, including Adobe Illustrator, Photoshop, InDesign and CorelDRAW. With VersaWorks, you can control up to four Roland printers from one personal computer. And you will always be up to date with the latest software updates and media profiles with the VersaWorks Roland@NET auto update service. eco solvent printer large solvent printer spectra solvent printer
|
| Fash Start-Up and Easy Operation |
|

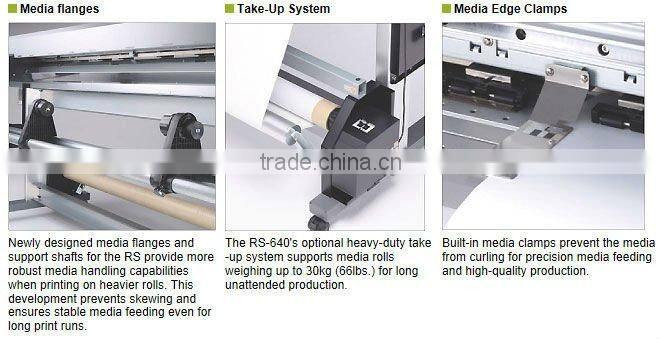

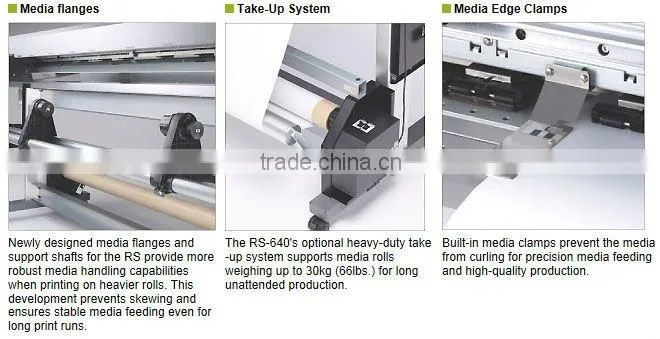

VersaArt series is designed for ease of use. Novices and professionals alike will appreciate the fast learning curve and easy procedures to start up, operate and shut down the printer. No mess 220/440 cc ink cartridges are easy to handle. Newly designed media shafts and flanges support rolls up to 40kg (88 lbs.) for unattended printing. VersaArt is also virtually maintenance free for even greater simplicity and productivity. Measuring just 2.6 m wide x 1.1 m high (101” wide by 43” high), the VersaArt RS-640 fits conveniently in just about any small shop environment. Expanding your production environment is easy as well because every Roland inkjet printer shares the same start up and operation procedures. eco solvent printer large solvent printer spectra solvent printer
|
| Exceeding Current and Future Environmental Standards |
|
VersaArt technology is Energy Star certified and operates without an additional power supply on a standard household electrical outlet. Advanced features optimize VersaArt ink consumption, reducing environmental waste and minimizing operational costs as well. Certified by Roland's Eco-Label system for environmental compliance, VersaArt series has been fully assessed for its environmental attributes. Information is available on the Roland. eco solvent printer large solvent printer spectra solvent printer |
| Roland-Your Business Partner Now And in The Future |
|
As a company, it remains our top priority to provide you with both the ultimate in product quality and reliability and the high service levels your business requires. With Roland, you get legendary Roland reliability and world-class service and support including training through Roland workshops and seminars. eco solvent printer large solvent printer spectra solvent printer |
Roland VersaWorks System Requirements
| Operating system | Windows® 7 Professional/Ultimate (32/64-bit); Windows Vista®Business/Ultimate (32/64-bit edition); Windows® XP Professional Service Pack 2 or later (32/64-bit) |
|---|---|
| CPU | Core™2 Duo, 2.0 GHz or faster recommended |
| RAM | 2 GB or more recommended |
| Video card and monitor | A resolution of 1,280 x 1,024 or more recommended |
| Free hard-disk space | 40 GB or more recommended |
| Hard-disk file system | NTFS format |
| Optical drive | DVD-ROM drive |
Options
| Model | Description | |
|---|---|---|
| ECO-SOL MAX Media | ESP-CL-1300 | Clear PET film, 1,300 mm x 30 m (51" x 98') |
| SP-CL-1000T | Clear PET film, adhesive, 1,000 mm x 20 m (39.37" x 65.61') | |
| SP-M-1270 | Matte PET film, 1,270 mm x 30 m (50" x 98') | |
| SFPLF-1300 | Backlit film, 1,300 mm x 30 m (51.18" x 98') | |
| SCM-GBMW-50-1180 | Polyethylene banner, 1,180 mm x 50 m (46.45" x 164') | |
| SCM-GPPG-50-914 | White glossy photo paper, 914 mm x 50 m (36" x 164') | |
| SCM-GPPG-50-1270 | White glossy photo paper, 1,270 mm x 50 m (50" x 164') | |
| SCM-GVWG-40-1370 | Monomeric calendered self adhesive vinyl white glossy-permanent adhesive, 1,370 mm x 40 m (53.93" x 131') | |
| SCM-GVWG-40-1525 | Monomeric calendered self adhesive vinyl white glossy-permanent adhesive, 1,525 mm x 40 m (60" x 131') | |
| ECO-SOL MAX Ink | ESL3-4MG | Magenta, 440 cc |
| ESL3-4YE | Yellow, 440 cc | |
| ESL3-4CY | Cyan, 440 cc | |
| ESL3-4BK | Black, 440 cc | |
| ESL3-MG | Magenta, 220 cc | |
| ESL3-YE | Yellow, 220 cc | |
| ESL3-CY | Cyan, 220 cc | |
| ESL3-BK | Black, 220 cc | |
| SL-CL | Cleaning liquid, 1 pc. | |
| Take-up System | TU2-64 | For RS-640, rolls up to 30kg (66lbs.) |
| TU2-54 | For RS-540 rolls up to 30kg (66lbs.) | |
| TUC-2 | Controller for TU2-64 and TU2-54 take-up systems | |
|
|
