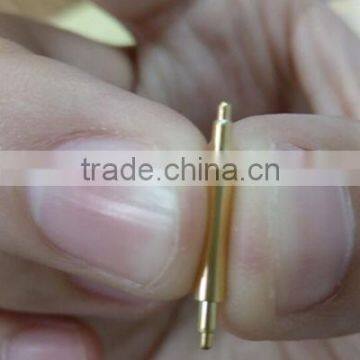

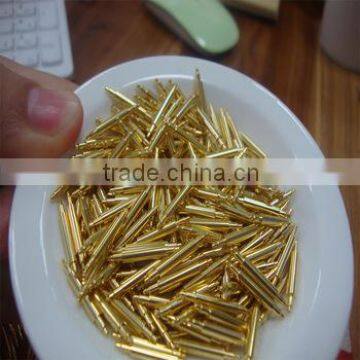

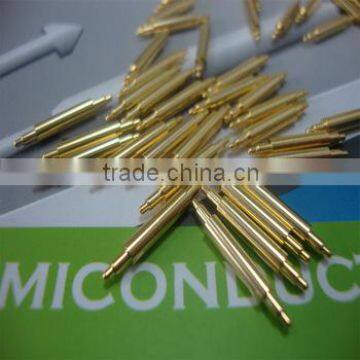

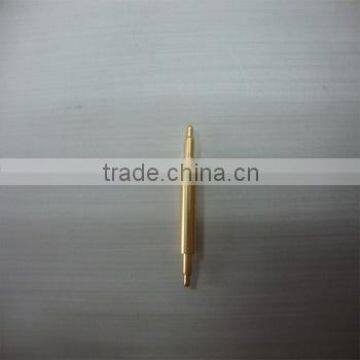

Help CenterCoaxial High Frequency Pogo Pin, Spring Probe Connector P11 Seriers
Related Products
-
Pcb Spring Loaded Contact Pogo Test PinsUS$ 0.01 - 0.1MOQ: 1000 Pieces -
Long Life Pogo Pin Probe for BGAUS$ 0.3 - 1MOQ: 100 Pieces
-
Spring Pogo Pin Connector Gold Plated Music Wire Phosphor BronzeUS$ 0.15 - 0.19MOQ: 1000 Pieces
-
ic Test Socket/BGA Socket BGA Test Fixture Probe Socket Quality ChoiceUS$ 10 - 30MOQ: 1 Set
-
IC and BGA Test Socket for STM32F STM32L QFP48US$ 0.1 - 2.2MOQ: 1 Set
magnetic pogo pin connector,spring loaded test probe

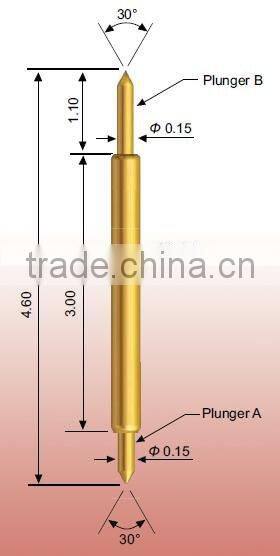

1.Material(Pogo Pin)
1) Plunger A : BeCu / Au Plated(Pogo Pin)
2) Plunger B : BeCu / Au Plated(Pogo Pin)
3) Barrel : PhBz / Au Plated(Pogo Pin)
4) Spring : SWP / Au Plated(Pogo Pin)
2.Mechanical(Pogo Pin)
1) Full Stroke : 0.80 mm(Pogo Pin)
2) Durability : 200K cycles (minimum)(Pogo Pin)
3) Spring Force : 35g ± 20% at 0.60 mm(Pogo Pin)
4) Recommended Travel : 0.60 mm(Pogo Pin)
3.Electrical Characteristics(Pogo Pin)
1) Current Rating : 1A Continuous(Pogo Pin)
2) DC Resistance : < 100 mΩ (AVG)(Pogo Pin)
3) Characteristic Impedance : 50 Ω(Pogo Pin)
4) Insertion Loss : 6.14GHz@-1dB(Pogo Pin)
5) Return Loss : 4.22GHz@-10dB(Pogo Pin)
BGA Double headed test needle for BGA rework station
PCB test pin for PCB'A
