Pcb Ultrasonic Wire Testing Probe Pins
US$ 0.01 - 1
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
XFC
Model Number:
p-50
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pcb Brass Contact Gold Plated Copper Head PinUS$ 0.15 - 1MOQ: 200 Pieces -
China Suplier Copper Electrical Plug Pins for Temperture ProbeUS$ 0.15 - 0.2MOQ: 100 Pieces
-
2014 China Electoric Functional Test Needle ConnectorsUS$ 0.1 - 0.4MOQ: 100 Pieces
-
Spring Pin Plungers, Spring Ball Plungers, Vented Snow Goggles China SupplierUS$ 0.02 - 0.08MOQ: 1000 Pieces
-
High Pressure Float Ball Electronic Testing Probes Sf-pa100- h Contact PogopinUS$ 0.18 - 0.3MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
XFC
Model Number
p-50
Power
Electronic
Usage
Universal Testing Machine
Pogo pin test probe is one of dedicated probe from XFC.Our products have good quality and lead this product have a long used life.
CP50 can used in ICT, PCB and so on.
This Product have many different heads and have two different tubes. But we also can made by customers' reqiure.
Spring Probe Head can use with XFC50 series Receptacle.

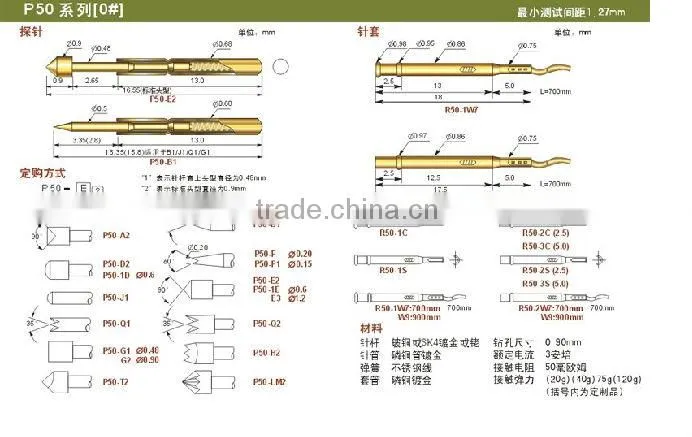

Technical Index
| Head Material | Beryllium Copper |
| Barrel Material | Bronze |
| Finishes | Gold Plated/Nickel Plated |
| Spring Material | Piano Plated |
| Full Travel | 2.5mm(0.100") |
| Recommended Min Center | 1.27mm(0.050") |
| Drilling Size | 0.914mm(0.036") |
| Elastic force by travel 2mm-3mm | 75g |
| Current Rating | 3A |
| Probe Resistance | 50mΩ |
