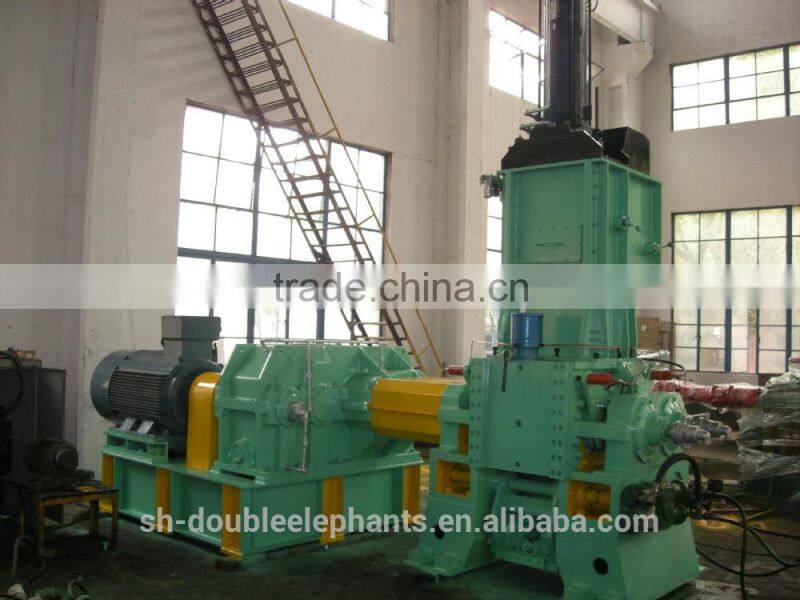

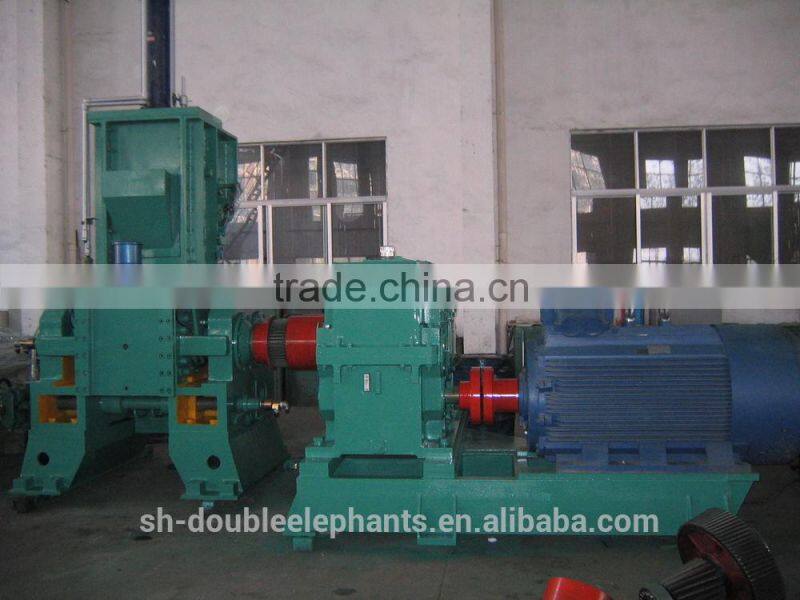

banbury mixer plant machine,banbury rubber internal mixer ,lab banbury mixer

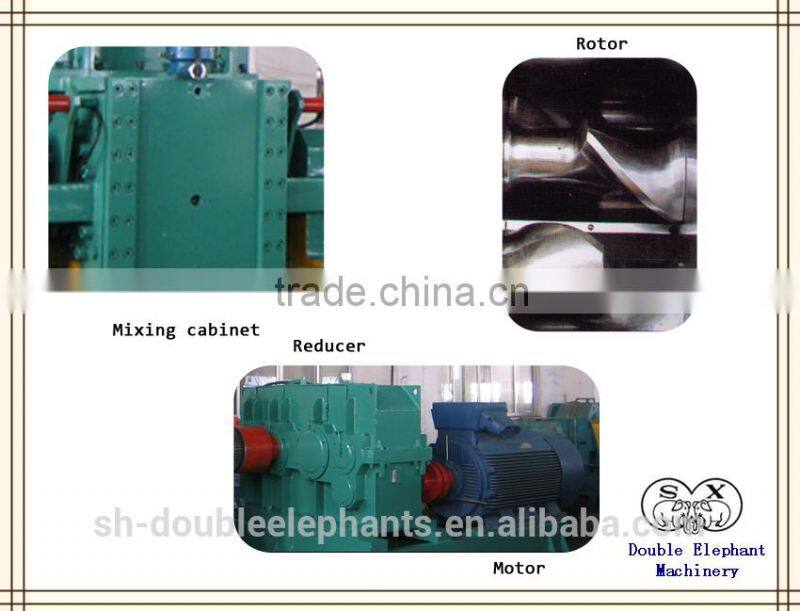

Features:
1.The mixing chamber is of drilled structure with quick and better heating/cooling effects.The inner woll is coated with hard chrome for long service life.
2. Build-up welding of hard alloy for the two,three,four ridge top and two sides of the rotor, and the working surfaces are coated with hard chrome, good appearance and abrasive resistance.The cooling/hearting medium can pass through the hollow of the tangent linear type, mesh type and synchronization type rotor.
3. Constant hydraulic pressure seal structure is used for the top of the rotor and seal effect is good with long service time thanks to high pressurelubrication automatic alarm for used up of oil.
4. The upper bolt relieves the pressure automatically to protect the machine and for long service time if the machine works for too long time under over load condition.
5. The working surface of up and down bolts are coated with hard chrome, good appearance and abrasive resistance. The cooling/heating medium can pass inner hollow of down bolt.
6. A rotary oil cylinder is used for discharge door, smooth running and accurate positioning.
7. Use two shafts put-out hard teeth reducer and gear coupling or "+" type universal joint, the transmission is smooth with high efficiency and low noise level and long service life.
Parameters/Model |
XM- 50×40 |
XM- 75×40 |
XM- 80×40 |
XM- 110×40 |
XM- 160×40 |
XM- 190×40 |
||
Total volume of internal mixer,L |
50 |
75 |
80 |
110 |
160 |
190 |
||
Available volume of mixing chamber,(L) |
37.5 |
56 |
60 |
82.5 |
120 |
142.5 |
||
Speed of rear rotor(r/min) |
40 |
40 |
40 |
40 |
40 |
40 |
||
Speed ratio of rotor |
1:1.167 |
1:1.185 |
1:1.185 |
1:1.156 |
1:1.143 |
1:1.143 |
||
Main motor |
Model |
Y315S |
Y355M1 |
Y355M2 |
Y355L |
Y400M |
|
|
Power,(kW) |
75 |
160 |
180 |
220 |
355 |
800 |
||
Voltage,(V) |
380 |
380 |
380 |
380 |
380 |
380 |
||
Weight,(T) |
11 |
16.8 |
18 |
24 |
38 |
46 |
||
Overall dimension (mm) |
Length |
4225 |
5600 |
6500 |
5835 |
7000 |
7200 |
|
Width |
1980 |
2105 |
2215 |
2320 |
3330 |
3300 |
||
Height |
3180 |
4425 |
4500 |
4400 |
4800 |
6200 |
||
COMPANY INFORMATION
Shanghai double elephants rubber and plastic machinery co., LTD., founded in 1994, specializing in the production and distribution group of companies affiliated factory production of rubber and plastic machinery, PVC film, artificial leather In addition, we also canaccording to user requirements design and manufacture non-standard equipment.We export to more than 40 countries and regions, deeply user high praise.
CERTIFICATE OF HONOR
GUARANTEE & AFTER-SALE SERVICE
1,One year guarantee for whole machine except tubes
2,24 hours technical support by mail
3,service station in your country, quick response
banbury mixer plant machine,banbury rubber internal mixer ,lab banbury mixer
