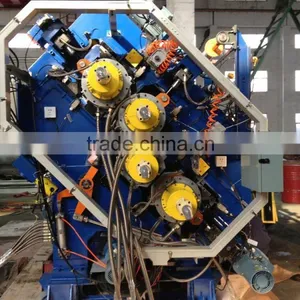

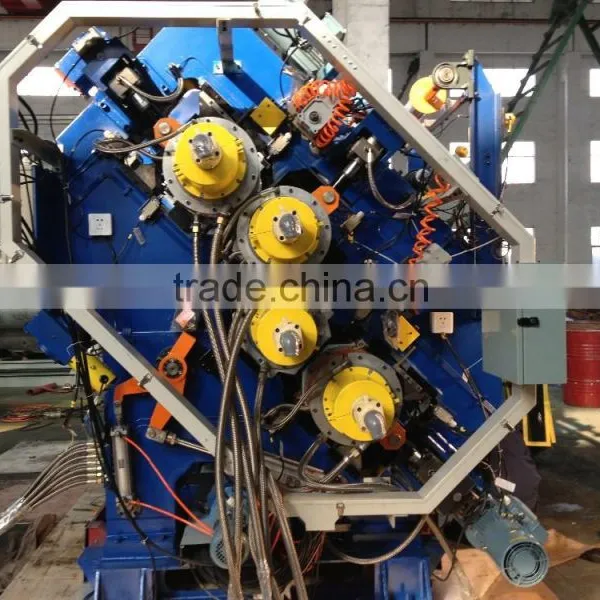

Good Quality Rubber Four Roll Calender Machine

Good Quality Rubber Four Roll Calender Machine thumbnail-1
Good Quality Rubber Four Roll Calender Machine thumbnail-2
Good Quality Rubber Four Roll Calender Machine thumbnail-3
Good Quality Rubber Four Roll Calender Machine photo-1
Good Quality Rubber Four Roll Calender Machine photo-2
Good Quality Rubber Four Roll Calender Machine photo-3
US$ 20,000 - 1,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
DOUBLEELEPHANTS
Contact Supplier Request Quote Chat Now
Shanghai Double Elephant Rubber & Plastic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name DOUBLEELEPHANTS
Model Number XY-4F1120~XY-4S3400
Voltage 380V/ 50HZ
Power(W) 55~200KW
Dimension(L*W*H) 6040*2100*1625
Weight 13~145KGS
Certification ISO,CE
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas

roll calender machine,four roll calender machine,rubber four roll calender machine Good quality rubber four roll calender machineGood quality rubber four roll calender machine

Good quality rubber four roll calender machine

Good quality rubber four roll calender machine

Features:

It is composed of such main parts as:drilled rolls,double row self aligning bearing,oil lubrication system,gap adjustment device,hydraulic lock,roll crossing and roll prestress,etc.

The products produced by this machine is high precision and have no buble.



Specification Type

Roller dia.×Length(mm)

Mid-roller linerSpeed(m/min)

Thickness for calendering(mm)

Calendering width(mm)

Motor power(KW)

Overalldimension (L×W×H)(mm)

Weight (t)

XY-4F1120

360x1120

7~21

≥0.20

900

55

6040x2100x1625

13

XY-4F1400

400x1400

8.8~26.39

≥0.20

1200

75

6350x21850x2490

18

XY-4Γ1600

560x1600

3.5~30

≥0.20

1400

144

6270x2960x4100

45

XY-4Γ1730

610x1730

5.4~54

≥0.20

1500

160

6040x2100x1625

64

XY-4Γ1830

610x1830

6~60

≥0.20

1600

67x4

6750x3040x1743

68

XY-4S1220

400x1220

3~30

≥0.20

700

22x4

5528x3300x3600

25

XY-4S1250

450x1250

3.5~35

≥0.20

800

37x4

6025x3300x3800

30

XY-4S1250

510x1250

3.5~35

≥0.20

800

37x4

6025x3300x3800

33

XY-4S1730

610x1730

5~50

≥0.20

1500

75x2 90x2

8010x4738x4837

65

XY-4S2030

660x2030

5~50

≥0.20

1800

110x4

8850x5080x5210

73

XY-4S2300

710x2300

5~50

≥0.20

2000

132x4

8850x5050x5210

82

XY-4S2500

760x2500

5~50

≥0.15

2200

160x4

12280x6500x5900

90

XY-4S3400

900x3400

5~50

≥0.15

3100

200x4

17000x8630x9350

145





Company Information

COMPANY INFORMATION



Shanghai double elephants rubber and plastic machinery co., LTD., founded in 1994, specializing in the production and distribution group of companies affiliated factory production of rubber and plastic machinery, PVC film, artificial leather In addition, we also canaccording to user requirements design and manufacture non-standard equipment.We export to more than 40 countries and regions, deeply user high praise.



OUR EQUIPMENT

Good quality rubber four roll calender machine

EXHIBITION

Good quality rubber four roll calender machine





OUR CUSTOMER

Good quality rubber four roll calender machine





CERTIFICATE OF HONOR





SALES NETWORK

Good quality rubber four roll calender machine





Our Services

1,One year guarantee for whole machine except tubes

2,24 hours technical support by mail

3,service station in your country, quick response

roll calender machine,four roll calender machine,rubber four roll calender machine
