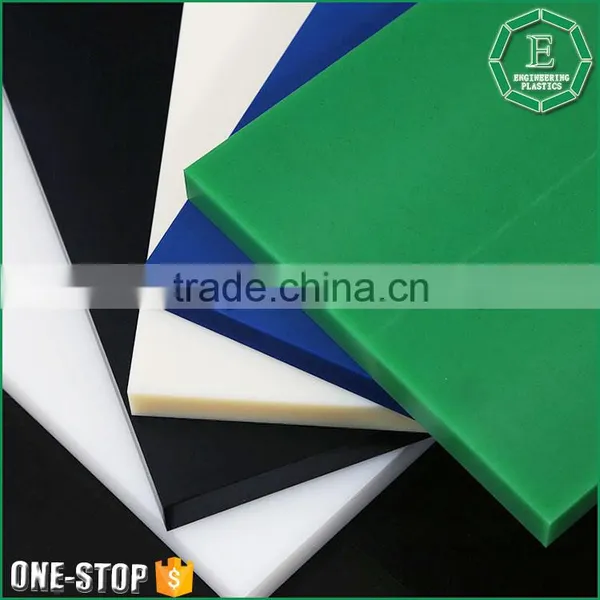

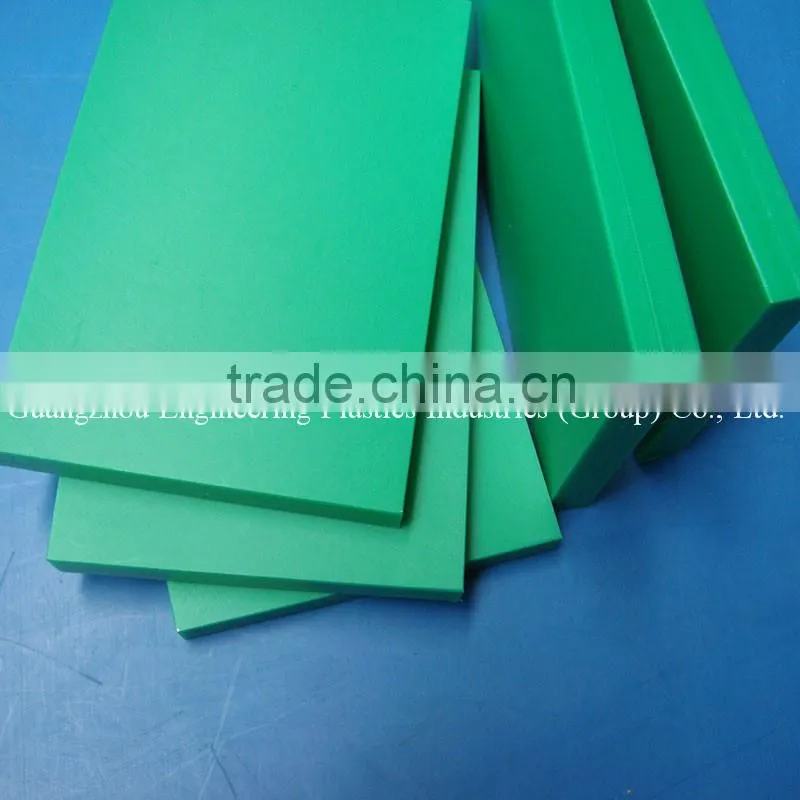

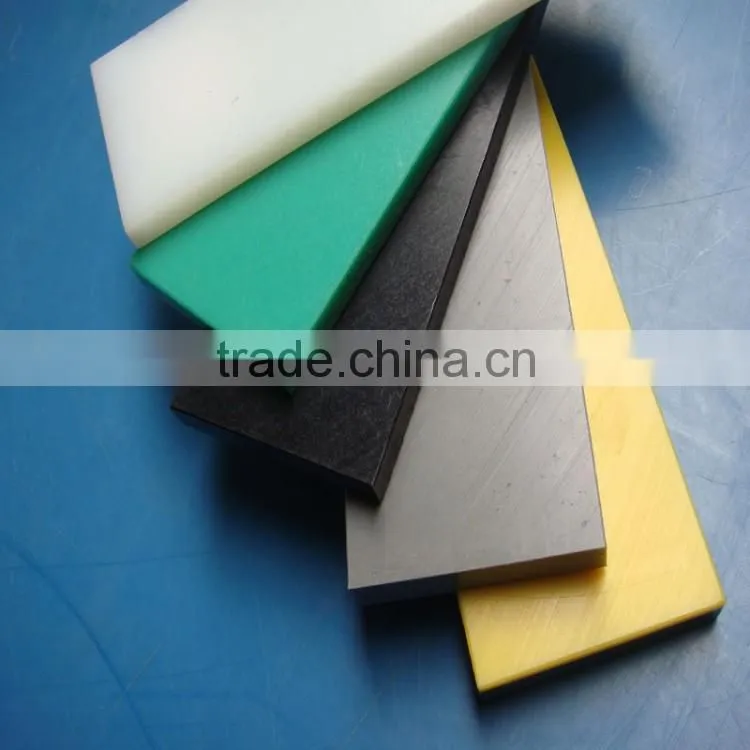

5-200mm thickness customized POM plate Delrin sheet Acetal board
| Model | sheet board |
| Material | POM/POM-C/Delrin/Derlin/Acetal/Acetron or customized |
| Thickness | 5-200mm or customized |
| Width*Length | 1000*2000mm,1220*2440mm,or customized |
| Color | White,Black,Green,Blue,Yellow,ect. |
| OEM & ODM | Yes |
| Certification | ISO9001,SGS,FDA,RoHS,Test Report,ect. |
| Free Sample | Yes |
| Density | 1.5g/ cm3 |
| Shape | sheet, rod, tube, gear, pulley, guide rail......or according to your demand |
| Packing | Plastic bags,Cartons,Wooden case,Pallet,Container,ect. |
| Advantage | 1.One stop procurement |
| 2.ODM & OEM is available | |
| 3.Technology:cnc machining,injection mold | |
| 4.All engineering plastic is available |
POM(Polyformaldehyde)sheet, is a engineering plastics of non-side-chain, high density, high crystalline and linear polymer, which is praised “Plastic Steel”, and has comprehensive excellent performances, such as: wear-resistance, high hardness, anti-impregnant, good rigidity (Tensile modulus of elasticity), chemical stability, isolation resistance and dimensional stability. POM has widely applied in Automobile industries, electronic and electric products, commodity, pipeline & fittings, exact apparatus and so on, which can be instead of the bronze, Zinc, tin and other metals.
The property of POM Delrin Derlin Acetal plate:
Property |
Item No. |
Unit |
POM-C |
POM-H |
POM-H+PTFE |
|
Mechanical Properties |
1 |
Density |
g/cm3 |
1.41 |
1.43 |
1.50 |
2 |
Water absorption(23℃ in air) |
% |
0.20 |
0.20 |
0.17 |
|
3 |
Tensile strength |
MPa |
68 |
78 |
55 |
|
4 |
Tensile strain at break |
% |
35 |
35 |
10 |
|
5 |
Compressive stress(at 2%nominal strain) |
MPa |
35 |
40 |
37 |
|
6 |
Charpy impact strength (unnotched) |
KJ/m2 |
≥150 |
≥200 |
≥30 |
|
7 |
Charpy impact strength (notched) |
KJ/m2 |
7 |
10 |
3 |
|
8 |
Tensile modulus of elasticity |
MPa |
3100 |
3600 |
3200 |
|
9 |
Ball indentation hardness |
N/mm2 |
140 |
160 |
140 |
|
|
10 |
Rockwell hardness |
- |
M84 |
M88 |
M84 |
1. Rich industry experience since 1988.
2. Wide arrange product line, including plastics sheet/rod/parts/accessories: MC NYLON, OIL NYLON, POM, UHMW-PE, PU, PETP, PC, PTFE, PVDF, PPS, PEEK, PAI, PI, PBI ect.
3. Manufacture, design and processing service as per your demand.

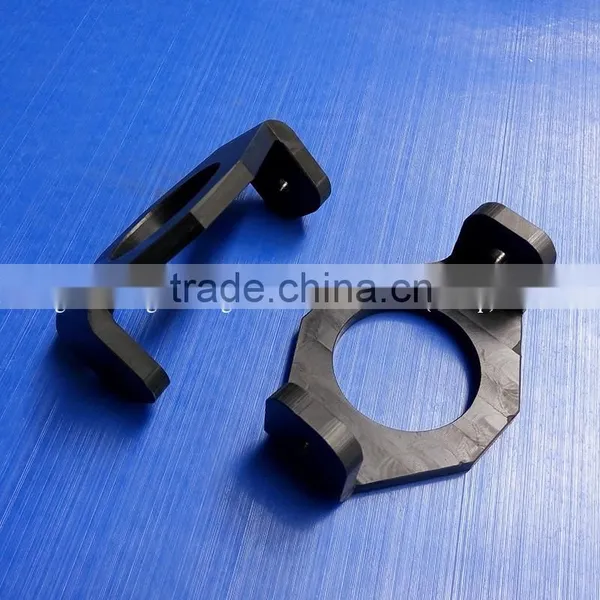

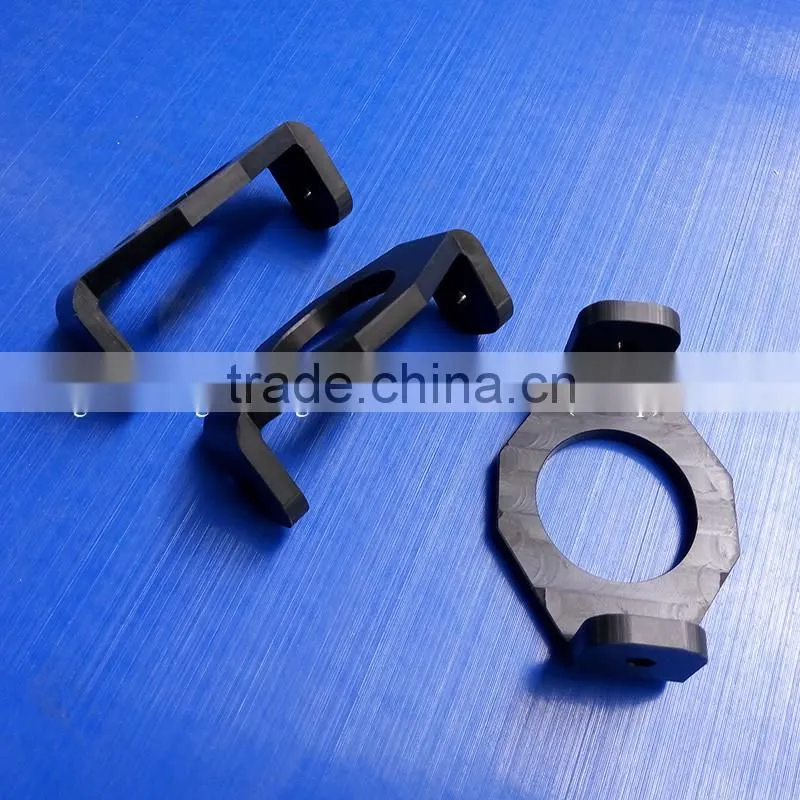

Processing:
POM plate Application:
1.Industry: Gears, Cams, Bushes, Bearings, Gaskets, Pulleys, Liners.
2.Textile: Loom Pivot Bearings, Gears for Looms and Knitting Machines, Shuttles, Rollers.
3.Metal: Bearings, Bearing Cages, Slipper Pads, Gears, Bushes, Wear Strips, Rollers, Eccentric Rollers, Wobble Box Inserts.
4.Material Handling Equipments: Cranes / Forklifts / Conveyors, Ropeways
5.Automobile: Wear Rings, Pads, Swivel Bushes, Throttle Linkages, Bushes, Shakle Pin Bushes
6.Paper/Sugar Mills: Gears, Bushes Pulleys, Roller Bearings
7.Bottling & Food Processing: Star Wheels, Scrolls, Guides, Cams, Cam Followers, Rollers, Timing Screws
8.Marine: Bushes, Gears, Rings, Trunion Bearings, Rollers & Roller Bearings, Stern Tubes
FAQ:
1.A: What’s the size of plastics sheet?
B:Nylon sheet:Thickness*Width*Length:20-100*1000*2000mm
UHMW-PE sheet:Thickness*Width*Length:20-100*1000*2000mm; 20-100*1250*3130mm; 20-100*1250*4250mm
POM sheet:Width*Length:1000*2000mm
2. A:Can we purchase a small part of plastics sheet?
B: Yes,you can, if we have the size you require in stock.
3. A:What color of plastics sheet?
B: Nylon sheet: Natural,black,blue,or according to client’s requiremnet.
UHMW-PE sheet: White,black,green ,bule,yellow,or according to client’s requirement.
White,black
4. A:Can you manufacture the plastics products as per drawing?
B: Yes,we can.
5.A: What the precision of plastic products according to drawing?
B: Different machine with different precision,it usually around 0.05-0.1mm
6.A: What the technologies in producing plastics parts?
B: Different products with different technologies,such as CNC machine,Extrusion,Injection
7: A:What kinds of processing machine do you have?
B: CNC machining center,CNC lathes,Milling,Injection Molding Machine,Extruder,Moulding press
