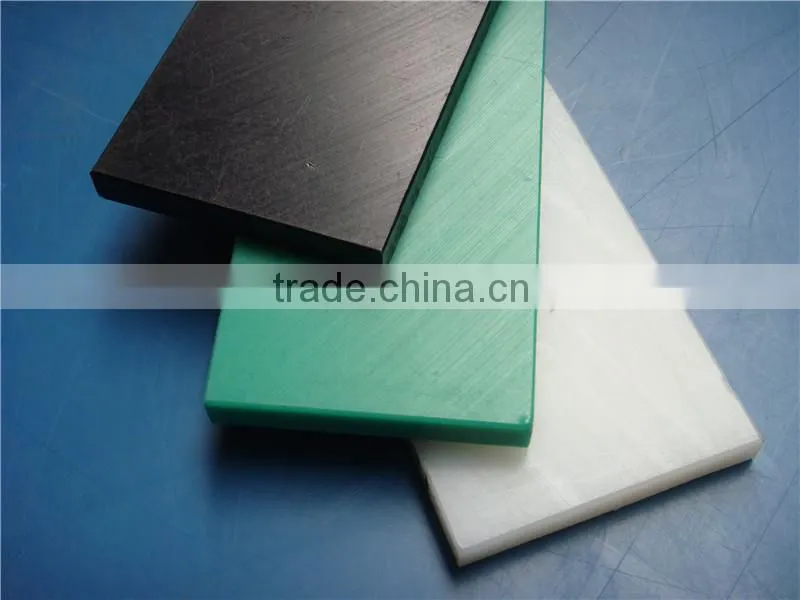

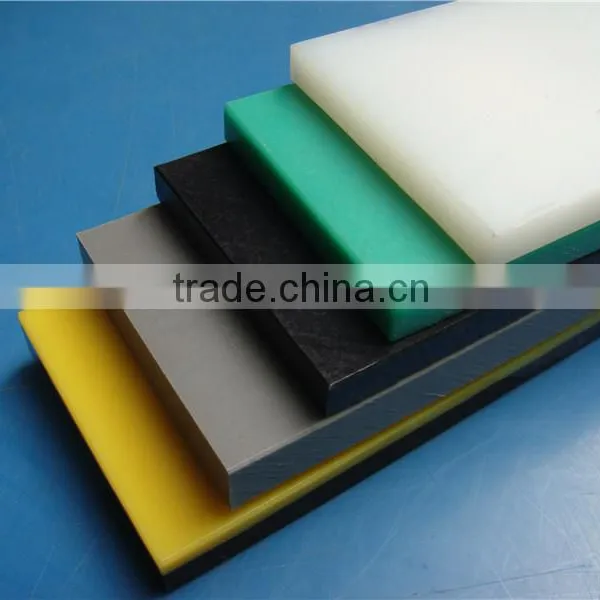

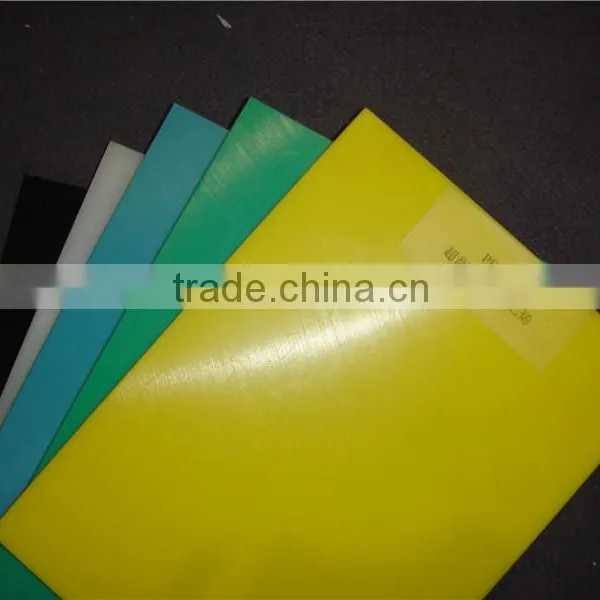

high density white uhmw pe plastic sheet
UHMW-PE(Ultra high Molecular Weight Polyethylene )is a thermoplastic engineering plastic with the average molecular weight more than 5.5 million. (PE only has the molecular weight between twenty to two hundred thousand.) This kind of material with five top performance of high-wear-resistance, good-chemical resistance, low-temperature resistance, self-lubrication and high-impact resistance, which is regarded as a “surprised” engineering plastic of excellent comprehensive capacity and competitive price.
Main characteristics:
1. Good low temperature resistance,
2. Very high anti-impact resistance,
3. Good self-lubrication,
4. Non-toxic and clean property,
5. Very high-wear resistance,
6. Good anti-corrosion resistance,
7. Very high-inadhesion resistance,
8. Very high-impact resistance,
The property of UHMW PE sheet:
Property |
Item No. |
Unit |
Value |
|
Mechanical Properties |
1 |
Density |
g/cm3 |
0.94-0.96 |
2 |
average molecular weight |
g/mol |
More than 6.0 million |
|
3 |
Tensile strength (23℃ in air) |
MPa |
22 |
|
4 |
Breaking strength |
MPa |
42 |
|
5 |
Tensile strain at break |
% |
600 |
|
6 |
Charpy impact strength (notched) |
mJ/mm2 |
No break |
|
7 |
Ball indentation hardness |
N/mm2 |
42 |
|
8 |
Shore D hardness |
-- |
D65 |
|
9 |
Abrading(sand slurry experiment) |
-- |
100 |
|
UHMW PE sheet product description:
1. Very high anti-impact resistance, two times impact resistance than PC, five times than ABS.
2. Very high-inadhesion resistance, the surface of product hardly affixes other material.
3. Very high-impact resistance, ten times impact resistance than PA66, eight times than PTFE.
4. Good low temperature resistance, in liquefied nitrogen (- 196°C), it still has the prolongation.
few other materials can reach to this performance.
5. Good self-lubrication, the same as PTFE, better than steel and brass appended lubricating oil.
6..organic solvent in certain rang of temperature and humidity.
7. Non-toxic and clean property, UHMW-PE, which is the material that Food and Drug Administration (FDA) and United States Department of Agriculture (ASDA) permit to apply in food and medicine fields.
8. Very high-wear resistance, seven times wear resistance than steel, four times than PTFE
Application:
Textile industry:
Sport and amusement industry:
Medical industry:
Chemical and other industry:
Paper making industry:
Food and beverage light industry:
Waste-water industry:
Electronic Industry:
37
