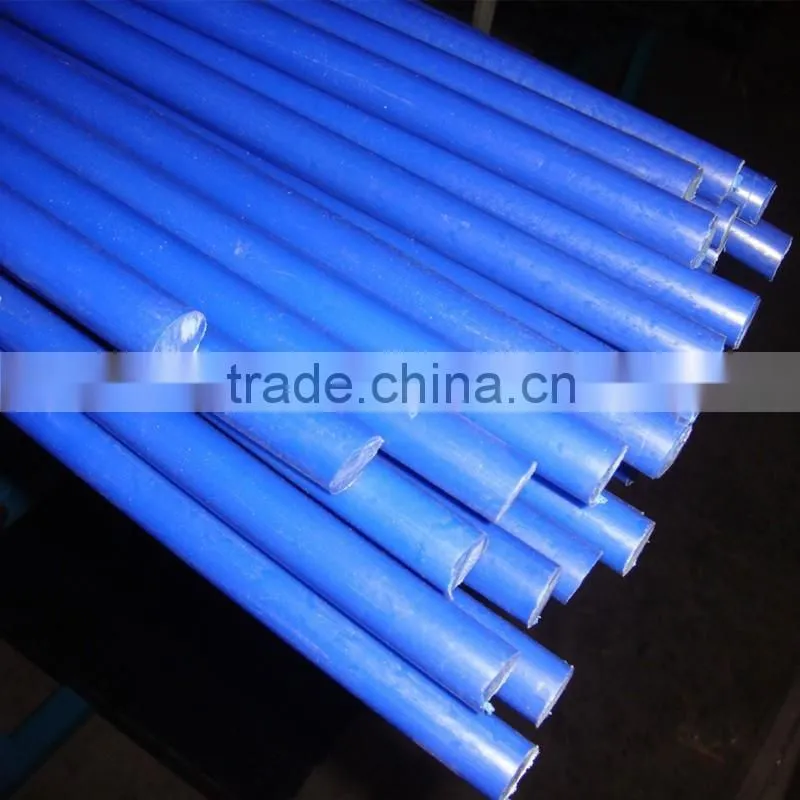

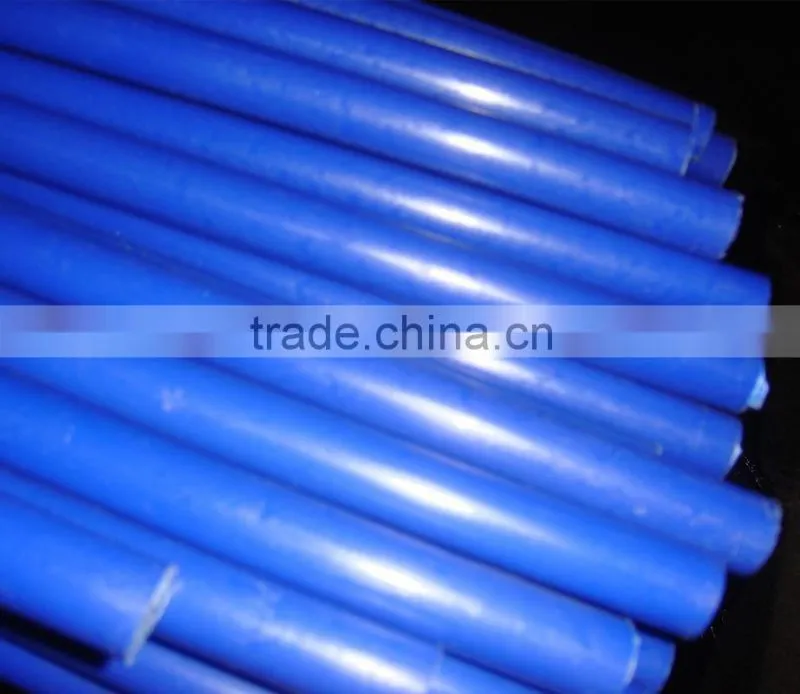

engineering palstic blue MC Nylon PA6 PA66 bar / rod / stick
MC Nylon,means Monomer Casting Nylon, is a kind of engineering plastics used in comprehensive industries, has been applied almost every industrial field.
Characteristics:
Good at dampening
Good chemical stability against organic solvents and fuels
Low coefficient of friction
Excellent electrical properties, ease of printing and dyeing
Good abrasion resistance
High strength and stiffness
High impact and notch impact strength
High heat deflection temperature
Nylon Sheet Property:
Property |
Item No. |
Unit |
MC Nylon (Natural) |
Oil Nylon+Carbon (Black) |
Oil Nylon (Green) |
MC901 (Blue) |
MC Nylon+MSO2 (Light black) |
|
Mechanical Properties |
1 |
Density |
g/cm3 |
1.15 |
1.15 |
1.135 |
1.15 |
1.16 |
2 |
Water absorption (23℃ in air) |
% |
1.8-2.0 |
1.8-2.0 |
2 |
2.3 |
2.4 |
|
3 |
Tensile strength |
MPa |
89 |
75.3 |
70 |
81 |
78 |
|
4 |
Tensile strain at break |
% |
29 |
22.7 |
25 |
35 |
25 |
|
5 |
Compressive stress(at 2%nominal strain) |
MPa |
51 |
51 |
43 |
47 |
49 |
|
6 |
Charpy impact strength (unnotched) |
KJ/m2 |
No brak |
No break |
≥50 |
No BK |
No break |
|
7 |
Charpy impact strength (notched) |
KJ/m2 |
≥5.7 |
≥6.4 |
4 |
3.5 |
3.5 |
|
8 |
Tensile modulus of elasticity |
MPa |
3190 |
3130 |
3000 |
3200 |
3300 |
|
9 |
Ball indentation hardness |
N/mm2 |
164 |
150 |
145 |
160 |
160 |
|
10 |
Rockwell hardness |
- |
M88 |
M87 |
M82 |
M85 |
M84 |
|
Thermal Properties |
11 |
Thermal conductivity at 23℃ |
W/(K.m) |
0.29 |
0.29 |
0.28 |
0.29 |
0.30 |
12 |
Melting temperature |
℃ |
223 |
223 |
220 |
220 |
220 |
|
13 |
Glass transition temperature |
℃ |
-- |
-- |
-- |
-- |
-- |
|
14 |
Temperature of deflection(1.8MPa) |
℃ |
80 |
80 |
75 |
80 |
80 |
|
15 |
Max allowable working temperature in air for short periods |
℃ |
170 |
180 |
165 |
170 |
170 |
|
16 |
Max allowable working temperature in air continuously |
℃ |
105 |
120 |
105 |
105 |
105 |
|
17 |
Coefficient of liner thermal expansion (at 23-150℃) |
m/(m.K) |
90x10-6 |
90x10-6 |
90x10-6 |
90x10-6 |
90x10-6 |
|
