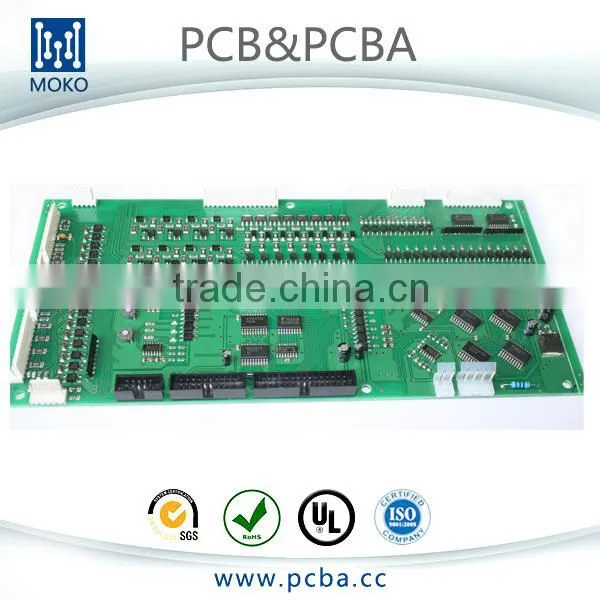

15 days quick turn electronics fast pcb pcba smt/ thru-hole assembly
15 days fast pcb pcba:
-PCB fabrication
-component sourcing
-PCB with components assembly
-function test
-all fast and quick turn
Needed files from customers:
- PCB original file and Bill of Material List
- Programming and test files
MOKO advantages:
- 8 SMT lines + 4 thru-hole lines
- 400 workers, 20 QCs, 12 engineers
- All PCBA with 2 years warranty
- Free fucntion test& programming IC
- alibaba trade assurance
- 10 years producing experience, alibaba 7 year gold supplier
PCB and PCBA service:
1.Detailed Specification of PCB Manufacturing
1 |
layer |
1-18 layer |
|
2 |
Material |
FR-4,CEM-1,CEM-3,High TG,FR4 Halogen Free,FR-1,FR-2 |
|
3 |
Board thickness |
0.2mm-4mm |
|
4 |
Max.finished board side |
800*508mm |
|
5 |
Min.drilled hole size |
0.25mm |
|
6 |
min.line width |
0.075mm(3mil) |
|
7 |
min.line spacing |
0.075mm(3mil) |
|
8 |
Surface finish/treatment |
HALS/HALS lead free,Chemical tin,Chemical Gold, Immersion gold Immersion Silver/Gold,Osp,Gold Plating |
|
9 |
Copper thickness |
0.5-4.0oz |
|
10 |
Solder mask color |
green/black/white/red/blue/yellow |
|
11 |
Inner packing |
Vacuum packing,Plastic bag |
|
12 |
Outer packing |
standard carton packing |
|
13 |
Hole tolerance |
PTH:±0.076,NTPH:±0.05 |
|
14 |
Certificate |
UL,ISO9001,ISO14001,ROHS,CQC |
|
15 |
profiling punching |
Routing,V-CUT,Beveling |
|
16. providing OEM service to all sorts of printed circuit board assembly | |||
2.Detailed Terms for Pcb Assembly
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
