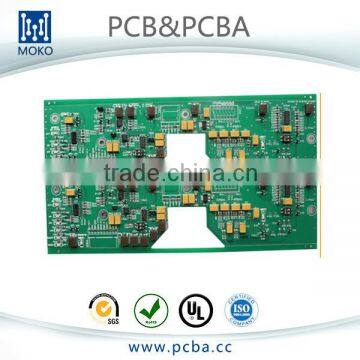

Custom pcb board walkie talkie pcb assembly board

Name: Custom pcb board walkie talkie pcb assembly board
Brand: MOKO
Price: USD $1 - 10 / Unit

FOB Price

USD $1 - $10 / Unit

1 Unit(Min.Order)

Supply Ability 1000 Square Meter / Square Meters per Month
Port Shenzhen or Hong Komg
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	MOKO	Model Number:	MK60712BE03
Number of Layers:	Other, 2 layer	Base Material:	FR4	Copper Thickness:	1oz
Board Thickness:	1.6mm	Min. Hole Size:	0.25mm	Min. Line Width:	0.1mm
Min. Line Spacing:	0.1mm	Surface Finishing:	HASL Lead free

Packaging Details

Inner packing :Vacuum Package Outer packing:Standard Carton

Product Description

Custom pcb board walkie talkie pcb assembly board

Founded in the year 2001,located in Shenzhen, as a professional EMS/OEM Manufacturer, MOKO TECHNOLOGY LTD could provide one-stop pcb assembly service. also could offer:

- Contract Manufacturing

- Engineering Services

- PCB Design & Assembly

- Component Procurement & Material Management

- Product Design

- Fast Track Prototyping

- Cable and Wire Assemblies

- Plastics and Molds

- Function Testing Service

MOKO have adapted and developed our capabilities and skill set to meet every customer requirement, from the manufacture of a selective item through to complete project management. With rich experience within pcb fabrication, components sourcing and pcb assembly service. As a professional pcb&pcba manufacturer, To reach the highest quality and most exacting standards is our mission.

1.Detailed Specification of PCB Manufacturing

Number of Layer	1,2,4 or 6,upto 18 layer
Order Quantity	1 to 50,000
Board Shape	Retangular,round,slots,cutouts,complex,irregular
Board Type	Rigid, Flexible, Rigid-flexible
Board Material	FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers,etc.
Board Cutting	Shear,V-score,Tab-routed
Board Thickness	0.2-4.0mm, Flex 0.01-0.25mm
Copper Weight	1.0, 1.5, 2.0 oz
Solder Mask	Double-sided green LPI,Also support Red,White,Yellow,Blue,Black
Silk Screen	Double-sided or single-sided in white,yellow,black,or negative
Silk Screen Min Line Width	0.006'' or 0.15mm
Max Board Dimensions	20 inch20inch or 500mm500mm
Min Trace/Gap	0.10mm, or 4mils
Min Drill Hole Diameter	0.01'',0.25mm, or 10mils
Surface Finish	HASL,Nickle,Immersion Gold,Immersion Tin,Immersion Silver,OSP,etc.
Board Thickness Tolerance	±10%
Copper Weight Tolerance	± 0.25 oz
Minimal Slot Width	0.12'', 3.0mm, or 120mils
V-Score Depth	20-25% of board thickness
Design File Formate	Gerber RS-274,274D,Eagle and AutoCAD's DXF,DWG

2.Detailed Terms for Pcb Assembly

Technical Requirement	Professional Surface-mounting and Through-hole soldering Technology
	Various sizes like 1206,0805,0603 components SMT technology
	ICT(In Circuit Test),FCT(Functional Circuit Test) technology
	PCB Assembly With UL,CE,FCC,Rohs Approval
	Nitrogen gas reflow soldering technology for SMT
	High Standard SMT&Solder Assembly Line
	High density interconnected board placement technology capacity
Quote&Production Requirement	Gerber File or PCB File for Bare PCB Board Fabrication
	Bom(Bill of Material) for Assembly,PNP(Pick and Place file) and Components Position also needed in assembly
	To reduce the quote time, please provide us the full part number for each components,Quantity per board also the quantity for orders.
	Testing Guide&Function Testing method to ensure the quality to reach nearly 0% scrap rate
OEM/ODM/EMS Services	PCBA, PCB assembly: SMT & PTH & BGA
	PCBA and enclosure design
	Components sourcing and purchasing
	Quick prototyping
	Plastic injection molding
	Metal sheet stamping
	Final assembly
	Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
	Custom clearance for material importing and product exporting
Other PCB Assembly Equipments	SMT Machine: SIEMENS SIPLACE D1/D2 / SIEMENS SIPLACE S20/F4
	Reflow Oven: FolunGwin FL-RX860
	Wave Soldering Machine: FolunGwin ADS300
	Automated Optical Inspection (AOI): Aleader ALD-H-350B,X-RAY Testing Service
	Fully Automatic SMT Stencil Printer: FolunGwin Win-5

3.Production Details:

1) Material Management

Supplier → Components Purchase → IQC → Protection Control → Material Supply → Firmware

2) Program Management

PCB Files → DCC → Program Organizing → Optimization → Checking

3) SMT Management

PCB Loader → Screen Printer → Checking → SMD Placement → Checking → Air Reflow → Vision Inspection → AOI → Keeping

4) PCBA Management

THT→Soldering Wave (Manual Welding) → Vision Inspection → ICT → Flash → FCT → C

walkie talkie PCB Assembly Production Process

walkie talkie PCB Assembly plastic enclosures

Lead time:

PCB	Single/double side	4 layer	6 layer	Above 8 layer	HDI
Sample lead time(Normal)	5-6	6-7	7-8	10-12	15-20
Sample lead time(Fastest)	48-72 hours	5	6	6-7	12
Mass production lead time(First batch)	7-9	10-12	13-15	16	20
PCB Assembly	PCB Fab+Components Sourcing+PCBA=20 days

Packaging & Shipping

Our Services

1.PCB

2.Component service

3.PCB Assembly

4.PCBA testing

5. PCB Assembly with Enclosure

Our Advantage:

PCB quoted online

Original ICs and compoennts from stock

High quality PCBA and competitive price

100% PCBA function testing

Warranty: 2 Years

Shortly lead time: PCB :4-9 days,PCBA:20-25days

Certificate:UL,ROHS,CE,ISO9001,ISO14001

PCBA OEM service with more than 10 years experience

Company Profile

Shenzhen Moko Technology Ltd.

MOKO TECHNOLOGY LTD is an expert at PCB and PCBA manufacture, based in Shenzhen, Guangdong, China. We are specialized in manufacturing Single-Sided Boards, Double-Sided Boards and multilayer PCB.

We are honored as the excellent supplier of many companies all around this world. We can offer all kinds of services including PCB and PCB assembly sample orders and batch orders.

We have got the ISO9001:2000, ISO14001, and UL RoHS certifications. Now our PCB daily capacity reaches 1000 square meters, and PCB assembly can reach 100,000,000 units per month.

We deeply believe that our good service and experience will completely meet you need. Integrity, value and innovation are the forces that drive our success. We are the smart choice for you and the trusted source at the center of your deal. Welcome the win-win situation together.

Contact Us

Shenzhen Moko Technology Ltd.: Contact nameRosina Zeng; Phone86-755-23573370; Address#401,U2,BLDG2,Guanghui Tech park Minqing Rd Longhua Shenzhen,Guangdong
