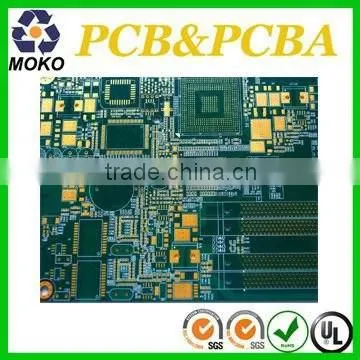

OEM/ODM Fr4 Refrigerator Pcb Board

US$ 0.58 - 1.58 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

MK50416BC01

Shenzhen Moko Technology Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

SZ/HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number MK50416BC01

Base Material FR4, FR4

Copper Thickness 1oz, 1oz

Board Thickness 1.6MM, 1.6mm

Min. Hole Size 0.25mm, 0.25mm

Min. Line Width 0.075mm, 0.075mm

Min. Line Spacing 0.075mm, 0.075mm

Surface Finishing HASL, HASL

OEM/ODM Fr4 refrigerator pcb board

Specification:

- OEM/ODM Fr4 refrigerator pcb board

- PCB make & Assembly

- Component Procurement & Material Management

- Cable and Wire Assemblies

- Plastics and Molds

- Function Testing Service

Moko PCB Board Fabrication Capabilities:

Layer	1,2,4 or 6,upto 18 layers
Material	FR4,CEM1,CEM3,Hight TG,FR4 Halogen Free,FR1,FR2
Order Quantity	1-500,000
Board shape	Rectangular,round,slots,cutouts,complex,irregular
Board type	Rigid,flexible,rigid-flexible
Board material	FR-4,glass epoxy,FR4 High Tg,Rohs compliant,Aluminum,Rogers,etc
Board cutting	Shear,V-score,tab-routed
Board thickness	0.2~4.0mm,Flex 0.01~0.25''
Copper weight	1.0,1.5,2.0oz
Solder mask	Double-sided green LPI,Also support red,white,yellow,blue,black
Silk screen	Double-sided or single-sided in white,yellow,black,or negative
Silk screen min line width	0.006'' or 0.15mm
Max board dimensions	20inch20inch or 500mm500mm
Min drill hole diameter	0.01'',0.25mm.or 10 mils
Surface finish	HASL,Nickle,Imm Gold,Imm Tin,Imm Silver,OSP etc
Board thickness tolerance	± 10%
Copper weight tolerance	± 0.25oz
Minimal slot width	0.12'',3.0mm,or 120mils
V-score depth	20-25% of board thickness
Plated through holes	Yes
Sink holes	Yes
Design file format	Gerber RS-274X,274D,Eagle and AutoCAD'S DXF,DWG

Lead Time For PCB Board and PCBA:

	Single,Double sided	Four layer	Six layer	Above eight layer	HDI
Sample lead time(Normal)	5-6	6-7	7-8	10-12	15-20
Sample lead time(Fastest)	48 to 72 hours	5	6	6-7	12
Mass production lead time(First batch)	7-9	10-12	13-15	16	20
