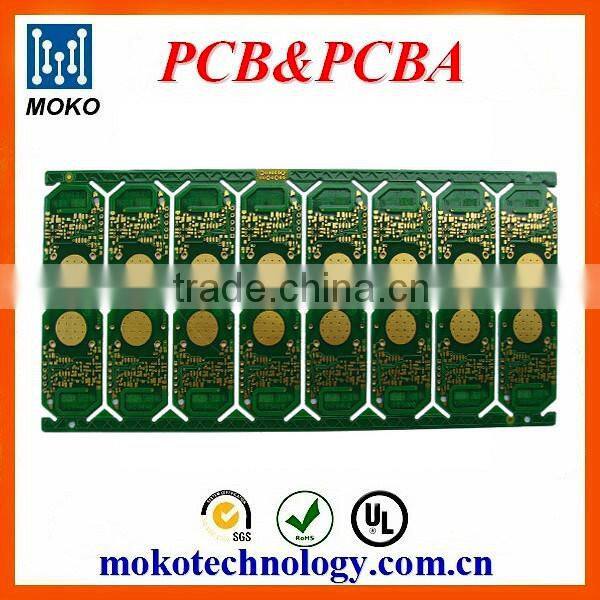

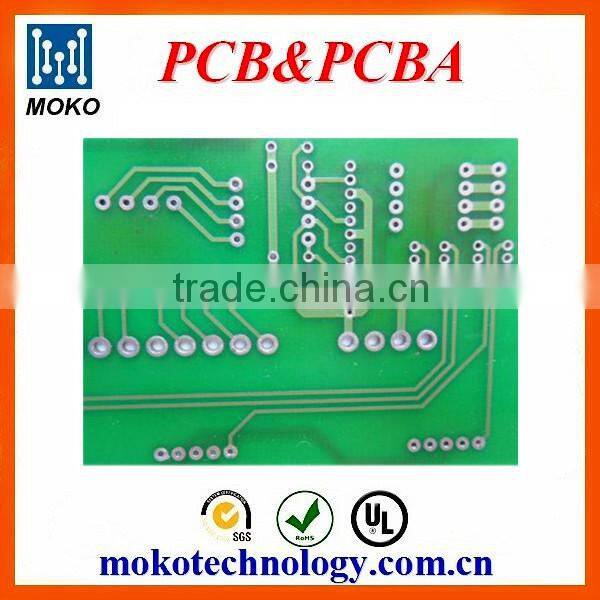

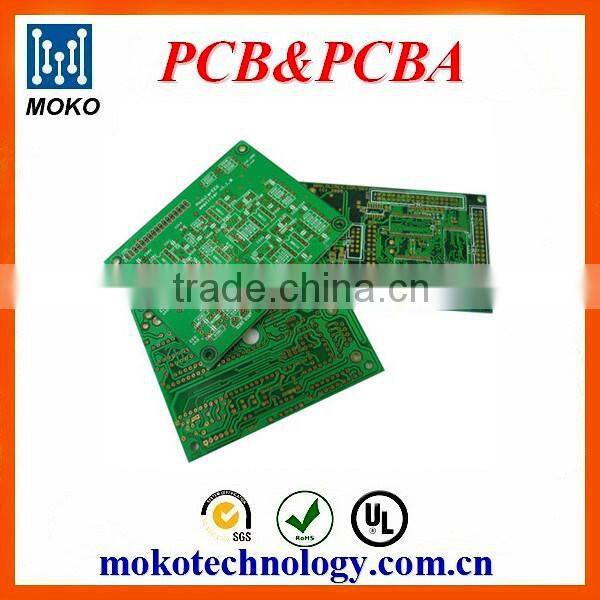

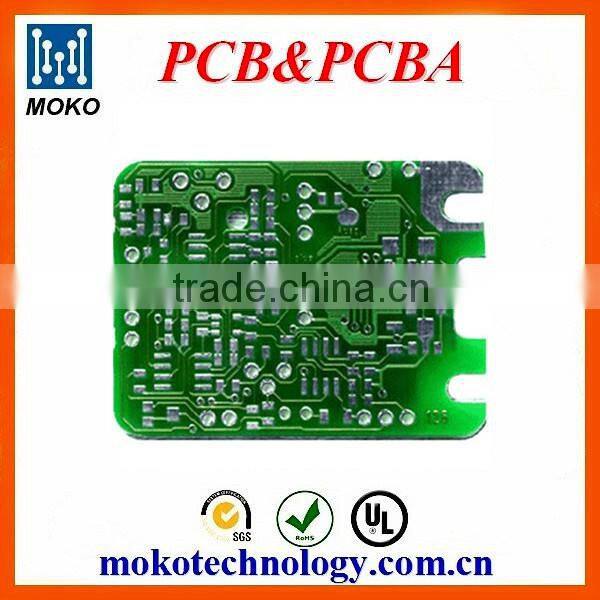

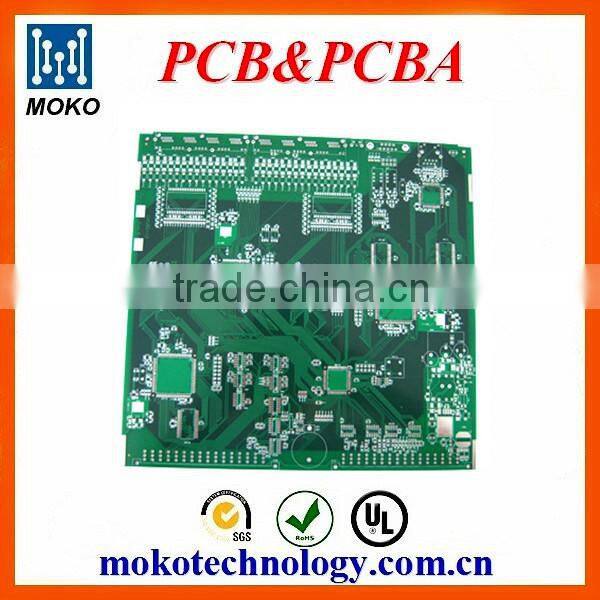

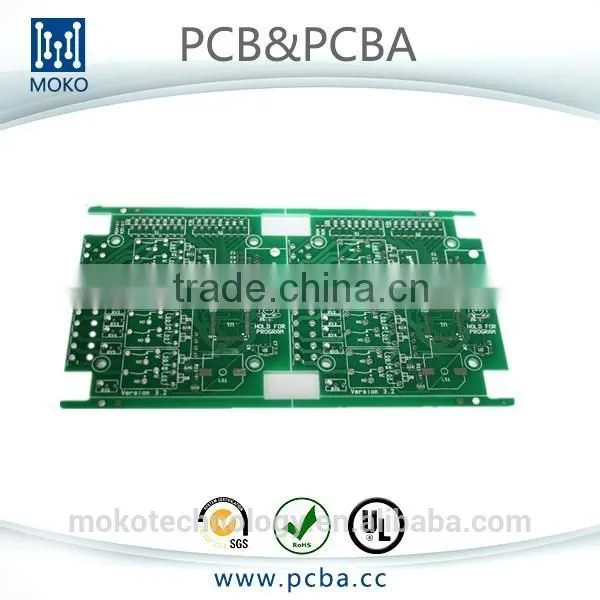

Help CenterElectronic Printed Circuit Boards
US$ 0.2 - 2.2
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MOKO
Model Number:
MK50413BC13
Payment & Shipping
Payment Methods:
Port of Shipment:
SZ/HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Green Solder Mask Double Sided Peelable Mask PCB FabricationNegotiableMOQ: 1 Piece -
Mask Immersion Gold Double Sided Peelable Mask PCB FabricationNegotiableMOQ: 1 Piece
-
1-12layer Lead Free Electronic Pcb and Assembly Pcb SupplierNegotiableMOQ: 1 Piece
-
2layer V-cut Electronic Pcb SupplierNegotiableMOQ: 1 Piece
-
Lead Free HASL Immersion Gold Electronic PCB Manufacturer SupplierNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
MOKO
Model Number
MK50413BC13
Base Material
FR4
Copper Thickness
1oz
Board Thickness
1.6mm
Min. Hole Size
0.25mm
Min. Line Width
0.075mm
Min. Line Spacing
0.075mm
Surface Finishing
HASL
electronic printed circuit boards
- Contract Manufacturing Service
- custom design pcba
- PCB manufacturing
- IC Component Purchasing
- PCB Assembly Service
- Function Testing
Function and Specification:
| 1 | Layers | Single Sided,2 to 18 Layer |
| 2 | Board material type | FR4,CEM-1,CEM-3,ceramic substrate board, aluminum based board, high-Tg, Rogers and more |
| 3 | Compound material lamination | 4 to 6 layers |
| 4 | Maximum dimension | 610 x 1,100mm |
| 5 | Dimension tolerance | ±0.13mm |
| 6 | Board thickness coverage | 0.2 to 6.00mm |
| 7 | Board thickness tolerance | ±10% |
| 8 | DK thickness | 0.076 to 6.00mm |
| 9 | Minimum line width | 0.10mm |
| 10 | Minimum line space | 0.10mm |
| 11 | Outer layer copper thickness | 8.75 to 175µm |
| 12 | Inner layer copper thickness | 17.5 to 175µm |
| 13 | Drilling hole diameter (mechanical drill) | 0.25 to 6.00mm |
| 14 | Finished hole diameter (mechanical drill) | 0.20 to 6.00mm |
| 15 | Hole diameter tolerance (mechanical drill) | 0.05mm |
| 16 | Hole position tolerance (mechanical drill) | 0.075mm |
| 17 | Laser drill hole size | 0.10mm |
| 18 | Board thickness and hole diameter ratio | 10:1 |
| 19 | Solder mask type | Green, Yellow, Black, Purple, Blue, White and Red |
| 20 | Minimum solder mask | Ø0.10mm |
| 21 | Minimum size of solder mask separation ring | 0.05mm |
| 22 | Solder mask oil plug hole diameter | 0.25 to 0.60mm |
| 23 | Impedance control tolerance | ±10% |
| 24 | Surface finish | Hot air level, ENIG, immersion silver, gold plating, immersion tin and gold finger |
