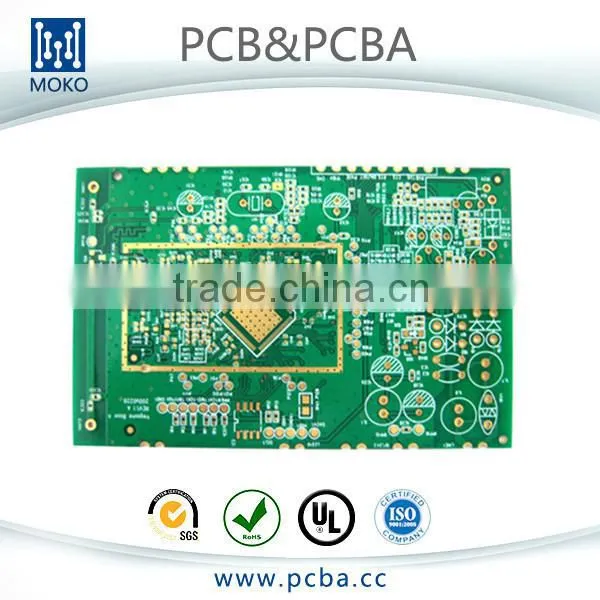

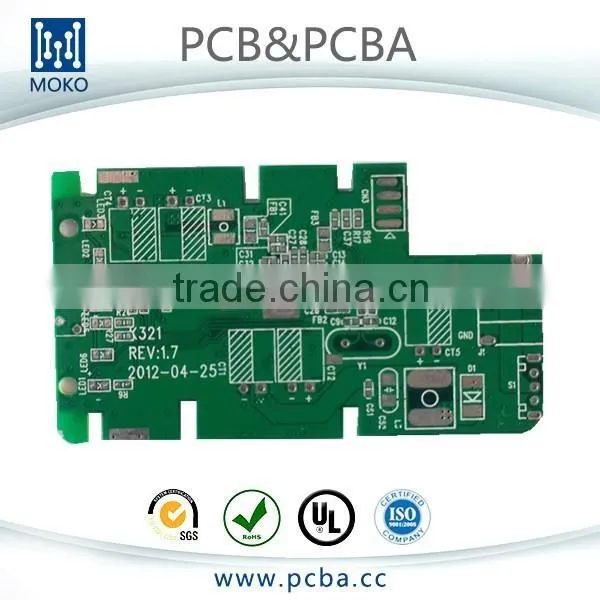

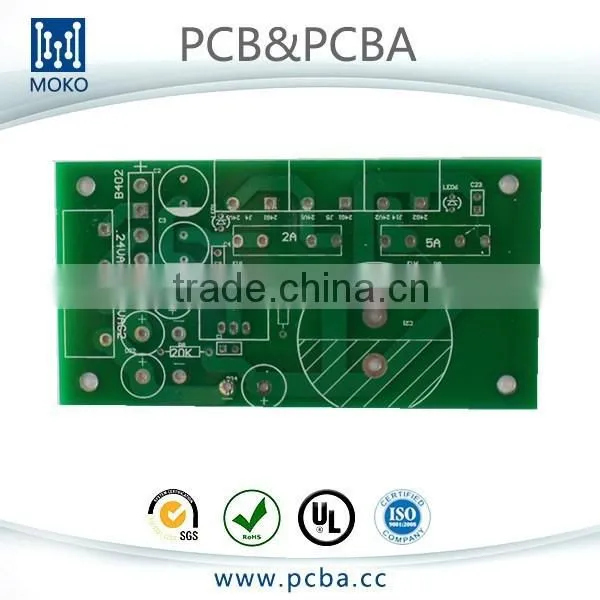

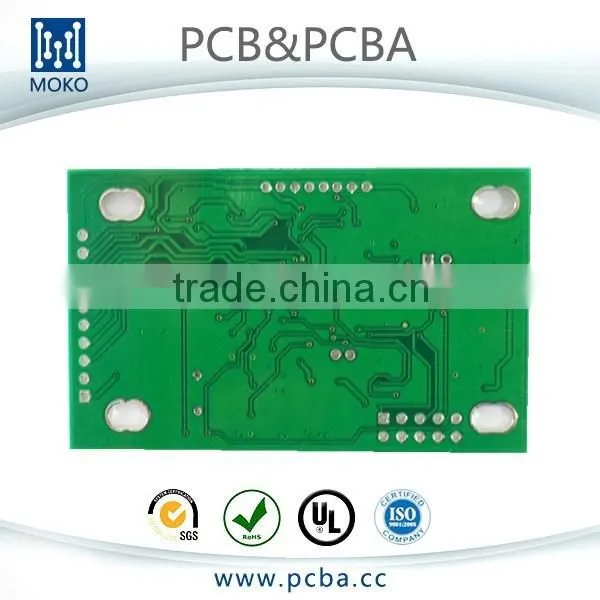

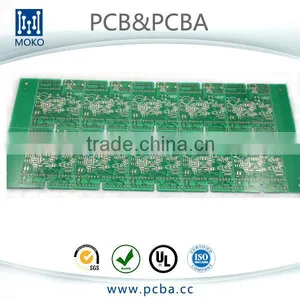

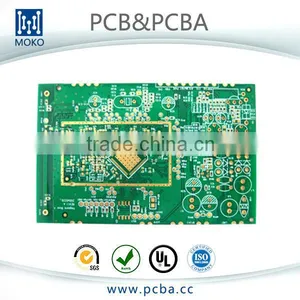

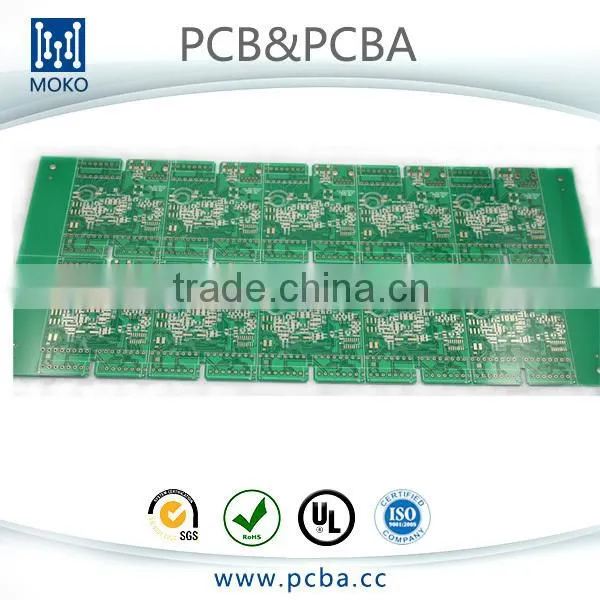

Help CenterCustom Circuit Board Fabrication Pcb Fabrication
Related Products
-
4 Layer FR4 Multilayer ENIG PCB ManufacturerUS$ 1.05 - 1.95MOQ: 1 Piece -
Shenzhen Pcb Assembly Supplier With 8 SMT Lines,2 AI Lines From Yamaha&FujiUS$ 1 - 100MOQ: 1 Piece
-
High Standard SCR Battery Charger With ISO CertificateUS$ 1 - 100MOQ: 1 Piece
-
China Pcb Punch BoardUS$ 1 - 100MOQ: 1 Piece
-
Rigid PCB With Red SoldermaskUS$ 1 - 100MOQ: 1 Piece
Welcome To Moko
MOKO TECHNOLOGY LTD founded in the year 2001,located in shenzhen,China.we are a professional EMS/OEM company;provide one-stop contract electronic manufacturing service for PCB&PCBA.
For assembly,utilizing 8 high-speed SMT lines from Yamaha and Sony, to meet customers' need.
Another,we are 6 years alibaba gold supplier and Trade Assurance Supplier to guarantee your benefit.
Moko, your single point of contact for all of your raw materials, parts, and pcb assembly, also offers:
- Contract Manufacturing
- Engineering Services
- PCB Design & Assembly
- Product Design
- Prototyping
- Cable and Wire Assemblies
- Plastics and Molds
1.Detailed Specification of PCB Manufacturing
| 1 | Layer | 1-30 layer |
| 2 | Material | FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2,Aluminum |
| 3 | Board thickness | 0.2mm-7mm |
| 4 | Max.finished board side | 500mm*500mm |
| 5 | Min.drilled hole size | 0.25mm |
| 6 | Min.line width | 0.075mm(3mil) |
| 7 | Min.line spaceing | 0.075mm(3mil) |
| 8 | Surface finish/treatment | HALS/HALS lead free,Chemical tin,Chemical Gold,Immersion gold Inmersion Silver/Gold,Osp,Gold Plating |
| 9 | Copper thickness | 0.5-4.0oz |
| 10 | Solder mask color | green/black/white/red/blue/yellow |
| 11 | Inner packing | Vacuum packing,Plastic bag |
| 12 | Outer packing | Standard carton packing |
| 13 | Hole tolerance | PTH:±0.076,NTPH:±0.05 |
| 14 | Certificate | UL,ISO9001,ISO14001,ROHS,CQC |
| 15 | Profiling Punching | Routing,V-CUT,Beveling |
| 16 | Assembly Service | Providing OEM service to all sorts of printed circuit board assembly |
2.Detailed Terms for Pcb Assembly
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Quote requirement:
1)Gerber file and Bom list
2)Clear pics of pcba or pcba sample for us
3)Test method for PCBA
3.View of MOKO Produciton
1)ROHS SMT WORKSHOP
2)High Standard Through-Hole Slodring Workshop
3)Good After Testing Service
4)PCBA production process
4.View of MOKO Exhibitions
Why us?
Quality
Our UL/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom product or a complex turnkey production run, Moko will adhere to the highest quality standards.
--------------------------------------------------------------------------------
Capable
Moko offers the latest in assembly capabilities and qualifications insuring that quality is built into every product we produce.
--------------------------------------------------------------------------------
Experience
When it comes to your build you want a partner you can depend on. Our management team has over 10years of combined industry knowledge. Our engineering team has over 7 years experience.
--------------------------------------------------------------------------------
Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.
--------------------------------------------------------------------------------
Flexibility
We pride ourselves on our ability to custom tailor programs around our customers' needs. We take time to listen to your unique business needs and then set out to surpass them.
Q:What's files do you use in the bare board fabrication?
A:Gerber RS-274X,274D,Eagle and AutoCAD's DXF,DWG
Q: Will our PCB files be checked?
A: Yes. Your data will be checked by our Engineers Team. If we find any technical issues or have any enquires we will contact you and solve the problems together.
Q:What's files do you need in the PCBA projects?
A:Exclude the pcb file, the PNP(Pick and Place) file and Components Position file also needed.
Q: How can i know the processing about my PCB or PCBA order?
A: Each Customer will have a sale to contact with you. MOKO working hours:AM9:00-PM6:00(Beijing Time) from Monday to Friday. We will reply your email in 2 hours in our working time. And you also can contact with our sales's cell phone if urgent.
Q: Dose our product will be tested before shipment?
A: Yes, we could provide Function Circuit Testing if you provide us the testing methods.
