Welcome To MOKO

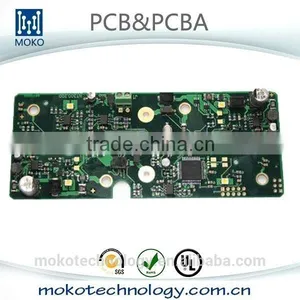

( MOKO OEM PCBA for medical products)
PCB fabrication, component sourcing, pcb assembly, and free function test!
- Contract Manufacturing
- MOKO OEM PCBA for medical products
- Engineering Services
- PCB Fabrication & Assembly
- Component sourcing
- Free function test
- Cable and Wire Assemblies
- Plastics and Molds
We have adapted and developed our capabilities and skill set to meet every customer requirement, from the manufacture of a selective item through to complete project management. With rich experience within pcb fabrication, components sourcing and pcb assembly service. As a professional pcb&pcba manufacturer, To reach the highest quality and most exacting standards is our mission.
Take advantage of our strength and experience and allow us to help you maintain your competitive edge. we are well positioned to support our customers through the entire product life cycle, from concept to volume production.
1.PCB Fabication and Assembly Capability:
| 1 | Layers | Single Sided, double sided, multi layers |
| 2 | Board material type | FR4,CEM-1,CEM-3,ceramic substrate board, aluminum based board, high-Tg, Rogers and more |
| 3 | Assembly Types | SMT and Thru-hole |
| 4 | Maximum dimension | 610 x 1,100mm |
| 5 | Dimension tolerance | ±0.13mm |
| 6 | Board thickness coverage | 0.2 to 6.00mm |
| 7 | Board thickness tolerance | ±10% |
| 8 | DK thickness | 0.076 to 6.00mm |
| 9 | Minimum line width | 0.10mm |
| 10 | Minimum line space | 0.10mm |
| 11 | Outer layer copper thickness | 8.75 to 175µm |
| 12 | Inner layer copper thickness | 17.5 to 175µm |
| 13 | Drilling hole diameter (mechanical drill) | 0.25 to 6.00mm |
| 14 | Finished hole diameter (mechanical drill) | 0.20 to 6.00mm |
| 15 | Hole diameter tolerance (mechanical drill) | 0.05mm |
| 16 | Hole position tolerance (mechanical drill) | 0.075mm |
| 17 | Laser drill hole size | 0.10mm |
| 18 | Board thickness and hole diameter ratio | 10:1 |
| 19 | Solder mask type | Green, Yellow, Black, Purple, Blue, White and Red |
| 20 | Minimum solder mask | Ø0.10mm |
| 21 | Minimum size of solder mask separation ring | 0.05mm |
| 22 | Solder mask oil plug hole diameter | 0.25 to 0.60mm |
| 23 | Impedance control tolerance | ±10% |
| 24 | Surface finish | Hot air level, ENIG, immersion silver, gold plating, immersion tin and gold finger |
♦ All of the above description is to demonstrate the ability of our factory, if you have specific requirements, please contact us.
2.Lead time
-PCB: 7 to 10 days
-PCBA: 20 to 25 days
3.Specifications needed for quotation
-PCB file or Gerber file.
-Board material, surface finish, thickness, copper size, and quantity.
-BOM list.
4.Our Advantages
-9 years producing experience
-alibaba 6 years golden supplier
-ISO9001:2008, UL, and ROHS certificates
-PCBA with free function test and 2 years warranty
5.View of MOKO Factory and MOKO made products
