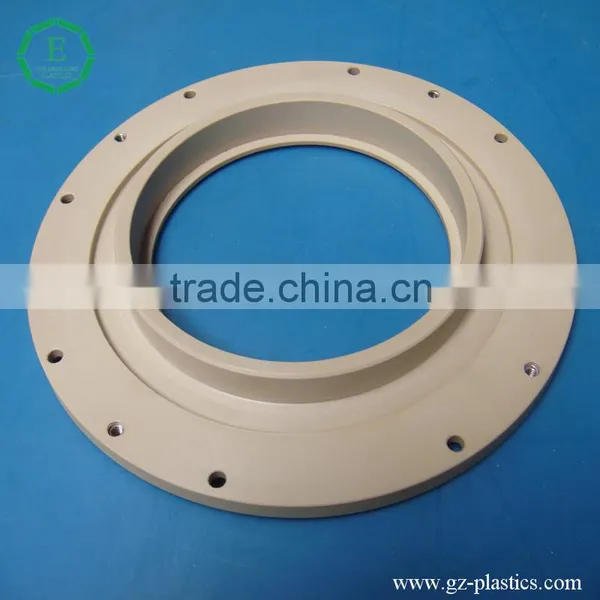

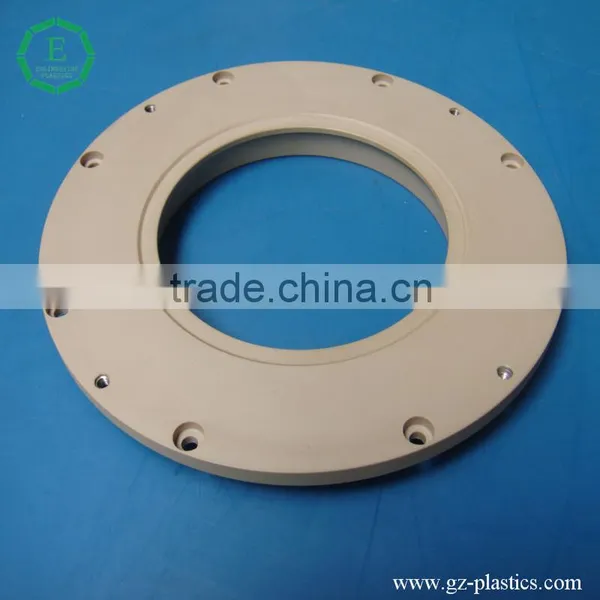

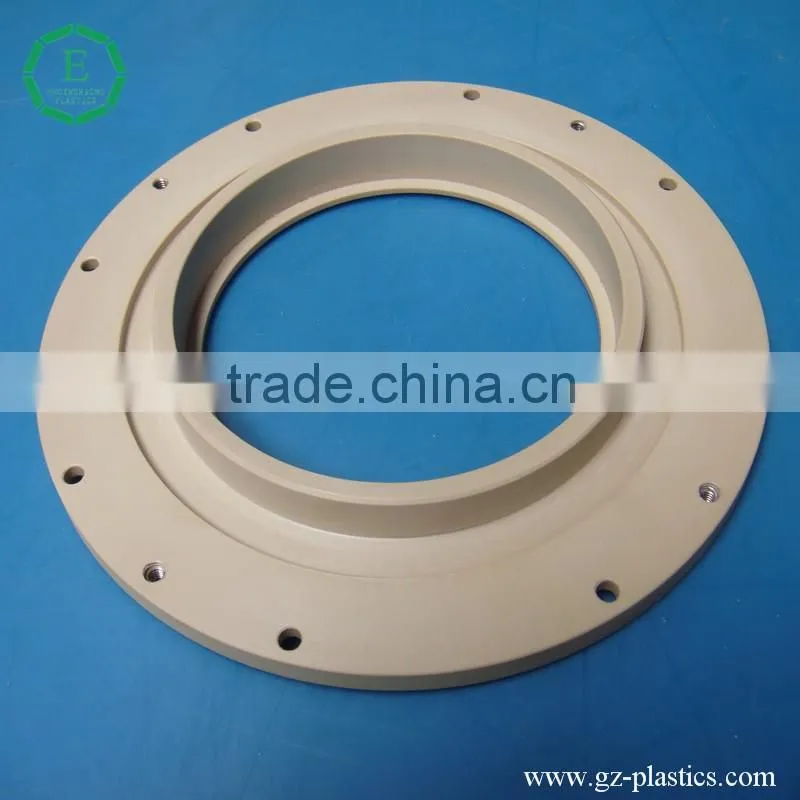

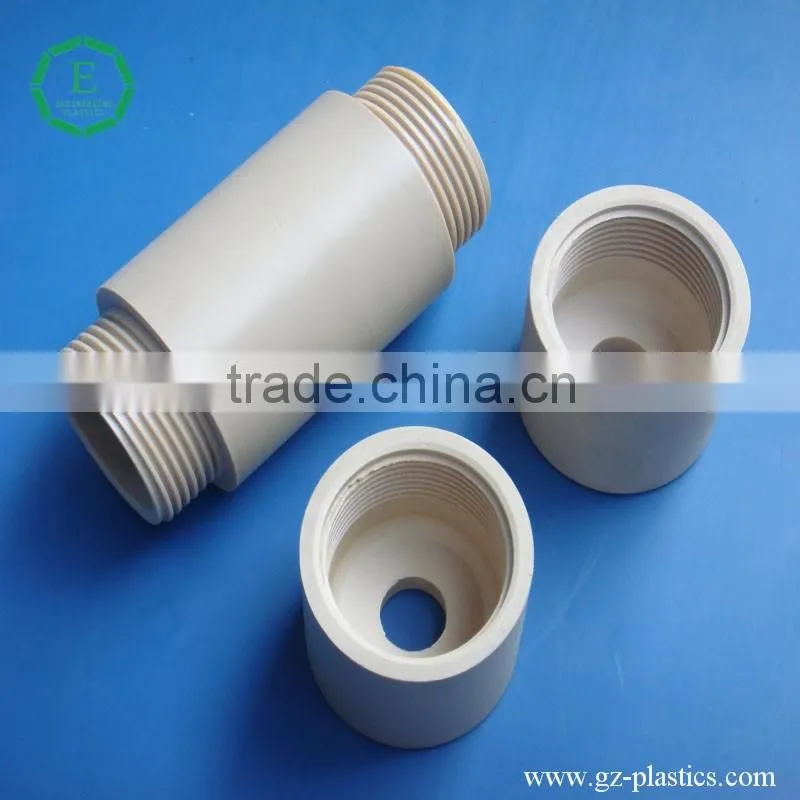

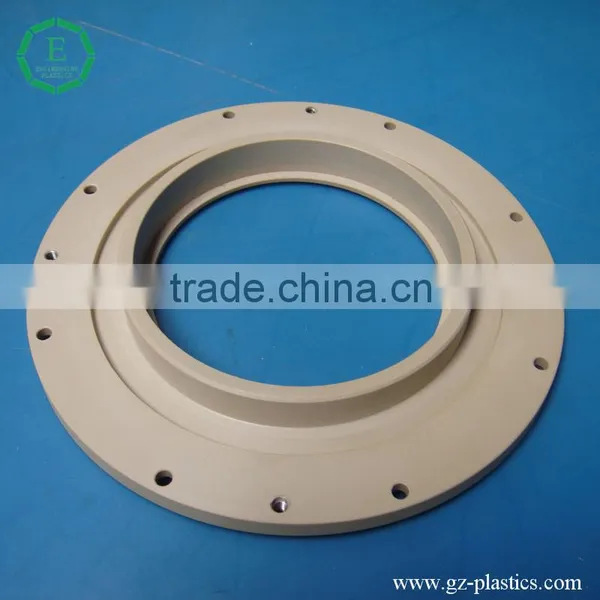

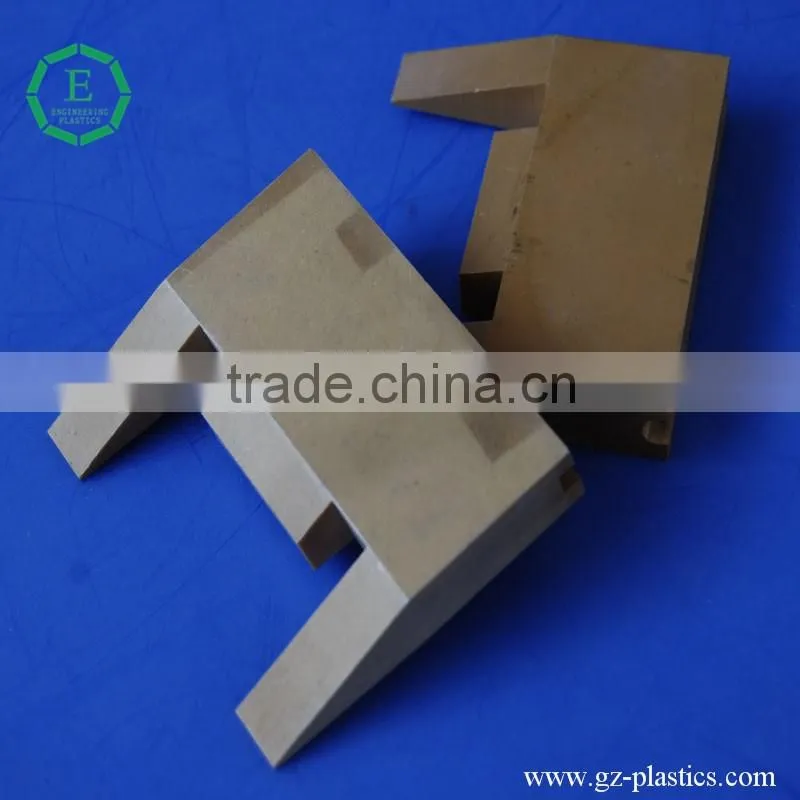

PEEK-HPV part:
General Product Introduction:
| Name | PEEK-HPV part |
| Material | PEEK-1000 / PA 66 MC nylon/PU/HDPE/ UHMW-PE/POM/ Teflon/ PVDF/ PPS/PSU etc. |
| Advantage | One-stop procurement |
| Diameter | 1-200mm,or customized |
| Density | 1.5g/m² |
| Size | Customized as you drawing |
| Price | Factory price |
| OEM/ODM | Yes |
| Free sample | Yes, 2 days for sample; 7 days for production. |
| Shape | rack,sheet, rod, tube, gear, pulley, guide rail, etc... |
| Certification | ISO9001,SGS,FDA,RoHS,Test Report,ect... |
| Packing | Plastic bags,Cartons,Wodden case,Pallet,Container & customized |
| Payment | Alibaba trade assurance,PayPal, Escrow, Western union, Money Gram, T/T and cash payment. |
Material Introduction:
PEEK(Polyetheretherketone)is a kind of heat-resistant, high performance thermoplastic special engineering plastics. It has good mechanical properties and chemical resistance, abrasion resistance, and hydrolysis resistance properties etc.; it has a light proportion and self-lubricating properties. Guangzhou Engineering Plastics Industries (Group) Company, has studied and applied this material in many industries for many years. Due to very good processing properties, it can be filled with carbon fiber, Fiberglass and MoS2 etc. In order to improve lubrication performance and mechanical strength further.
Material characteristics:
1. Excellent dimensional stability
2. Low coefficient of linear thermal expansion
3. Good mechanical properties at elevated temperatures
4. Good resistant to hot water and steam
5. Bearing grade PEEK has excellent wear characteristics
6. UL 94 V-0 flammability rating (0.059" thickness)
7. Very low smoke and toxic gas emissions when exposed to flame
8. Outstanding mechanical properties even at high temperatures
9.Optimized balance of stiffness, tensile strength and impact strength.
10.Continuous operating temperature up to + 260°C and briefly even up to +300°C
Applications and products:
1. Seals, Gears, Fittings
2. Aerospace parts, Valve Seats,
3. Semiconductor machinery components
4. Medical instrument parts
5. Bearings and bushings (bearing grade PEEK)
6. Electrical components
7. Pump and valve components, Wafer Carriers, Piston Rings
8. Food processing machinery components.
Material parameter table:
Product Features:
Our workshop & prodution line:
