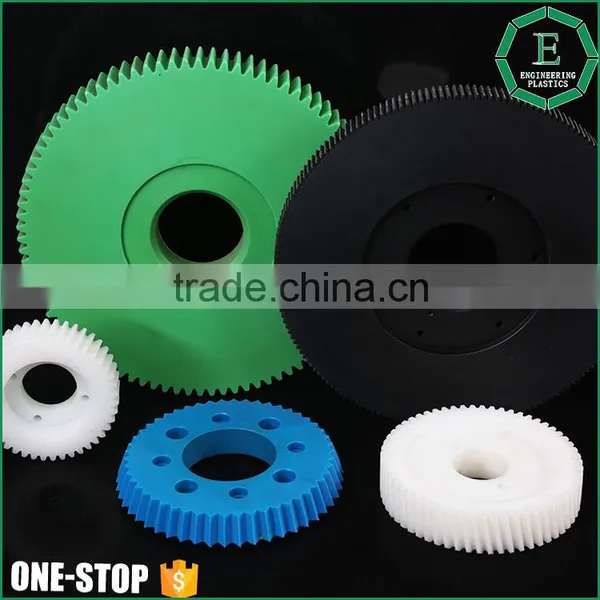

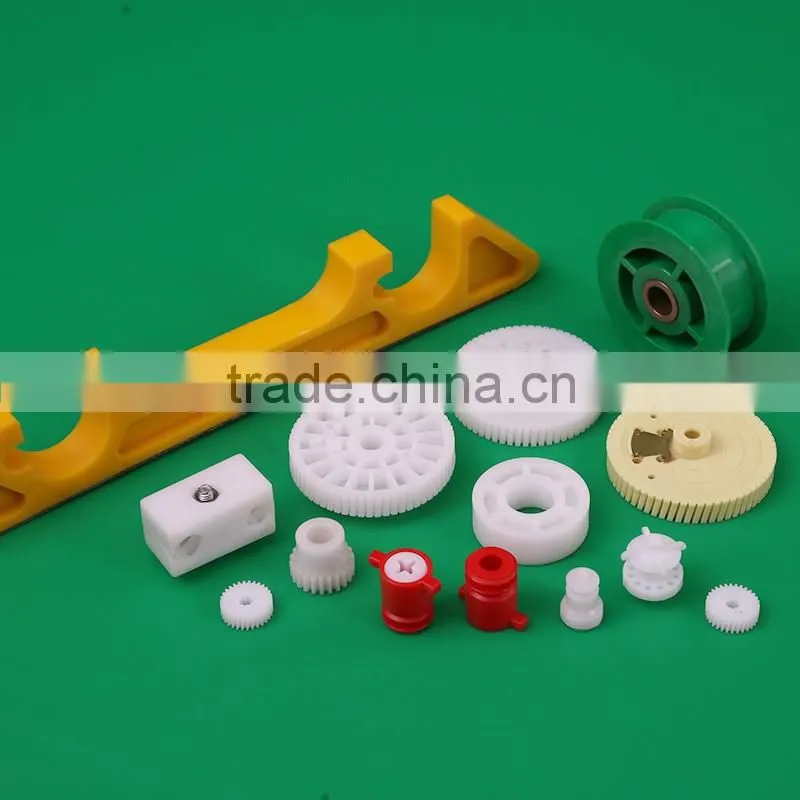

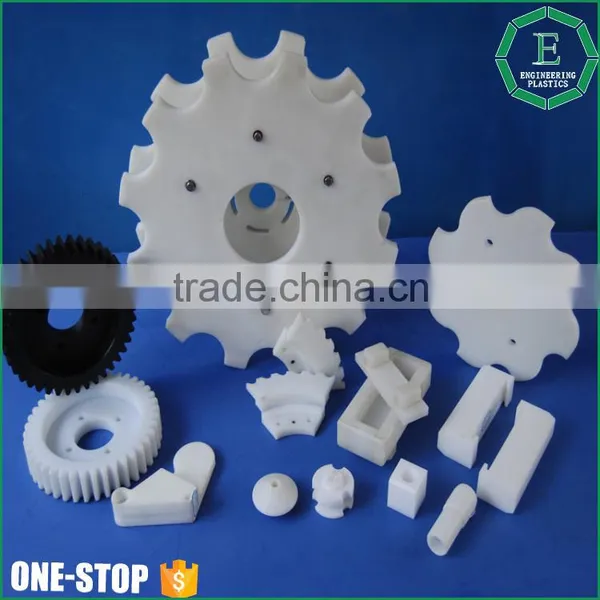

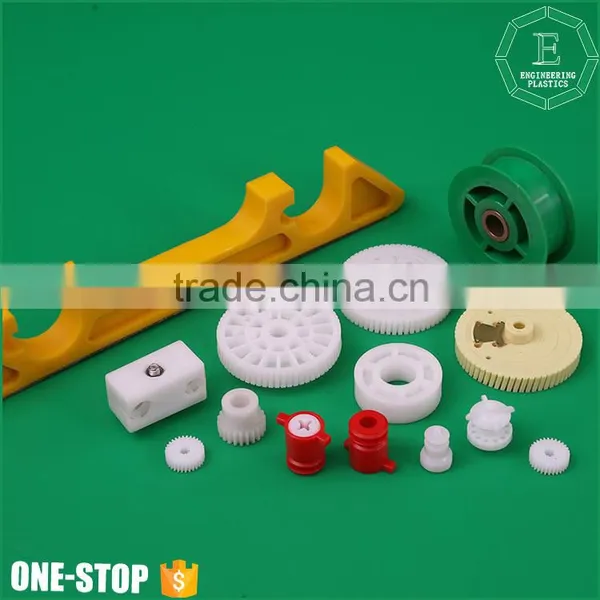

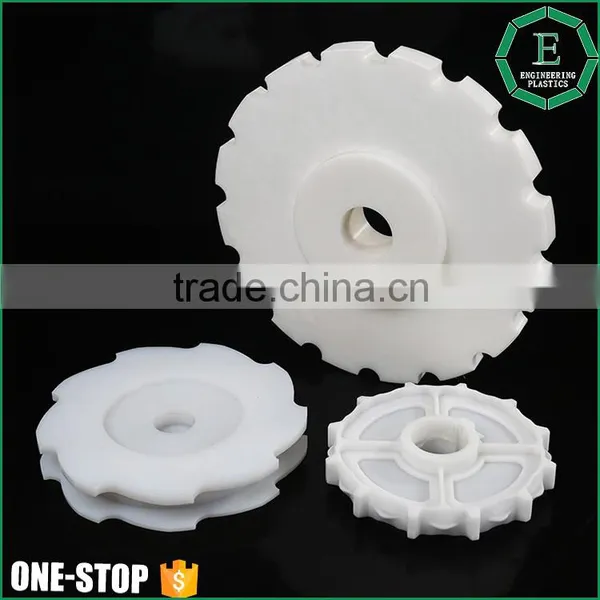

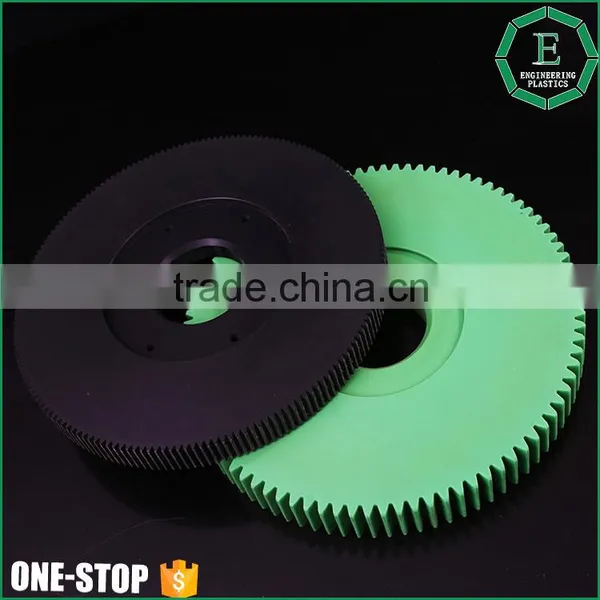

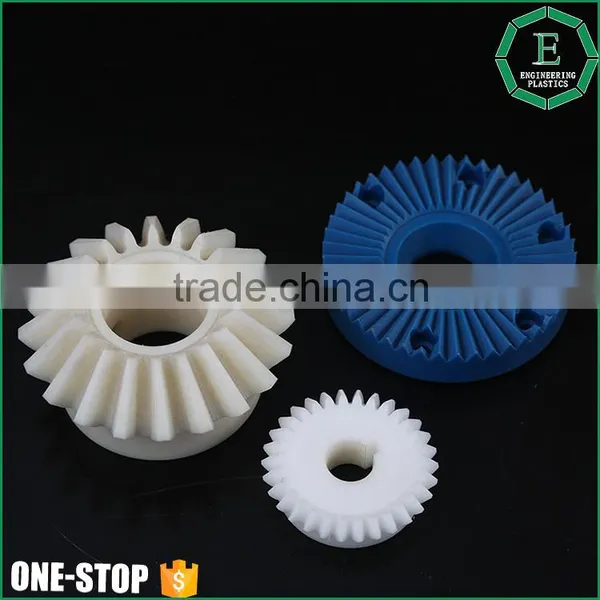

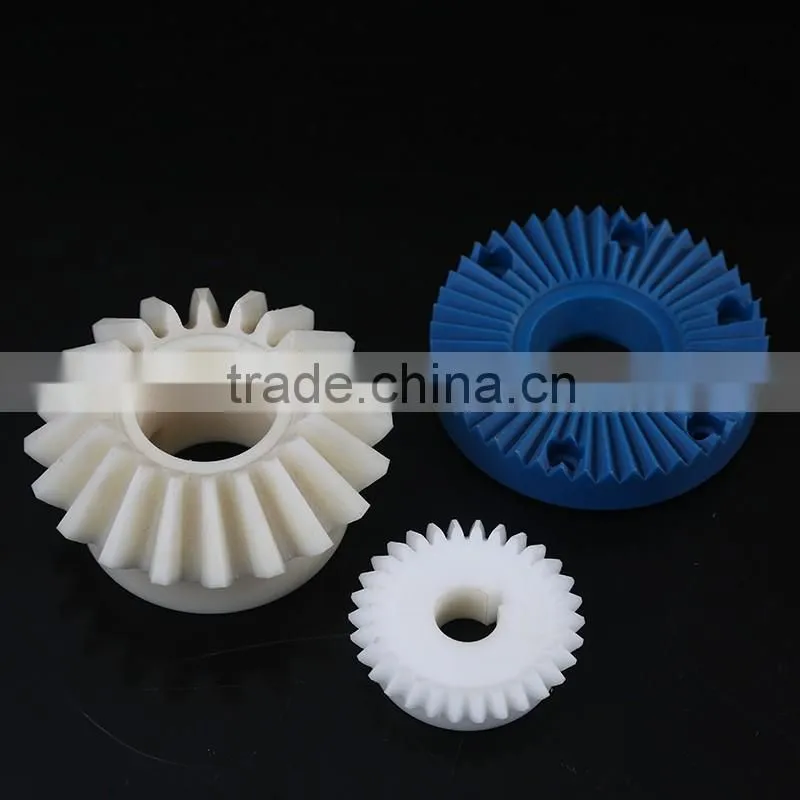

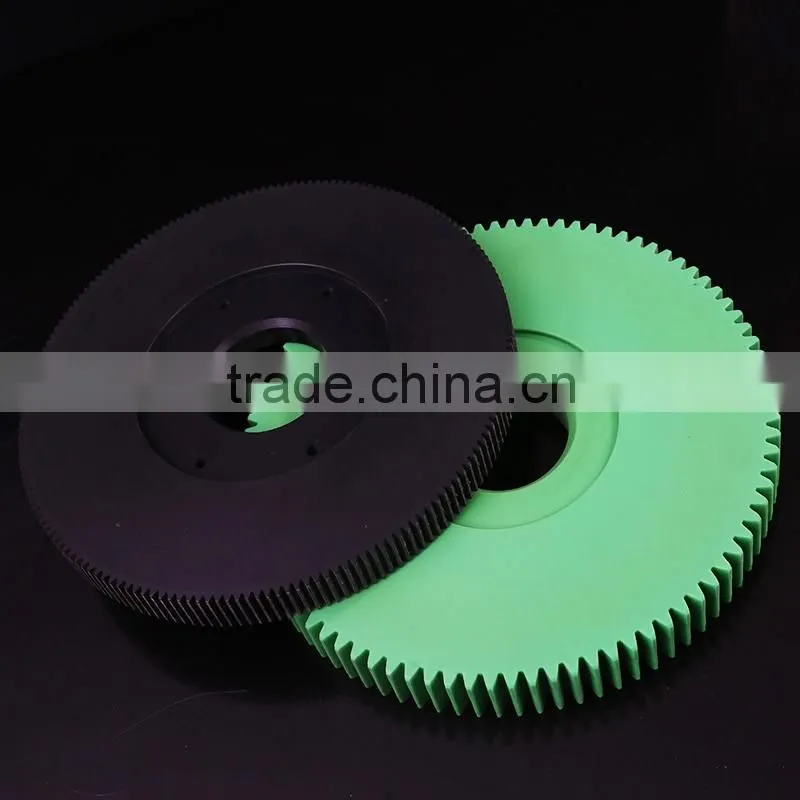

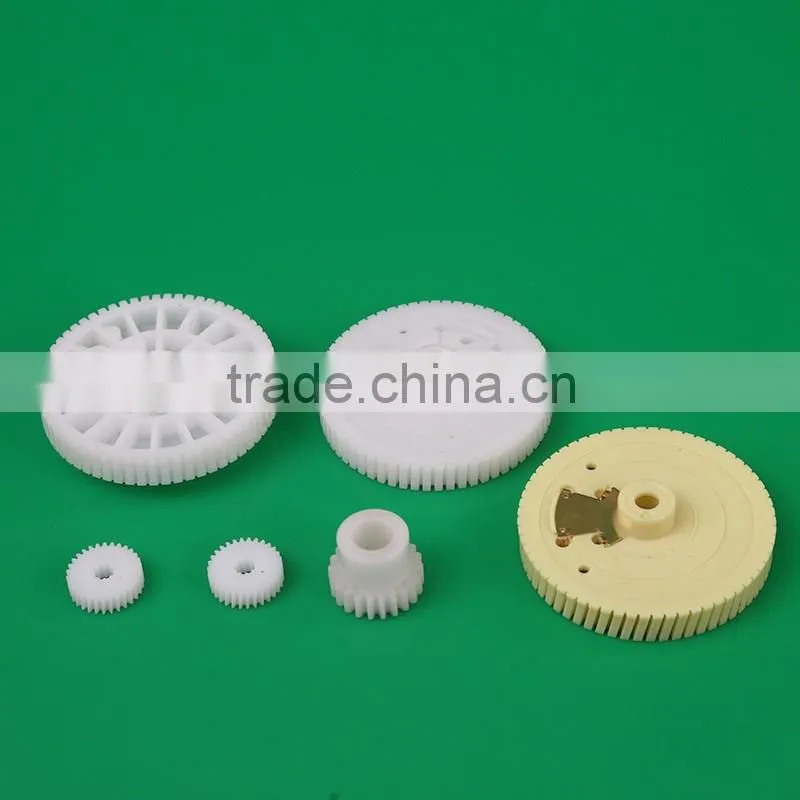

OEM ODM free sample customizing small or large cnc machined derlin acetal plastic gears POM gear
POM (Full-name: Polyformaldehyde), is a engineering plastics of non-side-chain, high density, high crystalline and linear polymer, which is praised Plastic Steel, and has comprehensive excellent performances, such as: wear-resistance, high hardness, anti-impregnant, good rigidity (Tensile modulus of elasticity), chemical stability, isolation resistance and dimensional stability. POM has widely applied in Automobile industries, electronic and electric products, commodity, pipeline & fittings, exact apparatus and so on, which can be instead of the bronze, Zinc, tin and other metals.
Except POM-H, is often copolymerized with ethylene oxide together, in order to avoid the melting of POM material in the high temperature. POM-H has the better performances than POM-C in its high crystalline, mechanical strength and rigidity. And POM-C has the better performances than POM-H in its low melting point, temperature stability, fluxion characteristic and machining capability.
Father more, POM-H+PTFE, which is made from the Delrin POM Resin that maxed Teflon fiber symmetrically, has the low co-efficient of frication, good lubrication, wear-resistance, non-creepage resistance.
Automobile industries: POM has a large application in car industries, because the mechanical parts made by POM, which has the advantages of high mechanical strength, high hardness, good wear-resistance, low co-efficient of friction, easy to maintain, reducing cost and so on, can be used in cars instead of coppery half stalk and planet gear. It not only saving copper materials, but also improving service life. At the engine fuel system, components for hose valves and case cover of radiator, cooling fluid's standby case, water valve, oil box' cover, pump impeller, shell of gasification machine and accelerator pedal and so on.
Electronic and electric Industries: because of its lower power consuming, high dielectric strength and insulation resistance and electronic arc resistance, POM has widely applied in electronic and electric Industries, such as: shell of electronic spanner, shell of electronic scissors, shell of coal drilling machine ,handle of switch, parts also for phone, wireless recorder, video tape recorder, television, computer, electrograph, calculagraph, bracket of recorder tape and so on.
Agricultural machine: part of manual sprayer, joint and transport part of seeder, parts of milk machine, shell of irrigation and drainage, valve, joint and bush of water and so on.
Other field:
Pharmacy & packing Machine: transporting screw, planet gear, gear bar, chain wheel and cushion bar and so on.
Construction industries: water tap, window frame, wash pot, water tank, pulley for portiere, shell of water meter and tie-in of water pipe.
Property of POM:
Property |
Item No. |
Unit |
POM-C |
POM-H |
POM-H+PTFE |
|
Mechanical Properties |
1 |
Density |
g/cm3 |
1.41 |
1.43 |
1.50 |
2 |
Water absorption(23℃ in air) |
% |
0.20 |
0.20 |
0.17 |
|
3 |
Tensile strength |
MPa |
68 |
78 |
55 |
|
4 |
Tensile strain at break |
% |
35 |
35 |
10 |
|
5 |
Compressive stress(at 2%nominal strain) |
MPa |
35 |
40 |
37 |
|
6 |
Charpy impact strength (unnotched) |
KJ/m2 |
≥150 |
≥200 |
≥30 |
|
7 |
Charpy impact strength (notched) |
KJ/m2 |
7 |
10 |
3 |
|
8 |
Tensile modulus of elasticity |
MPa |
3100 |
3600 |
3200 |
|
9 |
Ball indentation hardness |
N/mm2 |
140 |
160 |
140 |
|
|
10 |
Rockwell hardness |
- |
M84 |
M88 |
M84 |
| Name | Plastic gear POM gear |
| Material | PU/ UHMW-PE/MC Nylon/PA66/POM/ Teflon/ PVDF/ PPS/PEEK/PSU etc. As your like. |
| Color | Natural,Black,Yellow,Red,ect. Customized, any color is ok |
| Diameter |
5-200mm,or customized |
| Density |
1.5g/ cm2 |
| Condition | In stock/Made to order |
| Price | Factory price offered |
| OEM/ODM | Customers provide design or photo or we create design according to customers' requirements. |
| Certification | ISO9001,SGS,FDA,RoHS,Test Report,ect. |
| Free Sample | Yes |
| Shape | sheet, rod, tube, gear, pulley, guide rail, and so on |
| Advantage |
One stop procurement |
| Leading Time | 10-20 days depend on your order quantity. |
| Payment | PayPal, Escrow, Western union, Money Gram, T/T and cash payment. |
| Packing |
Plastic bags,Cartons,Wodden case,Pallet,Container,ect. |
| Other |
24 hours instant and comfortable customer service. Shipping status notification during delivery. Regular notification of new styles & hot selling styles. |
