Electronic Passive Components Pcb Assembled

Welcome To Moko

Moko, your single point of contact for all of your raw materials, parts, and PCB assembly, also offers:

- Contract Manufacturing

- Engineering service

- Pcb design&assembly

- Product design

- prototyping

- Cable and wire assemblies

- Plastics and moulds

1.Detailed Specification of PCB Manufacturing

2.Detailed Terms for Pcb Assembly

Technical requirement:

1)Professional surface-mounting and thourgh-hole sodering service technology

2)Various sizes like 1206,0805,0603 components smt technology.

3)ICT(In cercuit test),FCT(Functional circuit test)technology.

4)Pcb assembly with UL,CE,FCC,Rohs approval.

5)Nitrogen gas reflow soldering technolohy for smt.

6)High standard smt&solder assembly line.

7)High density interconnected board placement technology capacity.

Quote requirement:

1.Gerber file of the bare board pcb

2.BOM(bill of material)for assembly

3.To short the leadtime,pls kindly advise ous if there is any acceptable components substitution

4.Testing guide&test fixture is necessary

5.Programming files&programing tool if necessary

6.Schematic if necessary

OEM/ODM/EMS Services for PCBA:

1.PCBA PCB Assembly:SMT&PTH&BGA

2.PCBA and enclosure design:

3.Components sourcing&purchasing

4.Quick prototyping

5.Plastic injection molding

6.Metal sheet stamping

7.Final assembly

8.Test:AOI,ICT(In circuit test),FCT(Functional circuit test)

9.Custom clearance for material importing and product exporting

Orientronic PCB assembly Equipment:

· SMT Machine: SIEMENS SIPLACE D1/D2 / SIEMENS SIPLACE S20/F4

· Reflow Oven: FolunGwin FL-RX860

· Wave Soldering Machine: FolunGwin ADS300

· Automated Optical Inspection (AOI): Aleader ALD-H-350B

· Fully Automatic SMT Stencil Printer: FolunGwin Win-5

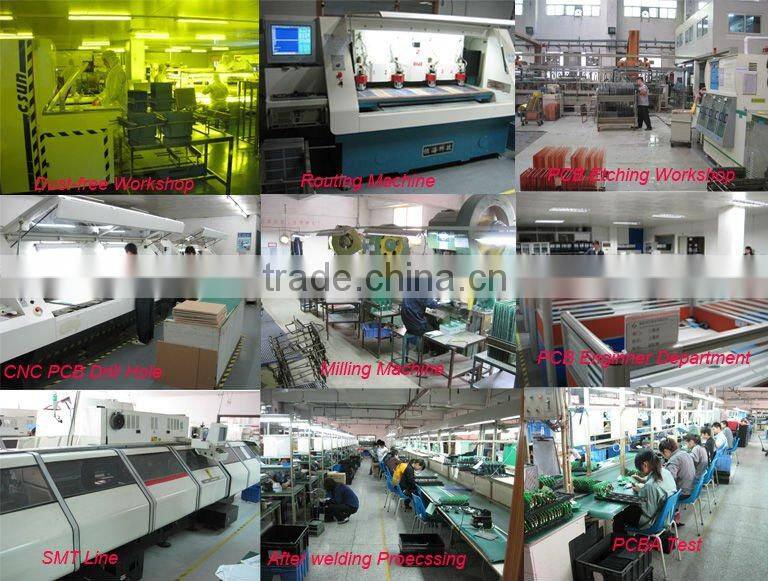

3.View of MOKO Factory

1)ROHS SMT WORKSHOP

2)High Standard Through-Hole Slodring Workshop

3)Good After Testing Service

4.Order Process

Why us?

Quality

Our UL/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom product or a complex turnkey production run, Moko will adhere to the highest quality standards.

Capable

Moko offers the latest in assembly capabilities and qualifications insuring that quality is built into every product we produce.

Experience

When it comes to your build you want a partner you can depend on. Our management team has over 10years of combined industry knowledge. Our engineering team has over 7 years experience.

Protecting your interests

Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.

Flexibility

We pride ourselves on our ability to custom tailor programs around our customers' needs. We take time to listen to your unique business needs and then set out to surpass them
