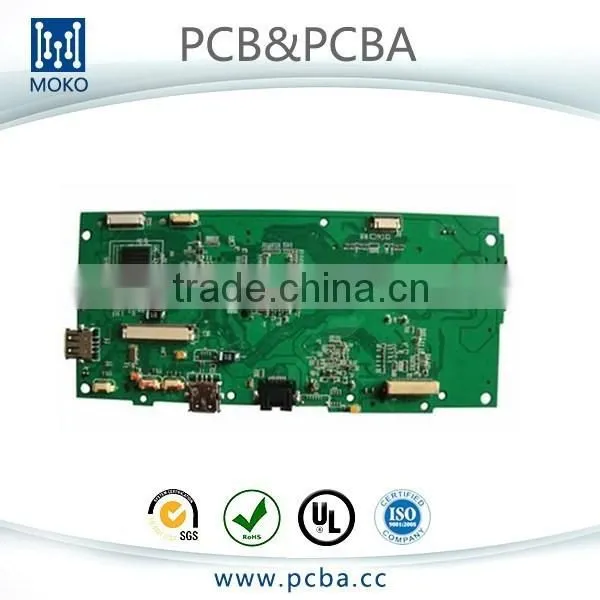

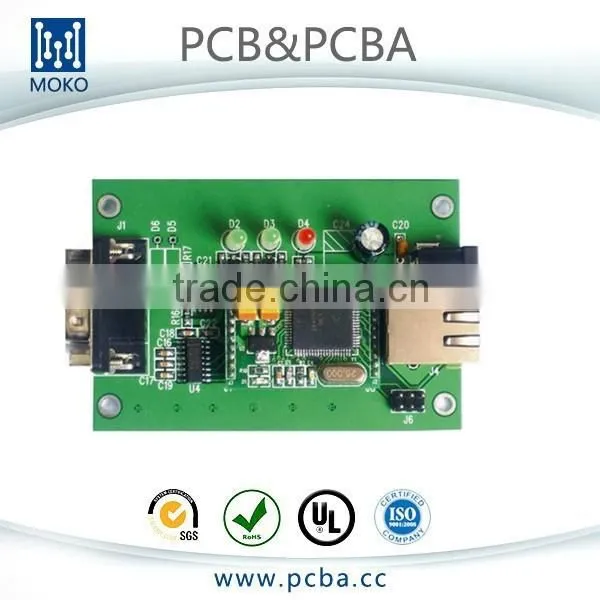

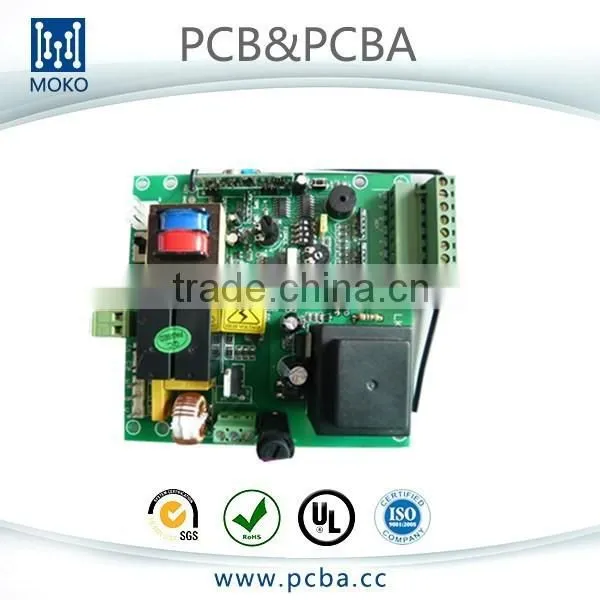

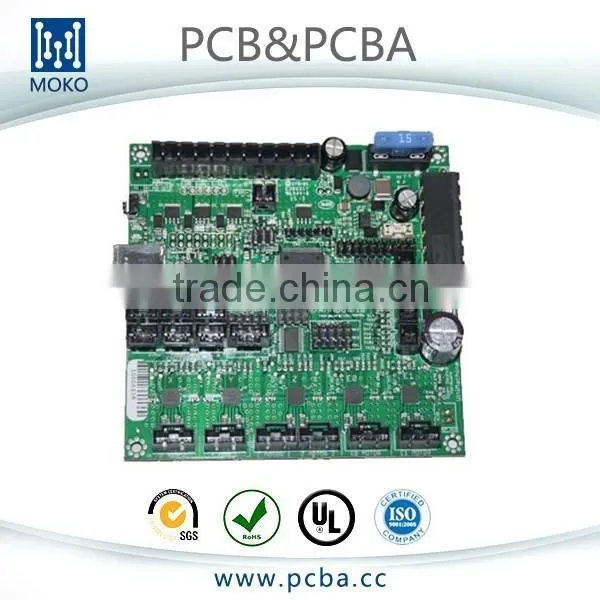

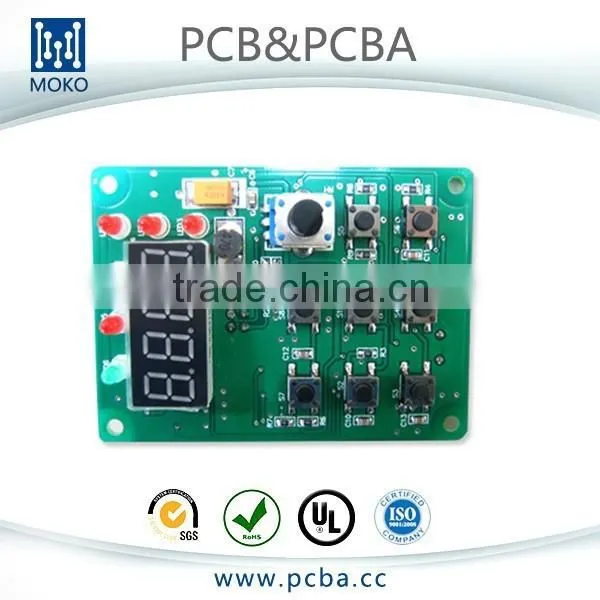

Help CenterIndustry Control Pcb Assembly, SMT DIP Pcb Assembly
Related Products
-
Electronics Inverter PCBA Service & Inverter PCB AssemblyUS$ 3.25 - 6.45MOQ: 1 Piece -
Industrial Controller PCBA Board With 4 LayersUS$ 1 - 10MOQ: 1 Piece
-
Custom Industrial Control PCBA ManufacturerUS$ 0.1 - 100MOQ: 1 Piece
-
Professional Industrial Electronic Controller PcbaUS$ 0.1 - 100MOQ: 1 Piece
-
PCB Assembly Supply With Industrial BoardsUS$ 0.1 - 100MOQ: 1 Piece
Welcome to Moko
PCB board manufacture and PCBA service:
o PCB board file with parts list provided by customers
o PCB board made, circuit board parts purchased by us
o PCB board with parts assembled
o Electronic testing circuit board or PCBA
o Fast delivery, anti-static package
o RoHS Directive-compliant, lead-free
o One stop service for PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery
Detailed terms for PCB assembly:
Technical requirement:
§ Professional surface-mounting and through-hole soldering technology
§ Various sizes like 1206, 0805, 0603 components SMT technology
§ ICT (In Circuit Test), FCT (Functional Circuit Test) technology
§ PCB assembly with UL, CE, FCC, RoHS approval
§ Nitrogen gas reflow soldering technology for SMT
§ High standard SMT and solder assembly line
§ High density interconnected board placement technology capacity
Quote requirement:
§ Gerber file and Bom list
§ Clear pics of pcba or pcba sample for us
§ Test method for PCBA
PCB and PCBA specification:
1 |
layer |
1-18 layer |
2 |
Material |
FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2 |
3 |
Board thickness |
0.2mm-4mm |
4 |
Max.finished board side |
800*508mm
|
5 |
Min.drilled hole size |
0.25mm |
6 |
min.line width |
0.075mm(3mil) |
7 |
min.line spaceing |
0.075mm(3mil) |
8 |
Surface finish/treatment |
HALS/HALS lead free,Chemical tin,Chemical Gold, Immersion gold Inmersion Silver/Gold,Osp,Gold Plating |
9 |
Copper thickness |
0.5-4.0oz |
10 |
Solder mask color |
green/black/white/red/blue/yellow |
11 |
Inner packing |
Vacuum packing,Plastic bag |
12 |
Outer packing |
standard carton packing |
13 |
Hole tolerance |
PTH:±0.076,NTPH:±0.05 |
14 |
Certificate |
UL,ISO9001,ISO14001,ROHS,CQC |
15 |
profiling punching |
Routing,V-CUT,Beveling |
16. providing OEM service to all sorts of printed circuit board assembly | ||
Why us?
Quality
Our UL/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom
product or a complex turnkey production run, Moko will adhere to the highest quality standards.
--------------------------------------------------------------------------------
Capable
Moko offers the latest in assembly capabilities and qualifications insuring that quality is built
into every product we produce.
--------------------------------------------------------------------------------
Experience
When it comes to your build you want a partner you can depend on. Our management team has over
10years of combined industry knowledge. Our engineering team has over 7 years experience.
--------------------------------------------------------------------------------
Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working
under a strict confidentiality contract and treat your important documentation as they would their
own.
--------------------------------------------------------------------------------
Flexibility
We pride ourselves on our ability to custom tailor programs around our customers' needs. We take time
to listen to your unique business needs and then set out to surpass them.
Send Inquiry to This Supplier
