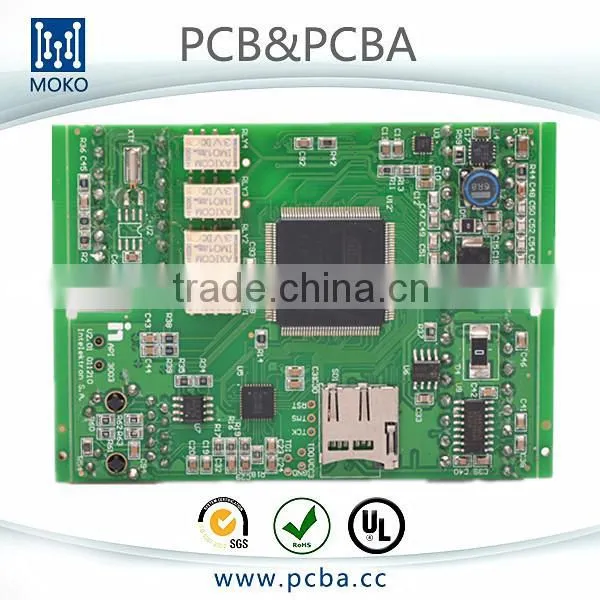

contract manufacturer pcba, electronic pcba, industry pcba

Name: contract manufacturer pcba, electronic pcba, industry pcba
Brand: MOKO
Price: USD $0.2 - 2.2 / Piece

FOB Price

USD $0.2 - $2.2 / Piece

100 Pieces(Min.Order)

Supply Ability 300000 Square Meter / Square Meters per Month
Port SZ/HK
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	MOKO	Model Number:	MK50413BC13
Base Material:	FR4	Copper Thickness:	1oz	Board Thickness:	1.6mm
Min. Hole Size:	0.25mm	Min. Line Width:	0.075mm	Min. Line Spacing:	0.075mm
Surface Finishing:	HASL

Packaging Details

Anti-static package with high quality carton box

Product Description

contract manufacturer electronic industry pcba

- Contract Manufacturing Service

- industry pcba

- PCB manufacturing
- IC Component Purchase
- PCB Assembly Service
- Function Testing

Function and Specification:

1	Layers	Single Sided,2 to 18 Layer
2	Board material type	FR4,CEM-1,CEM-3,ceramic substrate board, aluminum based board, high-Tg, Rogers and more
3	Compound material lamination	4 to 6 layers
4	Maximum dimension	610 x 1,100mm
5	Dimension tolerance	±0.13mm
6	Board thickness coverage	0.2 to 6.00mm
7	Board thickness tolerance	±10%
8	DK thickness	0.076 to 6.00mm
9	Minimum line width	0.10mm
10	Minimum line space	0.10mm
11	Outer layer copper thickness	8.75 to 175µm
12	Inner layer copper thickness	17.5 to 175µm
13	Drilling hole diameter (mechanical drill)	0.25 to 6.00mm
14	Finished hole diameter (mechanical drill)	0.20 to 6.00mm
15	Hole diameter tolerance (mechanical drill)	0.05mm
16	Hole position tolerance (mechanical drill)	0.075mm
17	Laser drill hole size	0.10mm
18	Board thickness and hole diameter ratio	10:1
19	Solder mask type	Green, Yellow, Black, Purple, Blue, White and Red
20	Minimum solder mask	Ø0.10mm
21	Minimum size of solder mask separation ring	0.05mm
22	Solder mask oil plug hole diameter	0.25 to 0.60mm
23	Impedance control tolerance	±10%
24	Surface finish	Hot air level, ENIG, immersion silver, gold plating, immersion tin and gold finger

Company Profile

Shenzhen Moko Technology Ltd.

MOKO TECHNOLOGY LTD is an expert at PCB and PCBA manufacture, based in Shenzhen, Guangdong, China. We are specialized in manufacturing Single-Sided Boards, Double-Sided Boards and multilayer PCB.

We are honored as the excellent supplier of many companies all around this world. We can offer all kinds of services including PCB and PCB assembly sample orders and batch orders.

We have got the ISO9001:2000, ISO14001, and UL RoHS certifications. Now our PCB daily capacity reaches 1000 square meters, and PCB assembly can reach 100,000,000 units per month.

We deeply believe that our good service and experience will completely meet you need. Integrity, value and innovation are the forces that drive our success. We are the smart choice for you and the trusted source at the center of your deal. Welcome the win-win situation together.

Contact Us

Shenzhen Moko Technology Ltd.: Contact nameRosina Zeng; Phone86-755-23573370; Address#401,U2,BLDG2,Guanghui Tech park Minqing Rd Longhua Shenzhen,Guangdong
