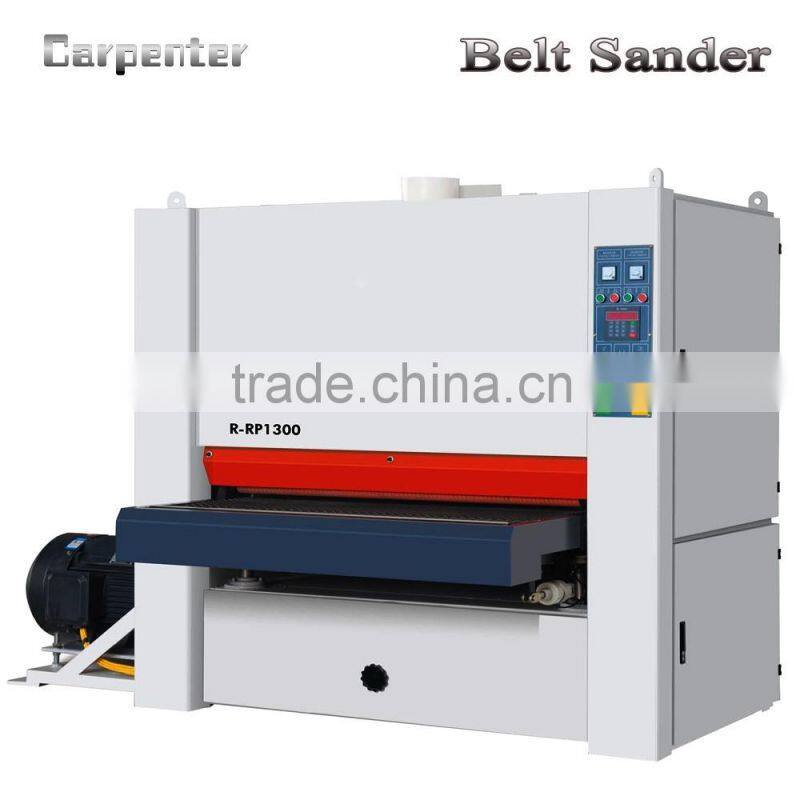

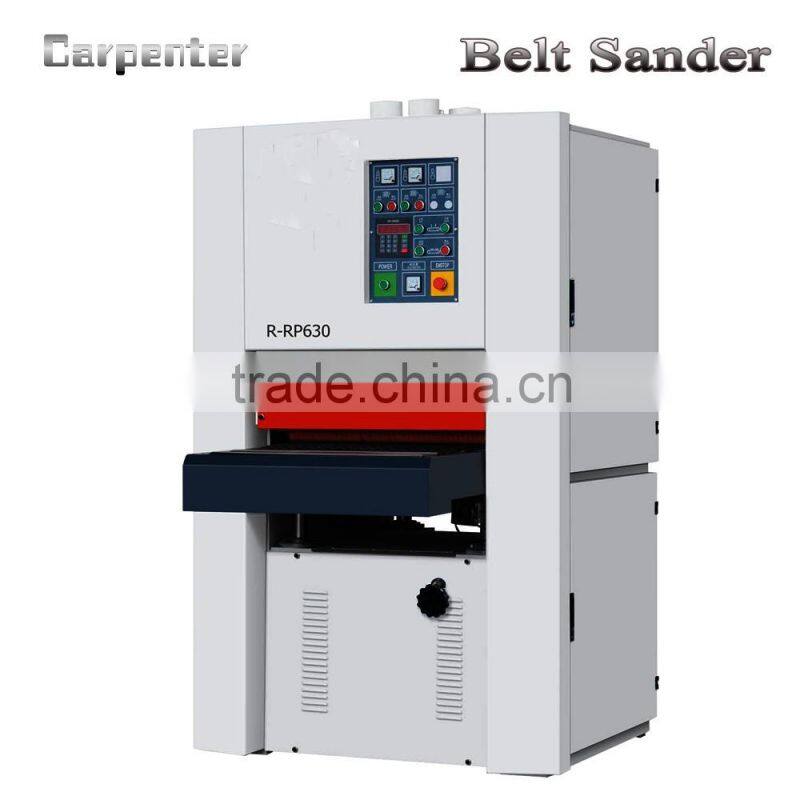

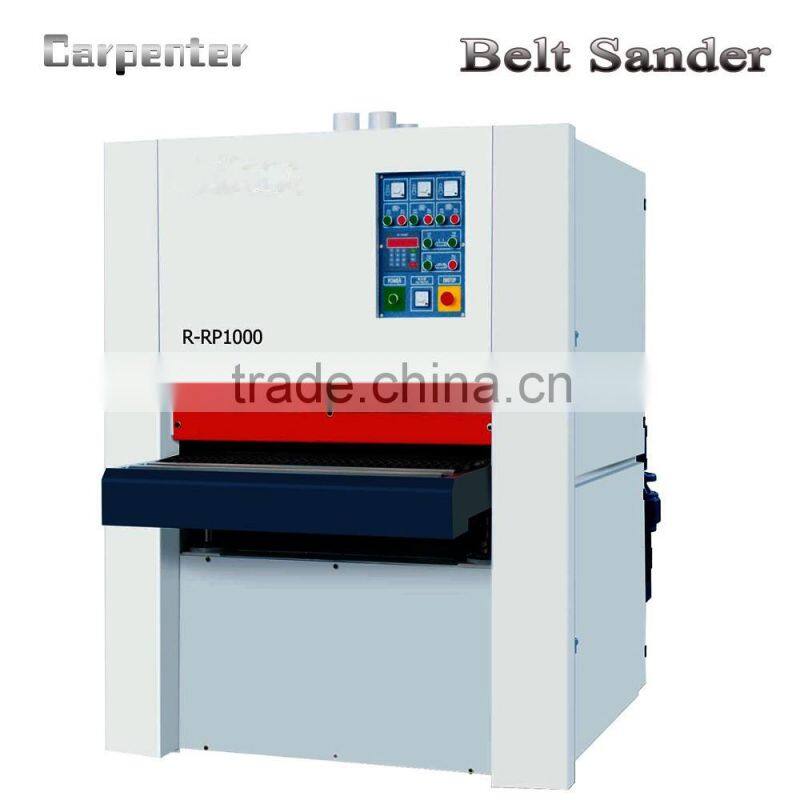

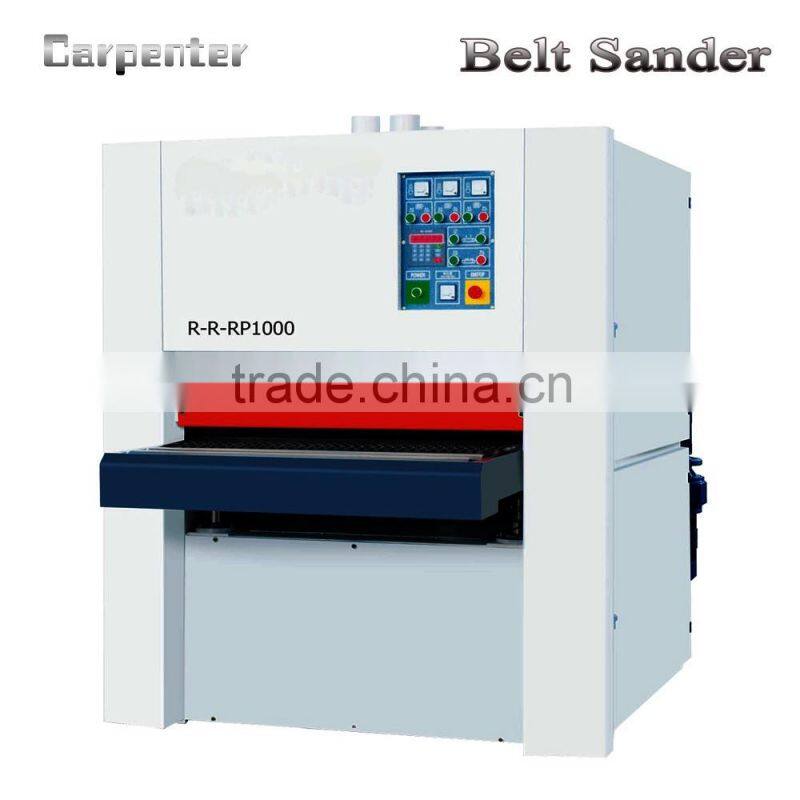

Sepcifications of Wide Belt Sanding Machine

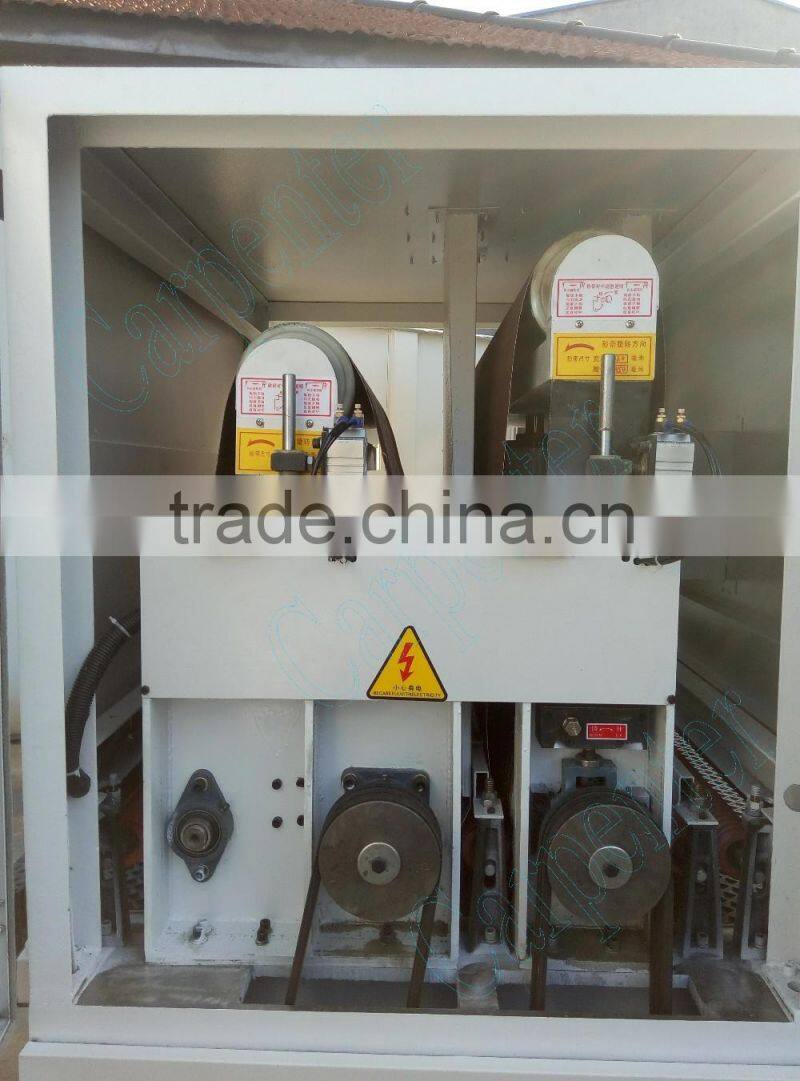

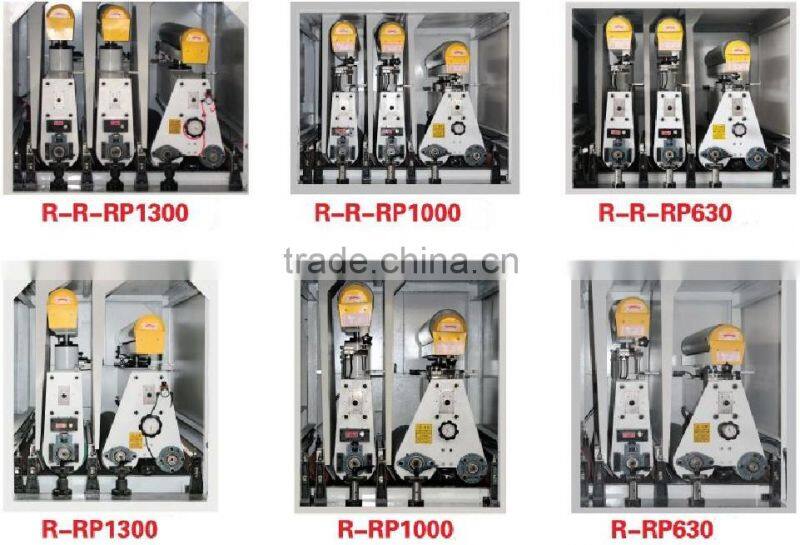

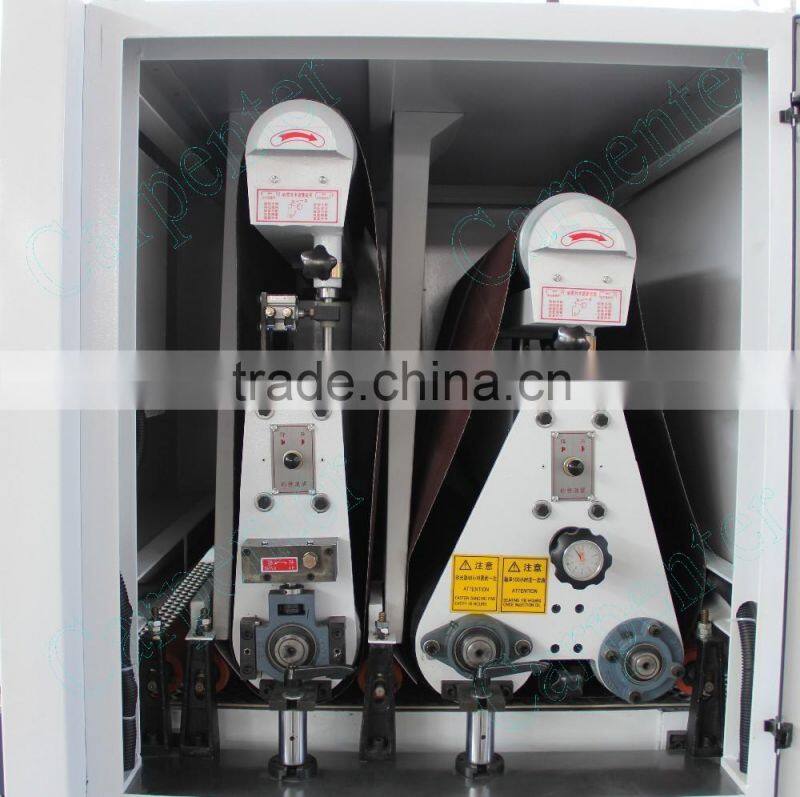

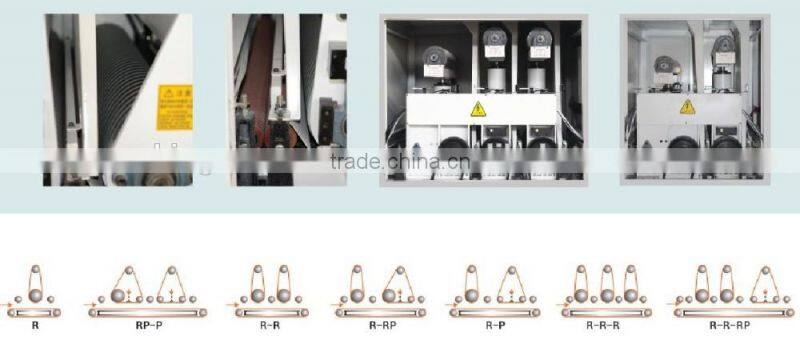

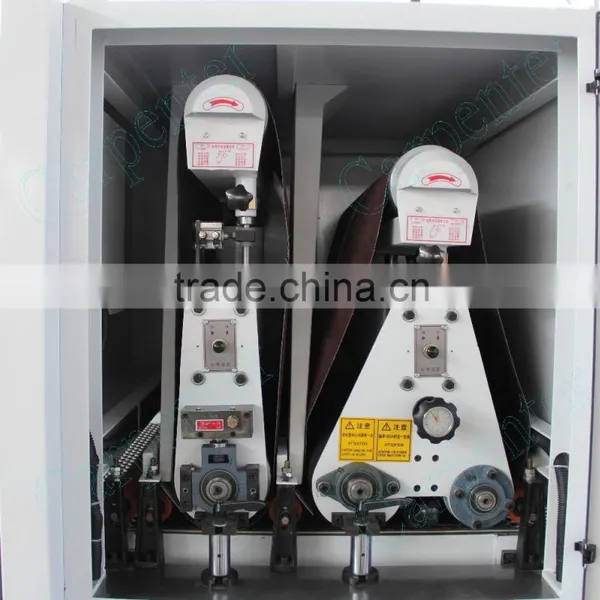

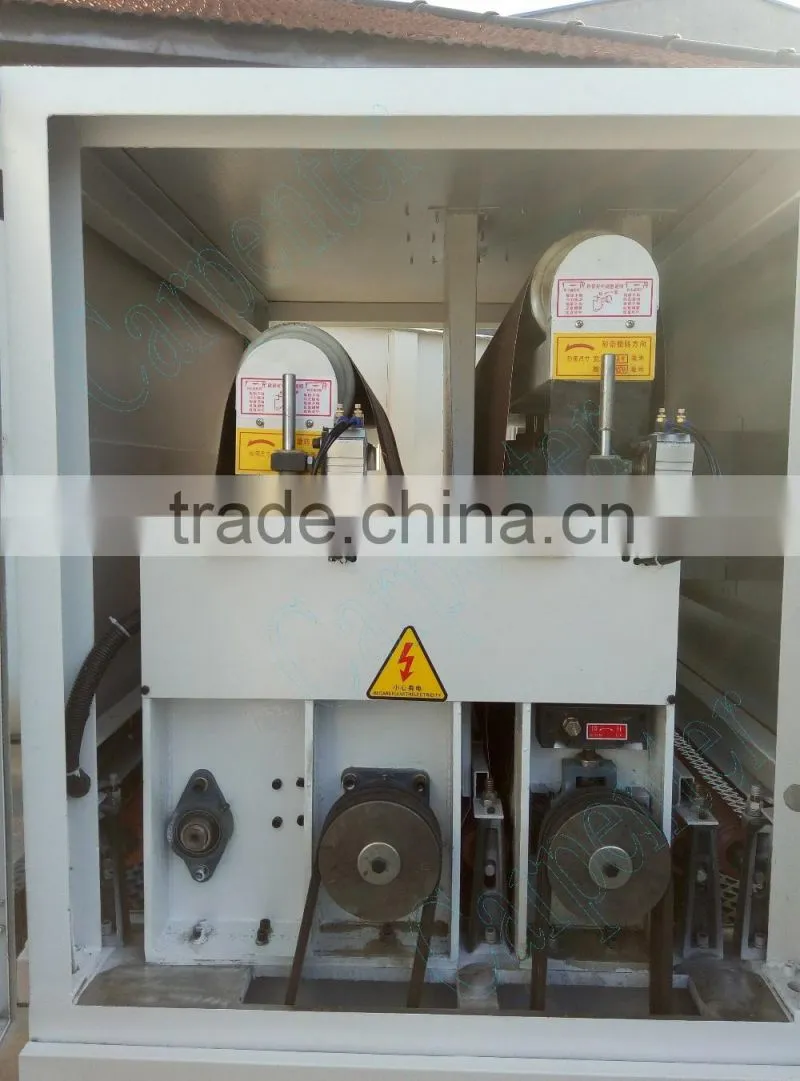

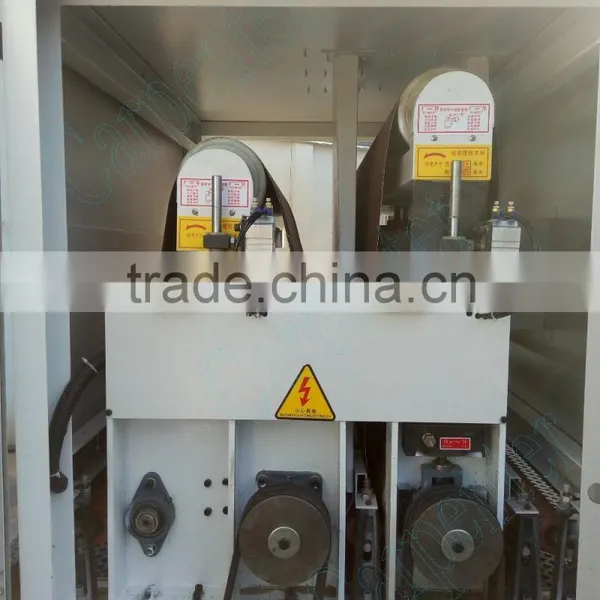

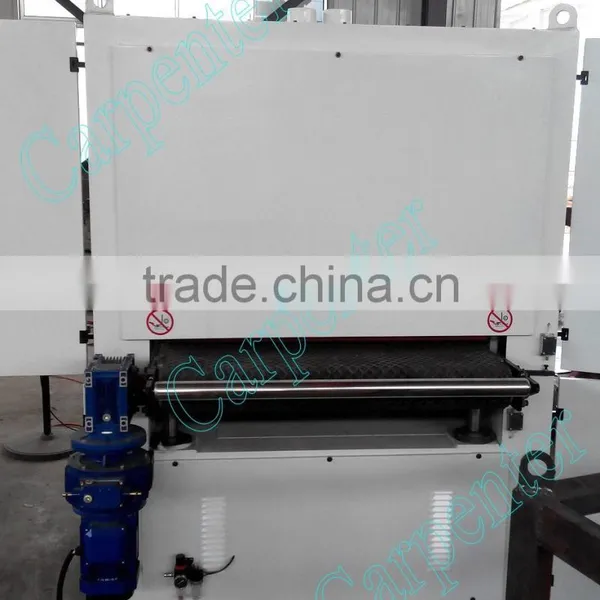

Details of Wide Belt Sanding Machine

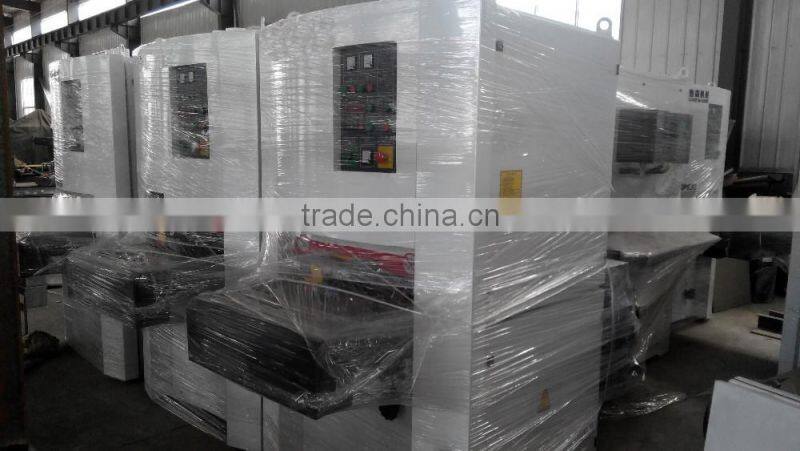

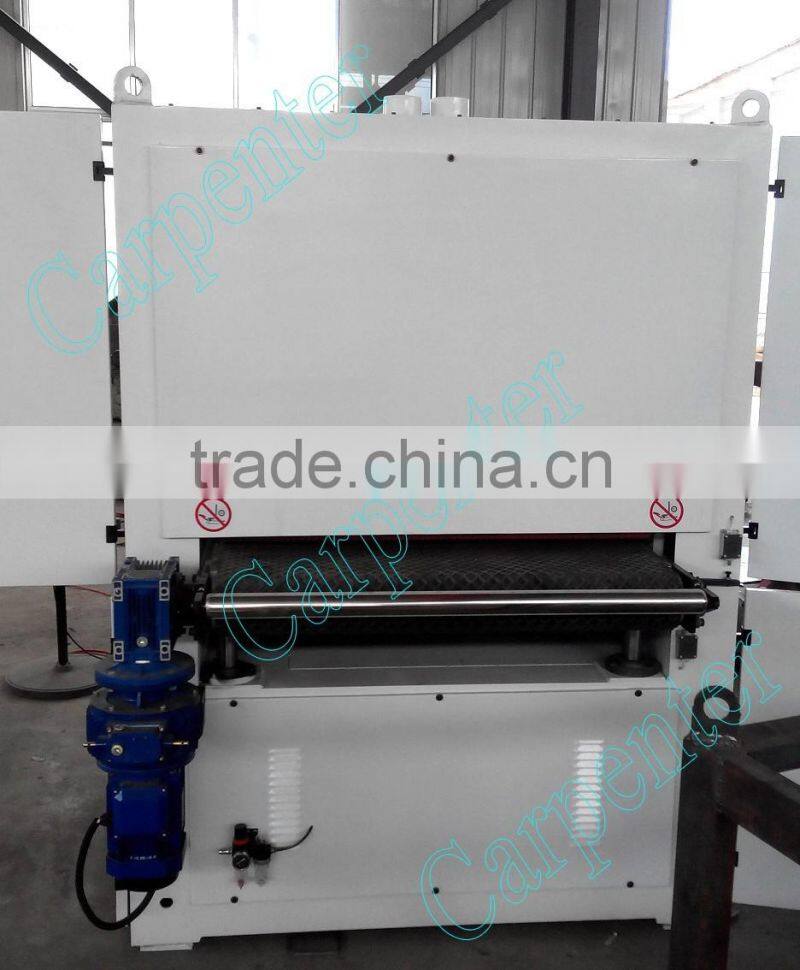

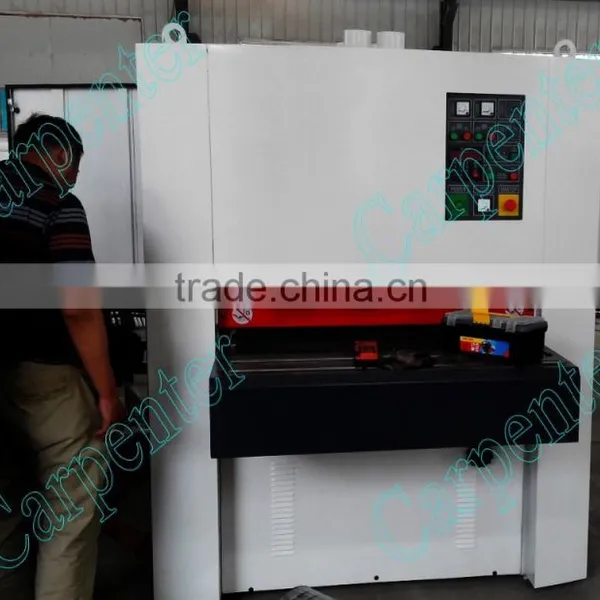

Workshop of Wide Belt Sanding Machine

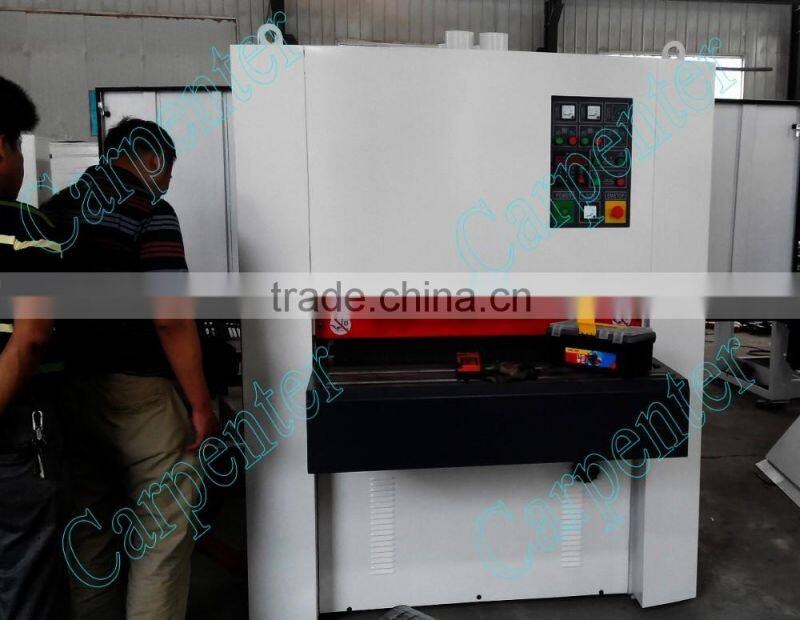

Workshop of Wide Belt Sanding Machine
Parameters of Wide Belt Sanding Machine
Model |
R-RP630 |
R-RP1000 |
R-RP1300 |
Max .working width |
630mm |
1000mm |
1300mm |
Min. Working length |
500mm |
500mm |
500mm |
Max .working thickness |
3-110mm |
3-110mm |
3-110mm |
Speed of conveyor belt |
6-30m/min |
6-30m/min |
6-30m/min |
Total motor power |
20.25kw |
32.25kw |
63.37kw |
No.1 abrasive belt power |
11kw |
18.5kw |
37kw |
No.2 abrasive belt power |
7.5kw |
15kw |
22kw |
Power of conveyor belt |
1.5kw |
1.5kw |
4kw |
Power of lifting |
0.25kw |
0.25kw |
0.37kw |
Diameter of No.1 abrasive belt |
190mm |
190mm |
240mm |
Diameter of No.2 abrasive belt |
190mm |
190mm |
210mm |
Size of abrasive belt |
650*1920mm |
1020*2000mm |
1330*2200mm |
Working pressure |
0.6Mpa |
0.6Mpa |
0.6Mpa |
Consumption of Compressed air |
8000m³/h |
8000m³/h |
8000m³/h |
Overall dimensions |
1800*1200*2100mm |
1900*1600*2100mm |
2700*2100*2100mm |
Net weight |
1200KG |
2200KG |
3300KG |
Model |
R-R-RP630 |
R-R-RP1000 |
R-R-RP1300 |
Max .working width |
630mm |
1000mm |
1300mm |
Min. Working length |
360mm |
500mm |
500mm |
Max .working thickness |
2.5-110mm |
3-110mm |
3-110mm |
Speed of conveyor belt |
6-30m/min |
6-30m/min |
6-30m/min |
Total motor power |
27.75kw |
44.75kw |
89.55kw |
No.1 abrasive belt power |
11kw |
18.5kw |
37kw |
No.2 abrasive belt power |
7.5kw |
15kw |
30kw |
No.3 abrasive belt power |
7.5kw |
11kw |
22kw |
Power of conveyor belt |
1.5kw |
1.5kw |
4kw |
Power of lifting |
0.25kw |
0.25kw |
0.55kw |
No.1 abrasive belt power |
190mm |
190mm |
240mm |
No.2 abrasive belt power |
190mm |
190mm |
240mm |
No.3 abrasive belt power |
190mm |
190mm |
210mm |
Size of abrasive belt |
650mm×1920mm |
1020*2000mm |
1330*2200mm |
Working pressure |
0.6Mpa |
0.6Mpa |
0.6Mpa |
Consumption of Compressed air |
8000m³/h |
8000m³/h |
12500m³/h |
Overall dimensions |
2200*1200*2100mm |
1900*2000*2100mm |
2700*2400*2100mm |
Net weight |
1600KG |
2800KG |
4700KG |
If you have any questions, it is my pleasure to provide more information for your reference.
