good quality 1,2,3,4,5,6 rows multi spindle drilling machine multi spindle boring machine
- 500 Set / Sets per Month
- Qingdao
- T/T
- MZ73031A furniture door and cabinet single-head multi-head hinge boring machine
- MZ73031A furniture door and cabinet single-head multi-head hinge boring machine
- Woodworking Machinery MZ5408 Vertical Multi-spindle Boring Machine Pneumatic Bore Hole Drilling Machine
- Woodworking machinery High Precision Z3A Three rows Multi Wood Boring Machine
- LIVTER Woodworking Machinery High Precision Z3A Three Rows Multi Wood Boring Machine
- LIVTER Automatic Wood Side Hole Drilling Machine Multi Wood Drilling Boring Machines
Product Details
Condition: | New | CNC or Not: | CNC | Motor Type: | Standard Motor |
Spindle Speed: | 2840r/min | Place of Origin: | Shandong, China | Brand Name: | KINGISO |

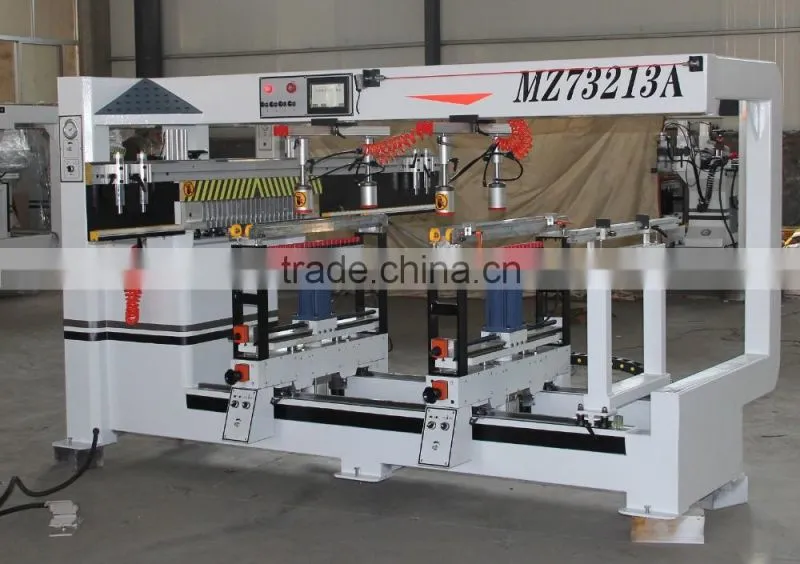

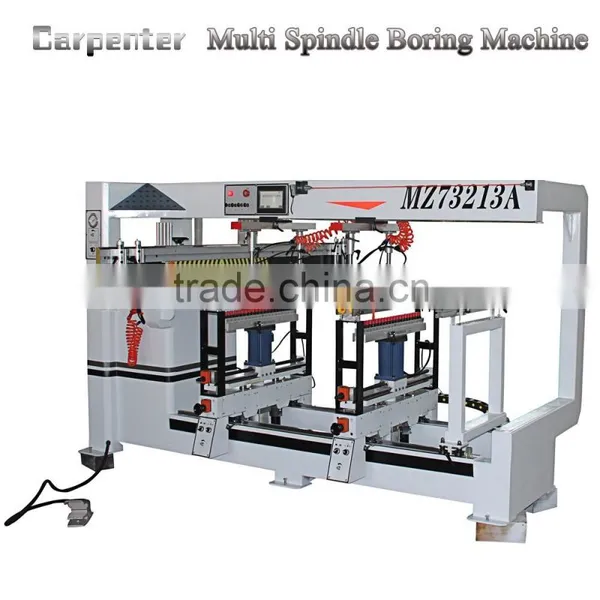

Model Number: | MZ73213A | Voltage: | 380V | Power(W): | 9kw |
Weight: | 2500kgs | Dimension(L*W*H): | 4600x2500x1620mm | Certification: | ISO9001 |
Warranty: | 1 Year | After-sales Service Provided: | No overseas service provided |
Product Description
multi spindle drilling machine multi spindle boring machine multi spindle drilling machine multi spindle boring machine multi spindle drilling machine multi spindle boring machine multi spindle drilling machine multi spindle boring machine

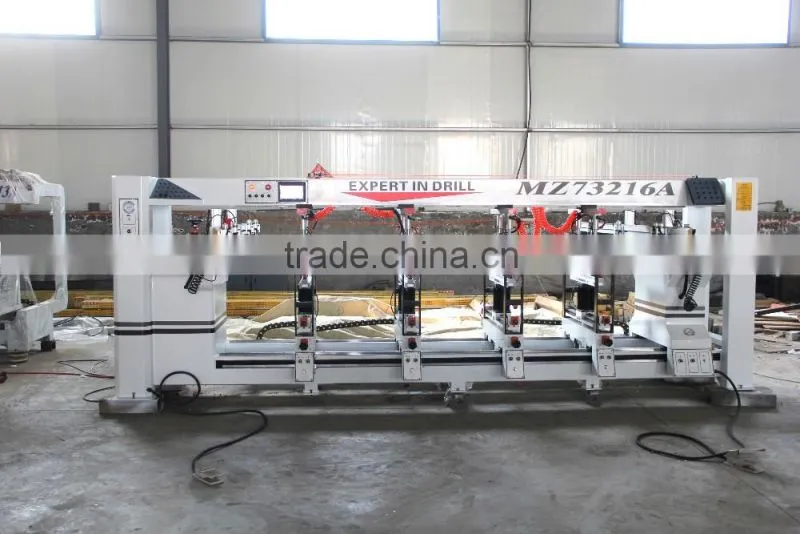

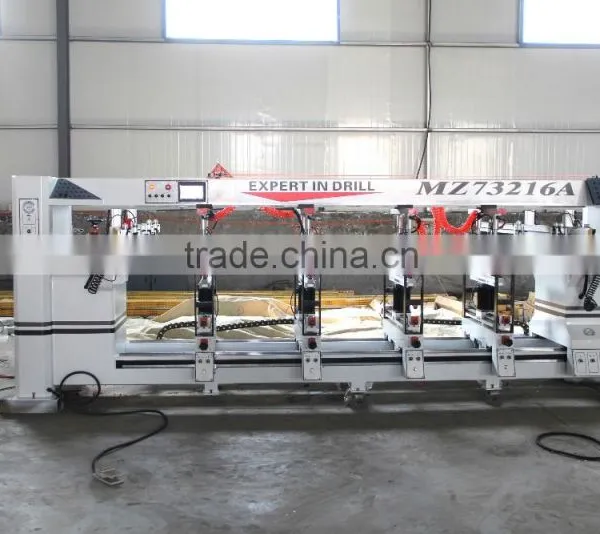

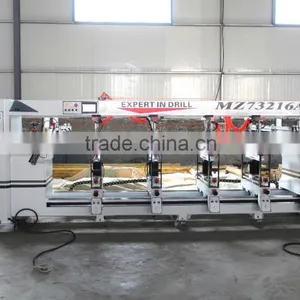

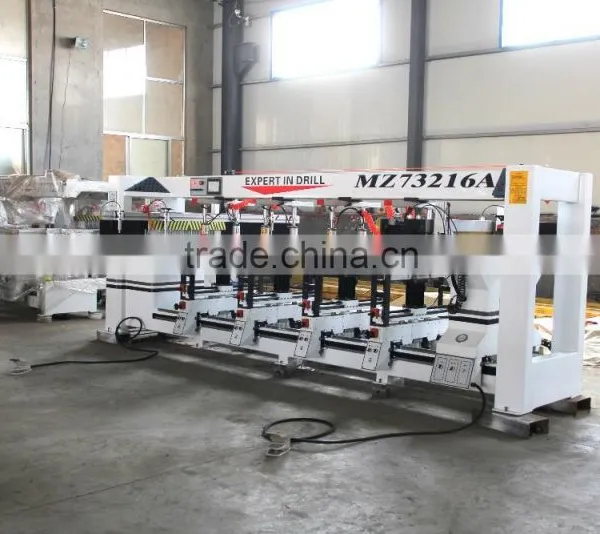

Parameters of Multi Spindle Drilling Machine

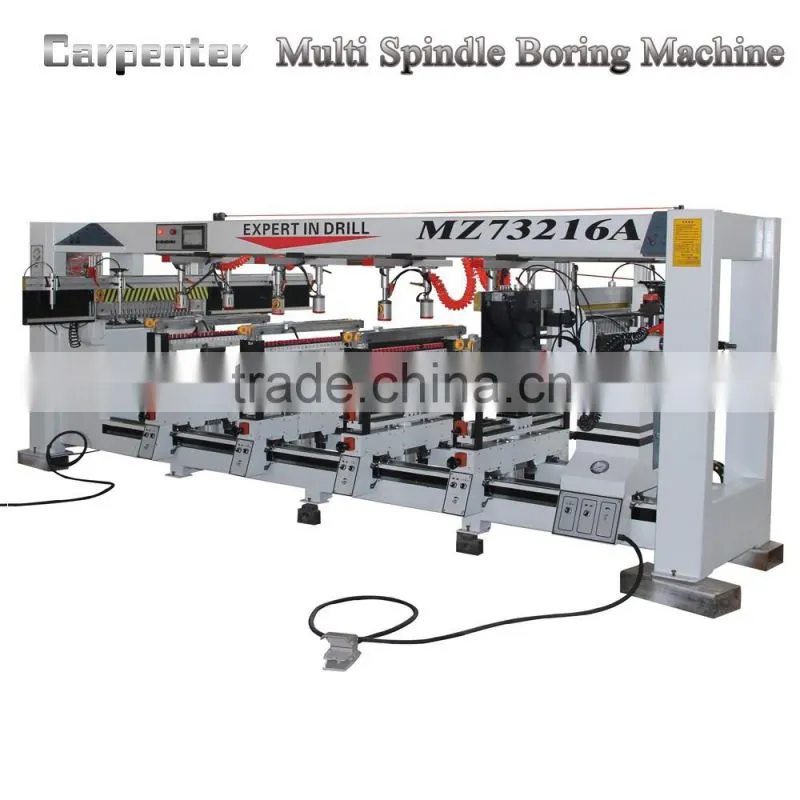

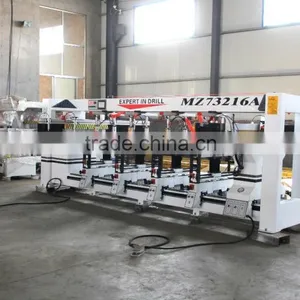

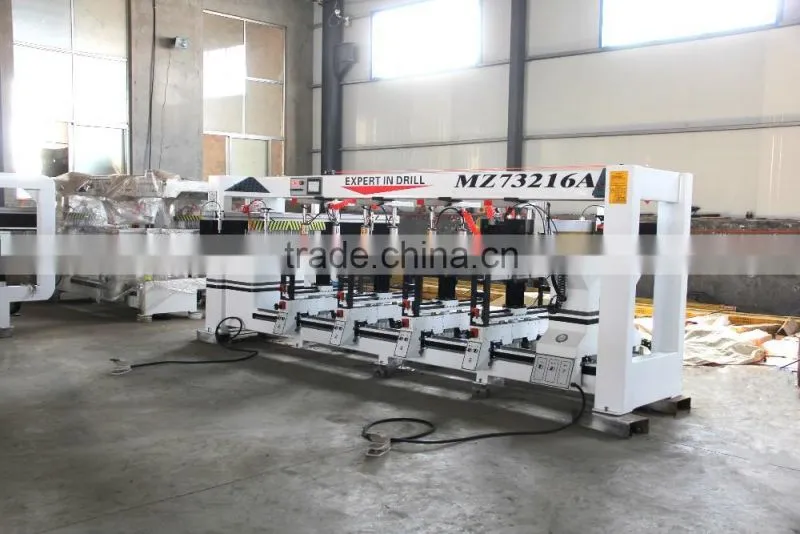

Model | MZ73216A |
Max drilling diameter | max.=35mm(single head)D=13mm(multi-head) |
The maximum drilling depth | Max=60mm |
The total number of drilled shaft | 21x6 |
Drill joint fit-up aperture | 10mm |
Max.drilling distance | Max.xB.Max-2800mmx640mm |
Min.drilling distance | Min.xB.Min-135mmx32mm |
Spindle speed | 2840rpm |
Air Pressure | 0.6-0.8Mpa |
The total power of electric motor | 9kw |
Appearance size | 4600x2500x1620mm |
The weight of the machine | 2500kg |
Advantages of Multi Spindle Drilling Machine
1, Adopted with famous touch screen, PLC system, highly precious efficiency, lower error.
2, Drills are joined in a high speed, easy operation

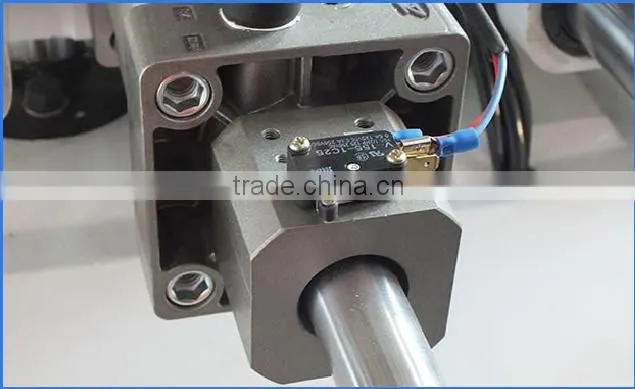

3, Depth and distance of drills’ hole are fast placed by the precise photo-electric sensing switch.
4, Adopted with the originally imported drill row, linear guide, slider.
5, Main body is made by special steel which is dealt with high temperature annealing.
6, high speed motors are available to drill the precise holes
7. The model of 6A is available to reach the process of two 3 rows boring machine.
Catalog of Mutli Spindle Boring Machine
If you have any questions, it is my pleasure to provide more information for your reference.
Company | Qingdao King Wing Woodworking Trade Co.,Ltd |
Address | Room 109,No 687 Maoshan Road Huangdao District Qingdao City |
Mobile | 86-15621021161 |
brianwang@kingcarpenter.xy z | |
+86-15621021161 | |
Viber | +86-15621021161 |
Skype | 35 |
