Mdf Door Interior Door Full Automatic Straight Edge Banding Machine/pvc Edge Banding Machine

Mdf Door Interior Door Full Automatic Straight Edge Banding Machine/pvc Edge Banding Machine photo-1
Mdf Door Interior Door Full Automatic Straight Edge Banding Machine/pvc Edge Banding Machine photo-2

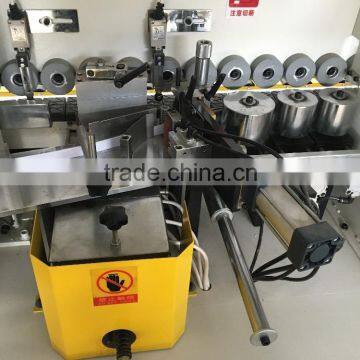

Mdf Door Interior Door Full Automatic Straight Edge Banding Machine/pvc Edge Banding Machine photo-3

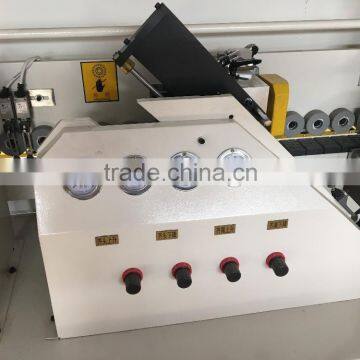

Mdf Door Interior Door Full Automatic Straight Edge Banding Machine/pvc Edge Banding Machine photo-4
Mdf Door Interior Door Full Automatic Straight Edge Banding Machine/pvc Edge Banding Machine photo-5

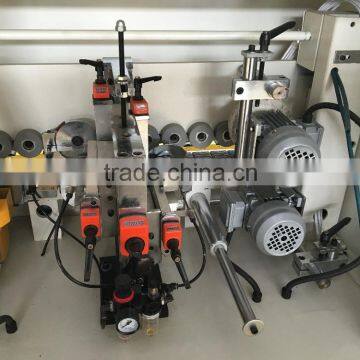

Mdf Door Interior Door Full Automatic Straight Edge Banding Machine/pvc Edge Banding Machine photo-6
US$ 4,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Edge Banding Machine
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Edge Banding Machine
Place of Origin Shandong, China
Brand Name KingCarpenter
Model Number KC-306
Voltage Customized
Power(W) 9.2kw
Dimension(L*W*H) 4150*1100*1600mm
Weight 1300kg
Certification CE ISO9001
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

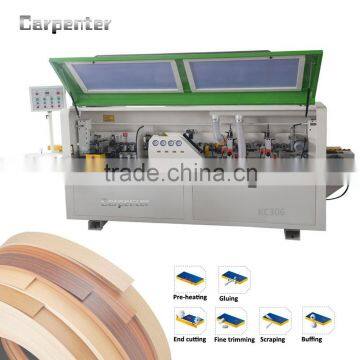

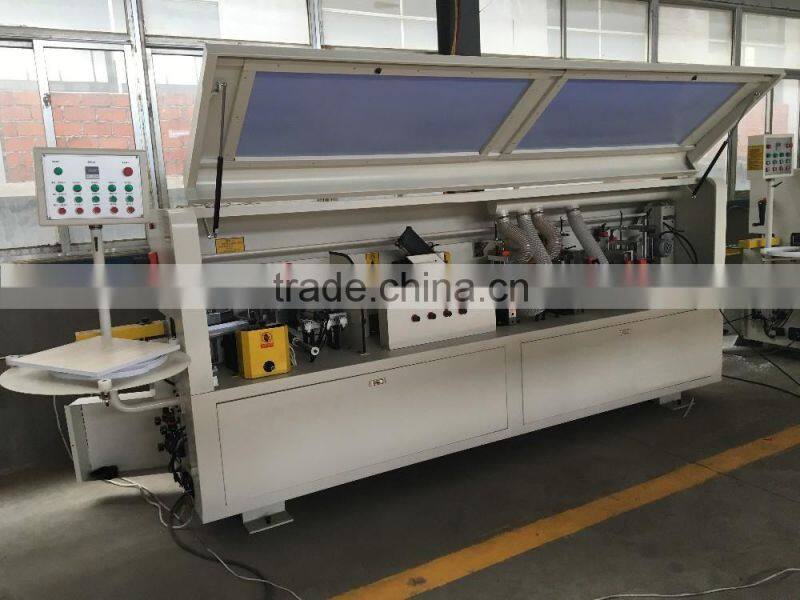

This is a Automatic edge banding machine

Mainly use to process MDF,WPC board to produce interior door, kitchen cabinet door.

This edge banding machine only process straight board.

SPECIFICATIONS FOR FULL AUTOMATIC EDGE BANDING MACHINE

Panel request
Min. Length
mm
120
Min. Width
mm
80
Thickness Range
mm
10-45

Edge banding tape request
Material
PVC
Wood venner
Tape Thickness Range
mm
0.4-3
Can We Supply ?
Yes
Edge banding machine other specification
Motor Power
kw
6.8
Panel Feeding Power
kw
1.5
Air Pressure
Mpa
0.6

Main Features

1) Full automatic, don't need human press the board.

2) Only process the straight MDF, solid wood board.

3) Have five functions: Gluing, end cutting,fine trimming, buffing,scraing.

4) Best choice for small factory.

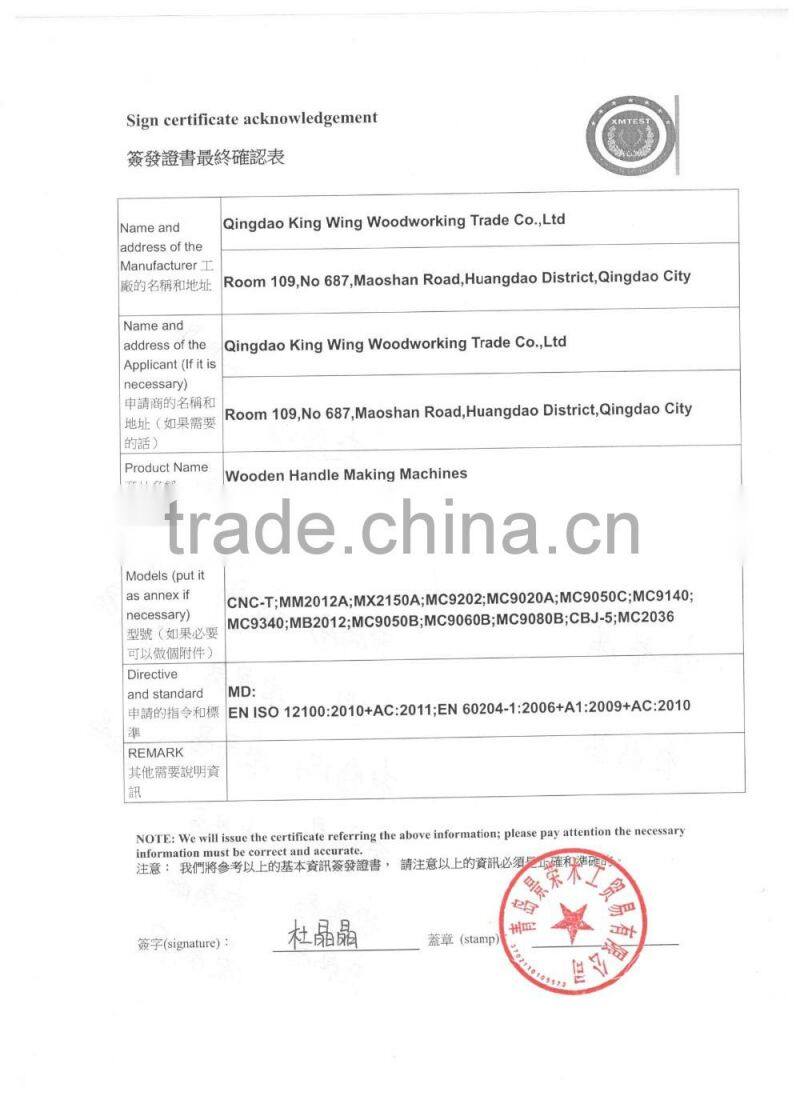

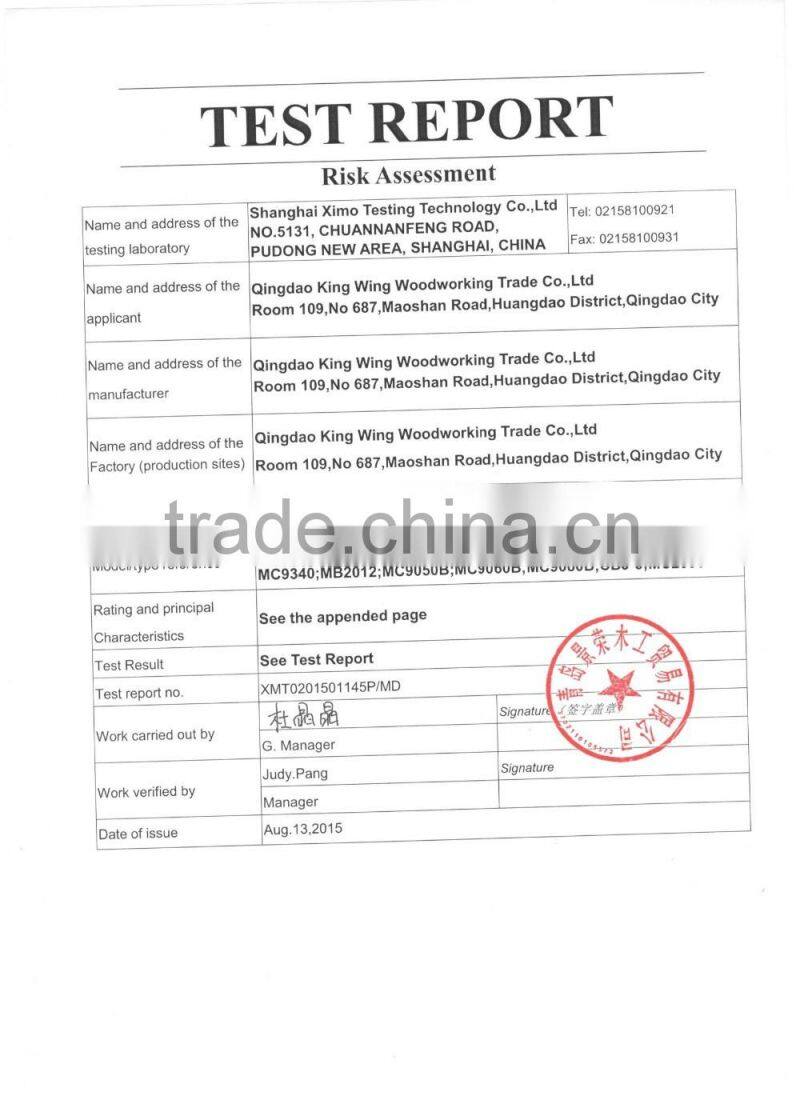

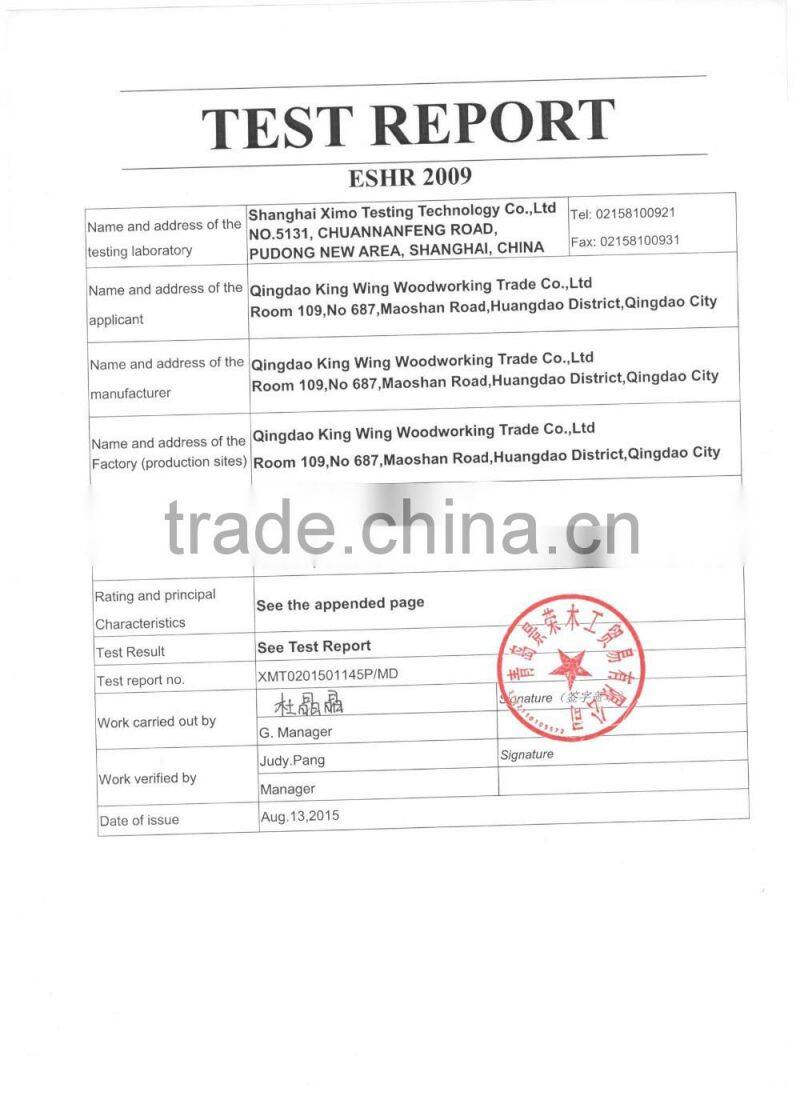

Certifications

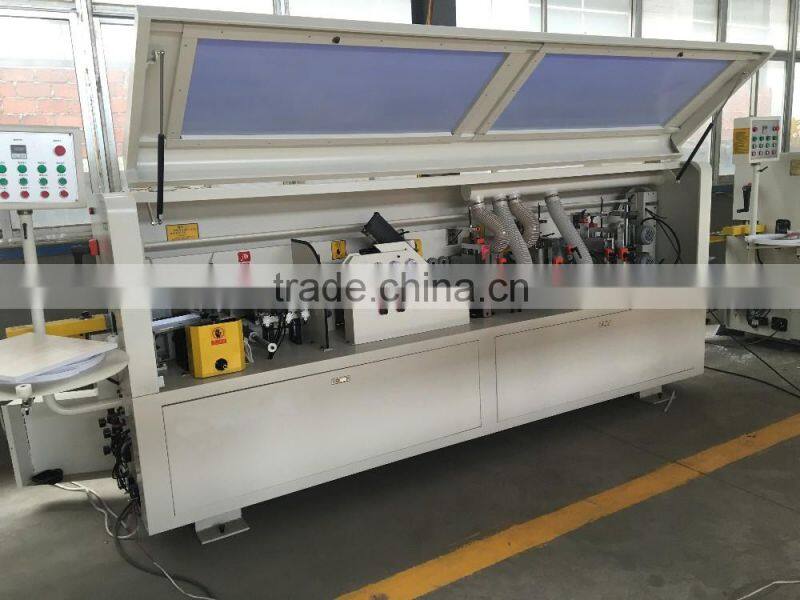

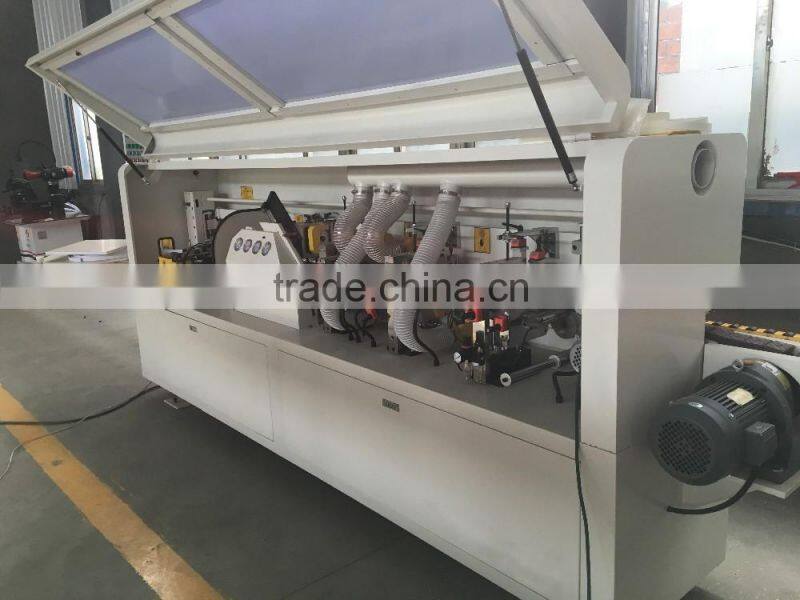

Detailed Images

Machine Parts

Name: Glue tank

Brand: Kingcarpenter

Original: China

Use middle temperature glue. We can supply its glue.

Main Features

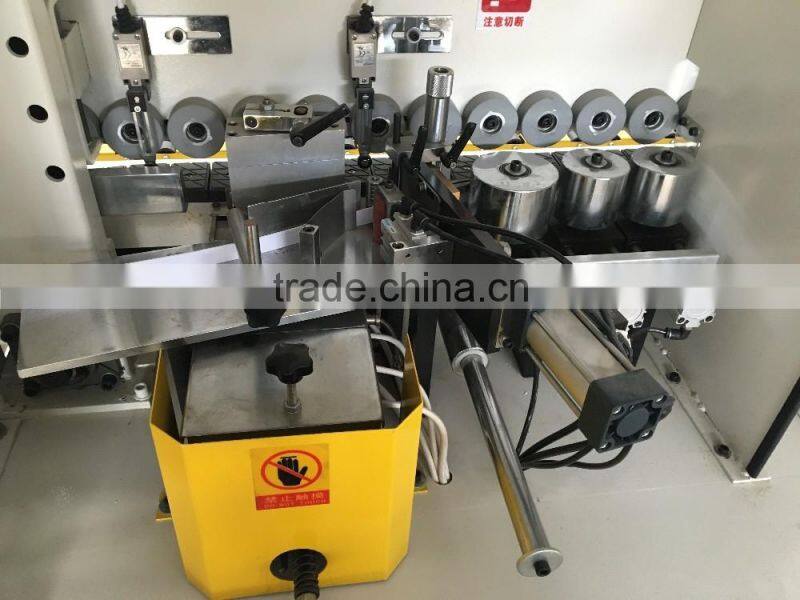

Name: End cutting function
Funtion: cut of the edge banding tape
Original: China
Very efficiency than manual operate.

Machine Parts

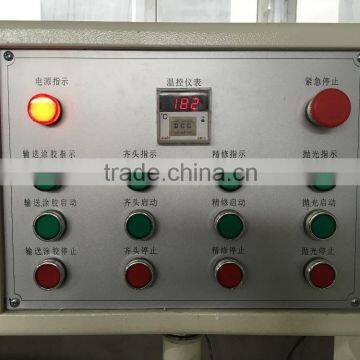

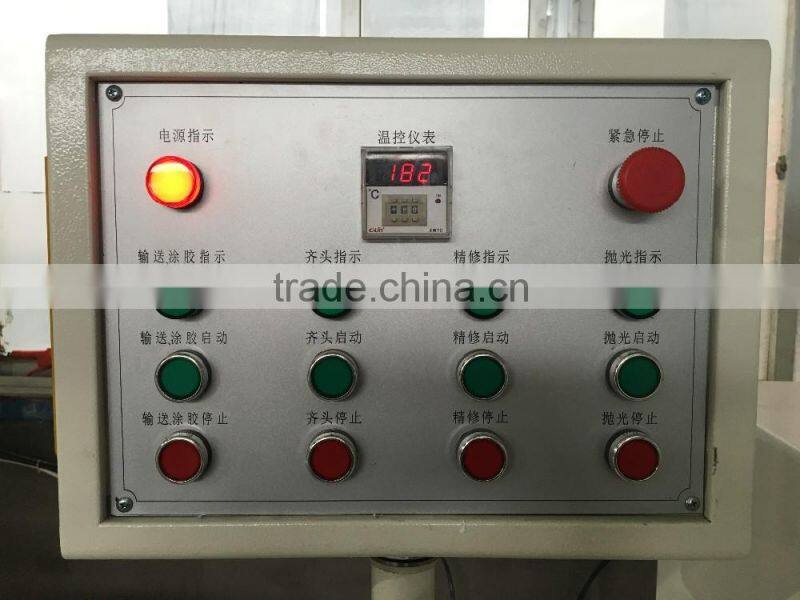

Name: Control panel
Brand: Kingcarpenter
Original: China
You can read its functions on it.

We can change to English.

If you don't want use any function, just press the red button to stop it.

Main Features

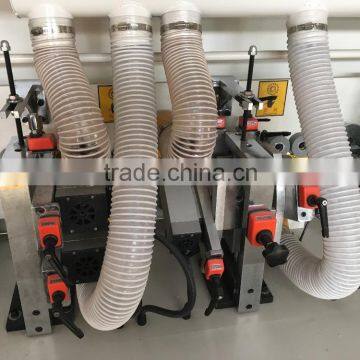

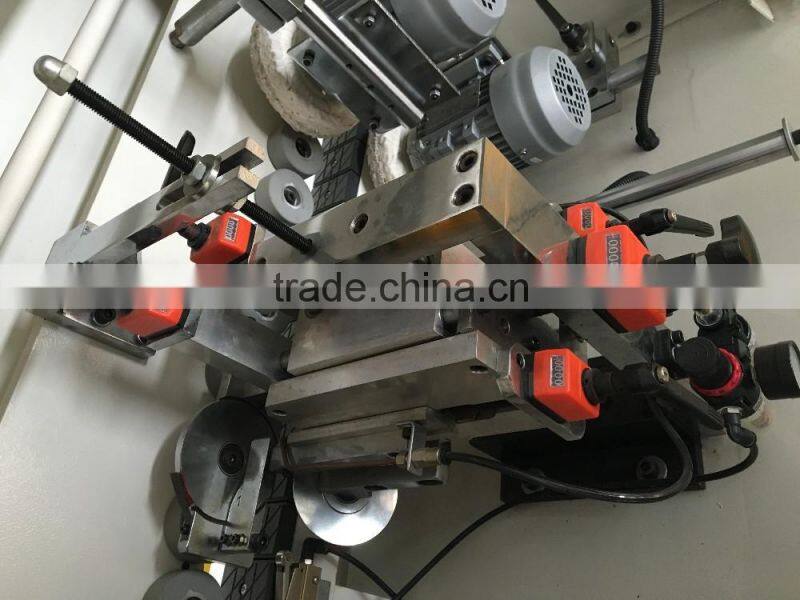

Name: Fine trimming function
Use for: Make the edge banding tape smooth.
Original: China

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3800 (L) * 800 (W) * 1600 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
3800 (L) * 800(W) * 1600 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
