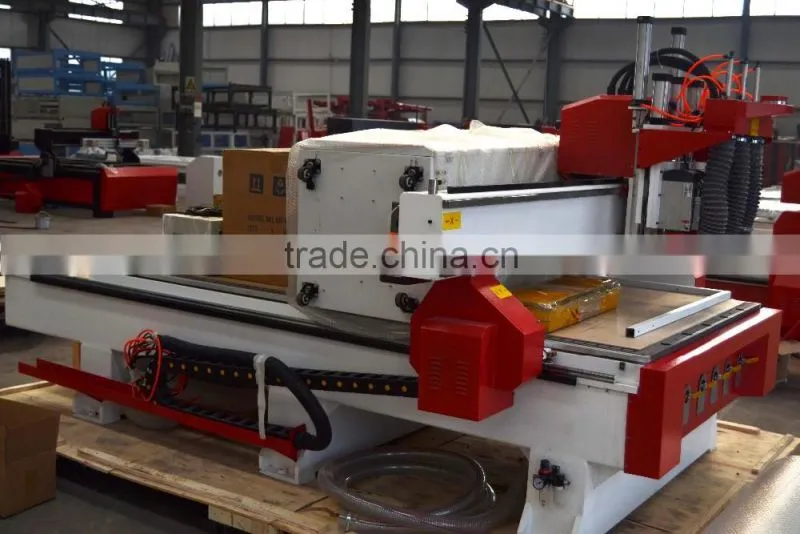

Help CenterKC1325A-3S Woodworking Machinery With 3 Spindles Alphcam Software CNC Wood Router for Cabinet
Related Products
-
KC1325A-3S China Cnc Router/cnc Router Machine/wood Router Cnc/1325 Cnc Router With 3 Spindles for Cabient Engraving Cnc RouterUS$ 1,500 - 14,000MOQ: 1 Set -
KC1325A-3S Wooden Door Manufacturing Machines CNC Router With 3 Air Cooling 4.5kw HSD Spindles for MDF Cutting EngravingUS$ 1,500 - 14,000MOQ: 1 Set
-
Discount Price KC1325A-3S CNC Wood Router Machine for WoodworkingUS$ 1,500 - 14,000MOQ: 1 Set
-
KC3636 CNC Wood Router Machine of Engraving WorkingUS$ 100 - 3,000MOQ: 1 Set
-
Mini KC3636R CNC Router Machine for Engraving MetalUS$ 100 - 3,500MOQ: 1 Set

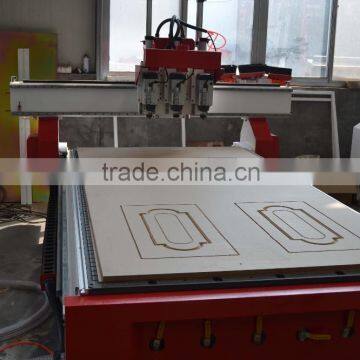

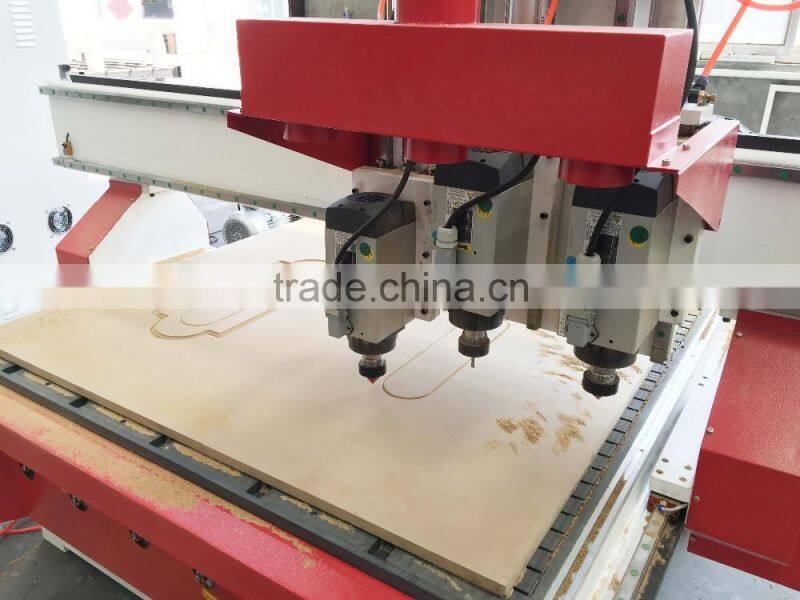

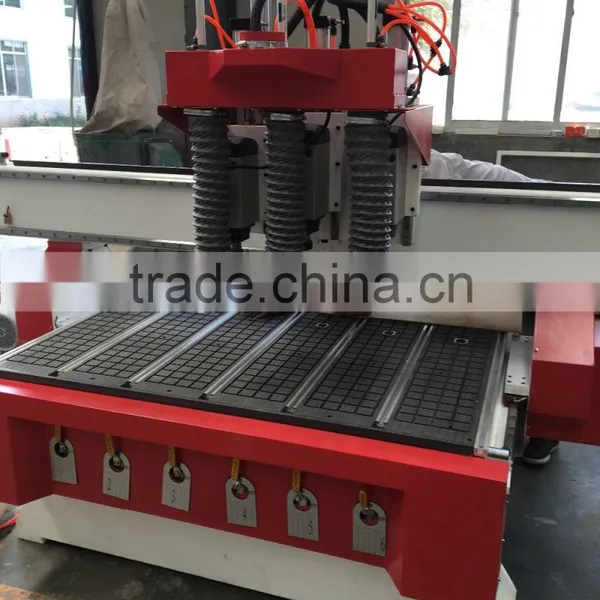

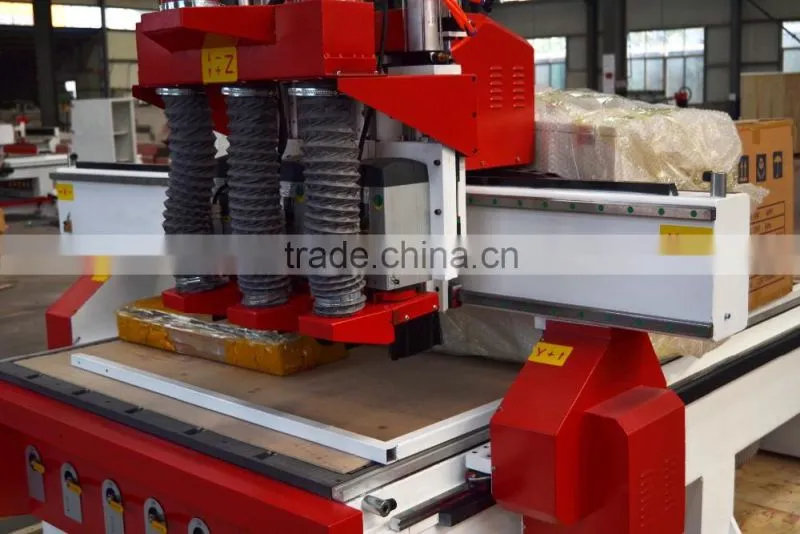

KC1325A-3S Wood CNC Router Machine
A--means automatic change,
3S--means 3 spindles
Working video 1: https://youtu.be/CrQvbkMJLQM
Working video 2: https://youtu.be/msOG48kvrRc

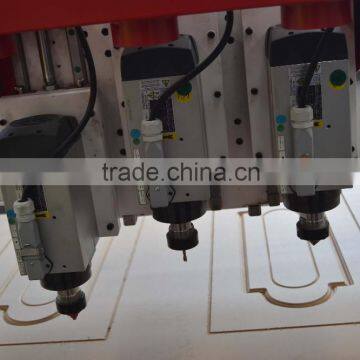

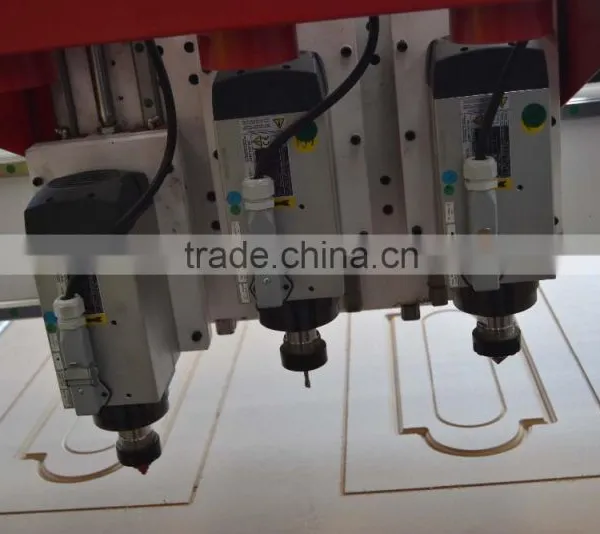

4.5kw HSD air-cooling spindles--import from Italy.
1.The Parameter of KC1325A-3S Wood CNC Router Machine
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1300x2500x200mm |
2 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
3 |
X,Y,Z Repositioning Positioning Accuracy |
±0.05mm |
4 |
Lathe Structure |
Welded Structure |
5 |
X, Y,Z Structure |
Square rail |
6 |
X, Y,Z Transmission |
X,Y axis Gear Wheel Transmission,Z axis Ball Screw |
7 |
Max. Consume power |
6.5Kw |
8 |
Max. Motion Speed |
0-32000mm/min |
9 |
Max. Working Speed |
0-20000mm/min |
10 |
Spindle Power Motor |
4.5kw HSD Air-Spindle |
11 |
Spindle Speed |
0-24000RPM |
12 |
Collet |
ER20 |
13 |
Drive Mode |
Servo Motor |
14 |
Control System |
NC Studio or DSP System |
15 |
Interface |
USB |
16 |
Flash Memory |
128M |
17 |
Resolution |
<0.01mm |
18 |
Software |
Typep3/Ucancam/Artcam |
19 |
Command |
G Code, *uoo, *mmg, *plt,*nc |
20 |
Working Voltage |
AC220V/380V, 50/60Hz |
21 |
Running Circumstance |
Temperature: 0℃~45℃ Relative humidity: 30%~75% |
22 |
Packing Size |
Separated: 3110X1500X620mm Integrated: 3350X1950X1990mm |
23 |
Net Weight |
900KG |
24 |
Gross Weight |
1150KG |

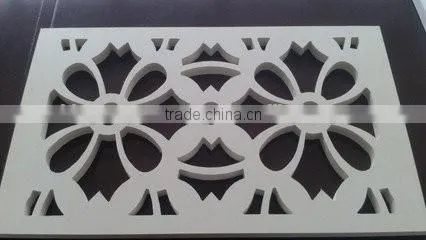

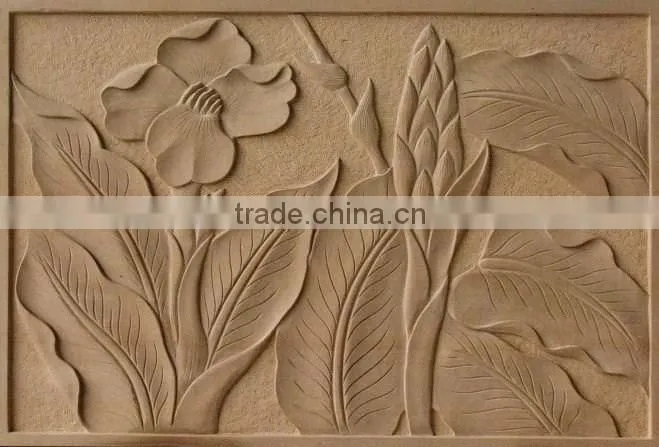

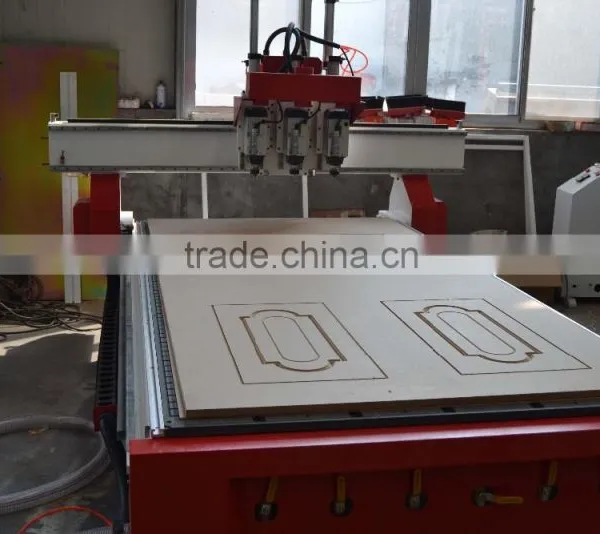

2.The Samples for KC1325A-3S Wood CNC Router Machine:
Standard Wooden Box:
♦ One year quality guaranty, the machine with main parts shall be changed free of charge when if any problem during the warranty period.
♦ Life time maintenance free of charge.
♦ Free training course at our plant.
♦ 24 hours on line service each day, free technical support.
♦ Machine has been adjusted before delivery.

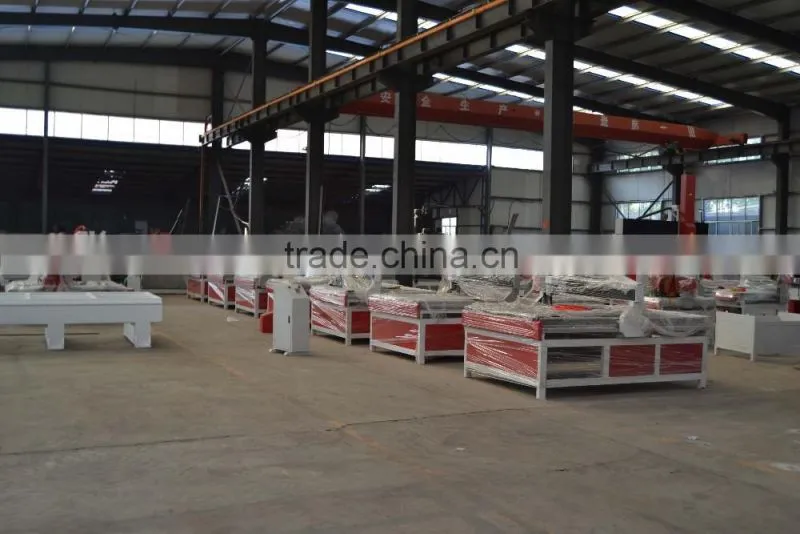

The corner of our factory:

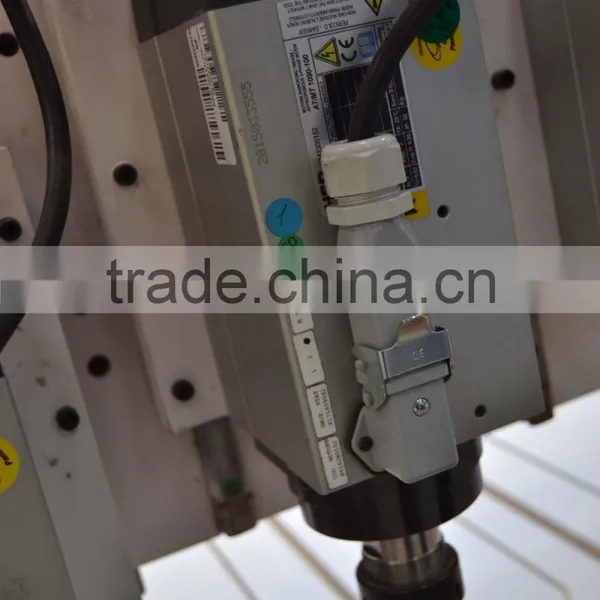

Why choose the HSD air-cooling spindle?
My whatsapp:008613361043371
My Skype: kim-woodworkingmachine
