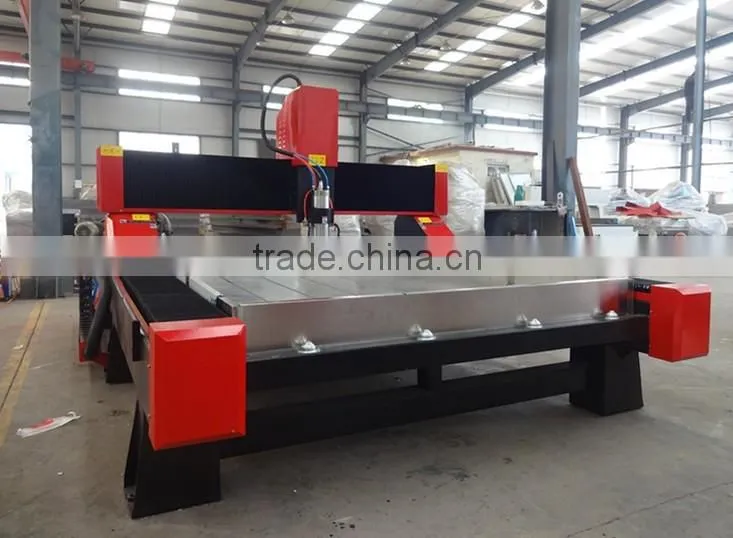

KC1325 Stone CNC Router Machine of Working

KC1325 Stone CNC Router Machine of Working thumbnail-1
KC1325 Stone CNC Router Machine of Working thumbnail-2
KC1325 Stone CNC Router Machine of Working thumbnail-3
KC1325 Stone CNC Router Machine of Working thumbnail-4
KC1325 Stone CNC Router Machine of Working thumbnail-5
KC1325 Stone CNC Router Machine of Working thumbnail-6
KC1325 Stone CNC Router Machine of Working photo-1
KC1325 Stone CNC Router Machine of Working photo-2
KC1325 Stone CNC Router Machine of Working photo-3
KC1325 Stone CNC Router Machine of Working photo-4
KC1325 Stone CNC Router Machine of Working photo-5
KC1325 Stone CNC Router Machine of Working photo-6
US$ 12,000 - 26,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Engraving Machine
Use:
Other
Contact Supplier Request Quote Chat Now
Qingdao King Wing Woodworking Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Engraving Machine
Use Other
Production Capacity 100%
Place of Origin Shandong, China
Brand Name KING CARPENTER
Model Number KC1325 Stone
Voltage 220V/380V
Power(W) 3.0/4.5/6/7KW
Dimension(L*W*H) 3200X1960X1870mm
Weight 1800KG
Certification CE ISO9001
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

KC1325 Stone CNC Router Machine of Working

KC1325 Stone CNC Router Machine of Working

Product Description

1.The Introduction of KC1325 Stone CNC Router Machine of Working :



1). With hard steel structure, is fit for stone working and hard wood working, like cutting and engraving on imitation marble, stone tablet Rosewood for furniture, indoor decoration.



2). We use top quality components for the machines, like  Italian famous brand spindle, Delta Inverter, Japanese servo motors, Hiwin linear and so on, to keep the machine in the best condition even after many years working.



2.The Parameter of KC1325 Stone CNC Router Machine of Working :



Number

Description

Parameter

1

X,Y,Z Working Area:

1300x2500x200mm

2

Table Size:

1360×2940mm

3

X,Y,Z Traveling Positioning Accuracy:

±0.03

4

X,Y,Z repositioning Accuracy:

±0.03mm

5

Table Surface:

T-slot table (Option: Vacuum and  T-slot combined )

6

Frame:

Welded structure

7

X, Y Structure:

Rack and Pinion Drive, Hiwin Rail Linear Bearings

8

Z Structure:

Hiwin Rail Linear Bearings and Ball Screw

9

Max. Power Consumption:

(Without spindle)  4.2Kw

10

Max. Rapid Travel Rate:

30000mm/min

11

Max. Working Speed:

20000mm/min

12

Spindle Power:

3.0/4.5/6/7KW

13

Spindle Speed:

0-24000RPM

14

Drive Motors:

Servo system

15

Working Voltage:

AC380V/50/60Hz,3PH

16

Command Language:

G code

17

Operating System:

Nc studio(options: DSP/Mach3 PC Software)

18

Computer Interface:

USB

19

Flash Memory:

512M(U Disk)

20

Collet:

ER25

21

X,Y Resolution

 <0.01mm

22

Software Compatibility:

Type3/UcancameV9 software, (Option: Artcam software)

23

Running Environment  Temperature:

0degree - 45 degree

24

Relative Humidity:

30% - 75%

25

Packing Size:

3200X1960X1870mm

26

N.W.:

1450KG

27

G.W.:

1800KG

28

Guarantee

One year from the date of commission

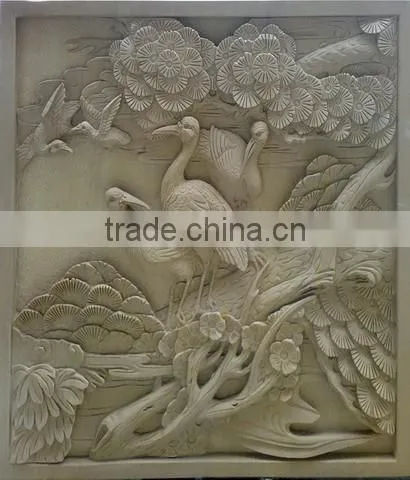

3.The Samples for your reference KC1325 Stone CNC Router Machine of Working :



Packaging & Shipping

Standard Wooden Box:


Our Services

♦ One year quality guaranty, the machine with main parts shall be changed free of charge when if any problem during the warranty period.
♦ Life time maintenance free of charge.
♦ Free training course at our plant.
♦ 24 hours on line service each day, free technical support.
♦ Machine has been adjusted before delivery

Company Information

KC1325 Stone CNC Router Machine of Working

FAQ
 1)  What payment you accept?
    1.T/T inadvance   2.western union  3 . Trade Assurance

2)  I did not imported before , how should i do ?
     You only need pay to us , we will arrange all the things to you and teach you how to do .we will
     prepare all the documents to you , you don't need worry , because we know what you need .

3)  Do You Arrange the ship For us?
    Yes ,for FOB or CIF price, we will arrange shipment for you.

4)  How about the documents after shipment?
    We‘ ll send all original documents to you by DHL, for example :the  Packing List, Commercial
    Invoice, B/L, and other certificates as required by clients.

5)   My Skype: robot_ic
