Discount Price KC1325C-ATC cnc router spindle motor/ wood door making cnc router cutting
- 30 Set / Sets per Month
- Qingdao
- T/T
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | KING CARPENTER | Model Number: | KC1325C-ATC | Voltage: | 220V/380V |
Power(W): | 4.5KW(without spindle) | Dimension(L*W*H): | 1300*2500*300mm | Weight: | 2500KG |
Certification: | CE ISO9001 | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Discount Price KC1325C-ATC cnc router spindle motor/ wood door making cnc router cutting
1.The Introduction of Discount Price KC1325C-ATC cnc router spindle motor/ wood door making cnc router cutting :
CNC router milling bit/hobby cnc router kit, it has ATC function with 8 toolholder forks.
During your work, it can change 8 tools automatic. It is with high efficient.
With hard steel structure, the machine is qualified for mass-producing of furniture with
the vacuum holding way and dust collector.
2.The Parameter of Discount Price KC1325C-ATC cnc router spindle motor/ wood door making cnc router cutting :
No. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x300mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | Vacuum and T-slot combined table |
6 | Frame | Welded structure |
7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 4.5kw |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 9kw |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | Yaskawa servo |
15 | Working Voltage | AC 380V/50/60Hz,3PH |
16 | Command Language | G Code |
17 | Operating System | NcStudio Control System/LNC/ Syntec |
18 | Computer Interface | Ethernet |
19 | Flash Memory | 256M with CF card |
20 | Collet | ER32 |
21 | X,Y Resolution | <0.03mm |
22 | Software Compatibility | Artcam software, Original Type 3. |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 3400X2200X1900mm(in parts) |
26 | N.W. | 2500KG |
27 | G.W. | 2600KG |

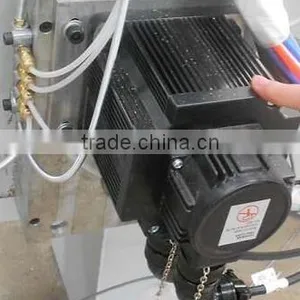

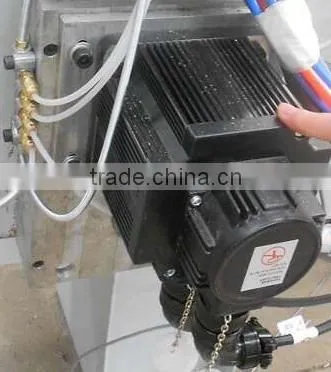

3.The Parts of Discount Price KC1325C-ATC cnc router spindle motor/ wood door making cnc router cutting :
4.The Samples for your reference of Discount Price KC1325C-ATC cnc router spindle motor/ wood door making cnc router cutting :
Standard Wooden Box:
♦ One year quality guaranty, the machine with main parts shall be changed free of charge when if any problem during the warranty period.
♦ Life time maintenance free of charge.
♦ Free training course at our plant.
♦ 24 hours on line service each day, free technical support.
♦ Machine has been adjusted before delivery
My WhatsApp:008613708920736
Our factory:
1) What payment you accept?
1.T/T inadvance 2.western union 3 . Trade Assurance
2) I did not imported before , how should i do ?
You only need pay to us , we will arrange all the things to you and teach you how to do .we will
prepare all the documents to you , you don't need worry , because we know what you need .
3) Do You Arrange the ship For us?
Yes ,for FOB or CIF price, we will arrange shipment for you.
4) How about the documents after shipment?
We‘ ll send all original documents to you by DHL, for example :the Packing List, Commercial
Invoice, B/L, and other certificates as required by clients.
5) My whatsapp:008613708920736
