Home > Products > Advanced engineering plastic > Wholesale 100% Virgin Material Engineering Plastic PPS Rod

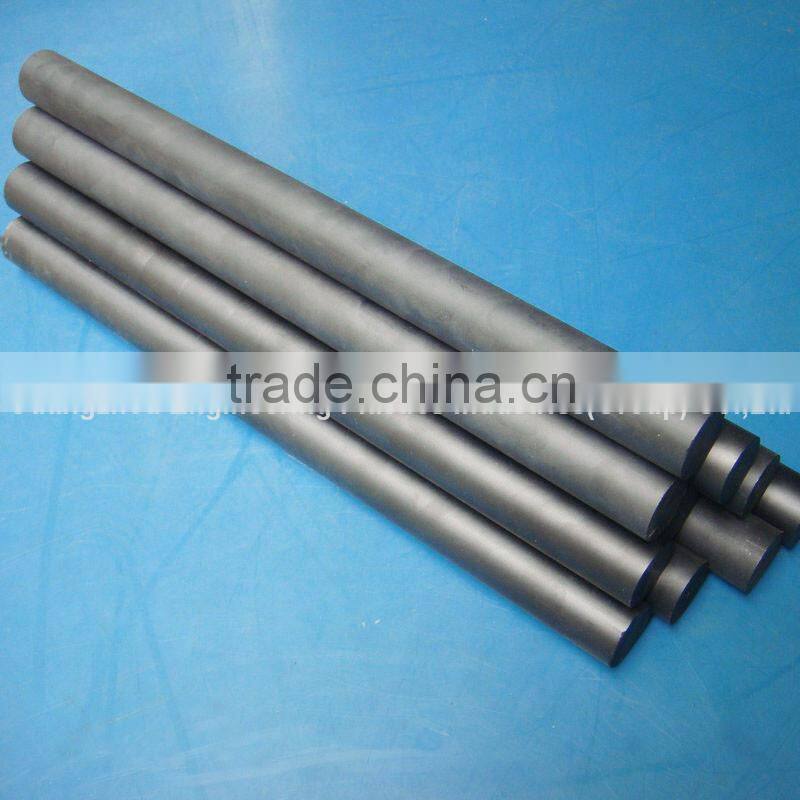

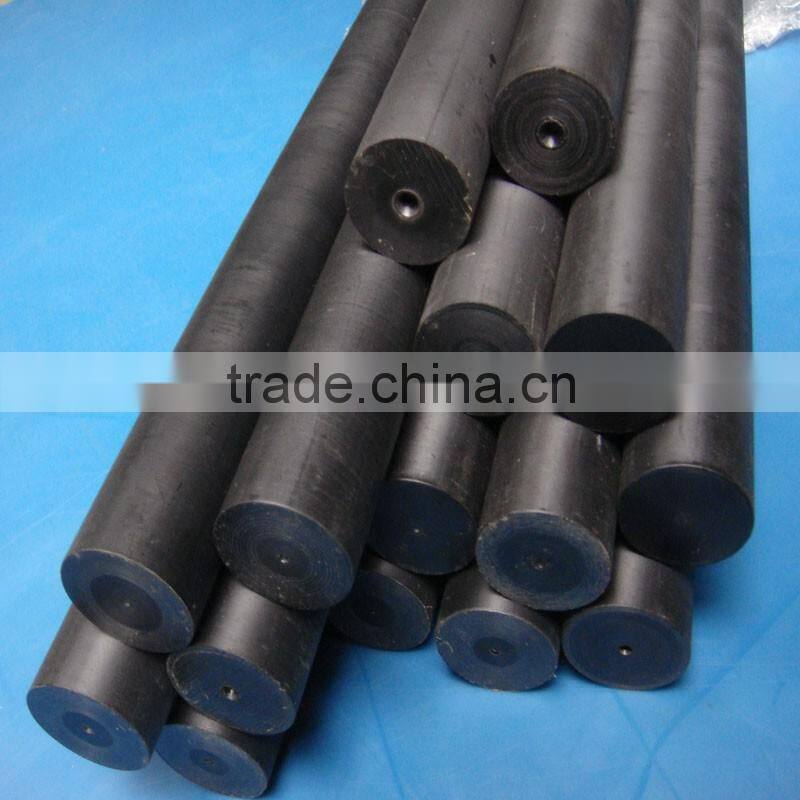

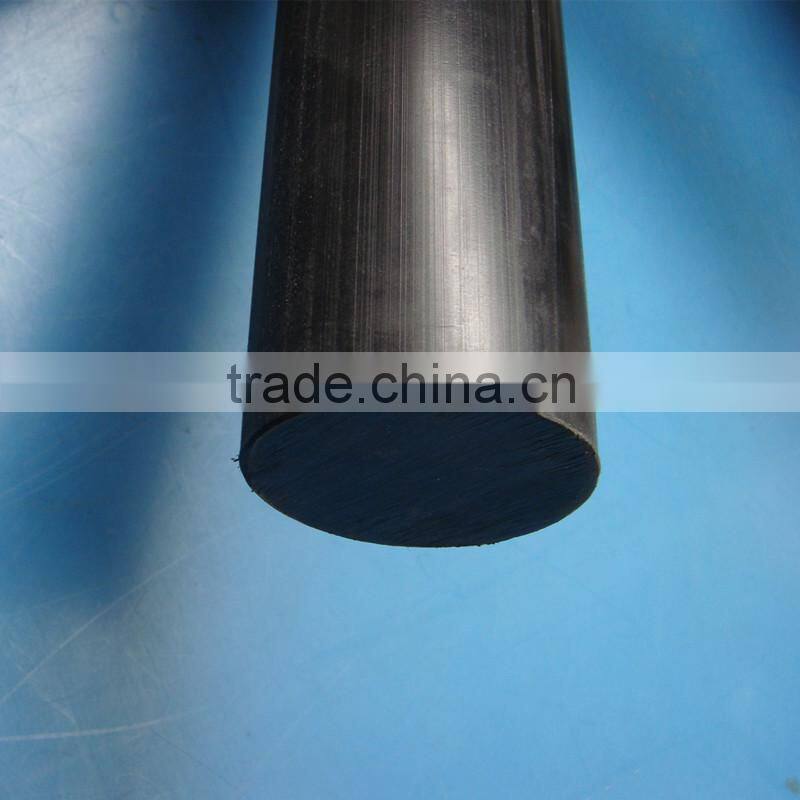

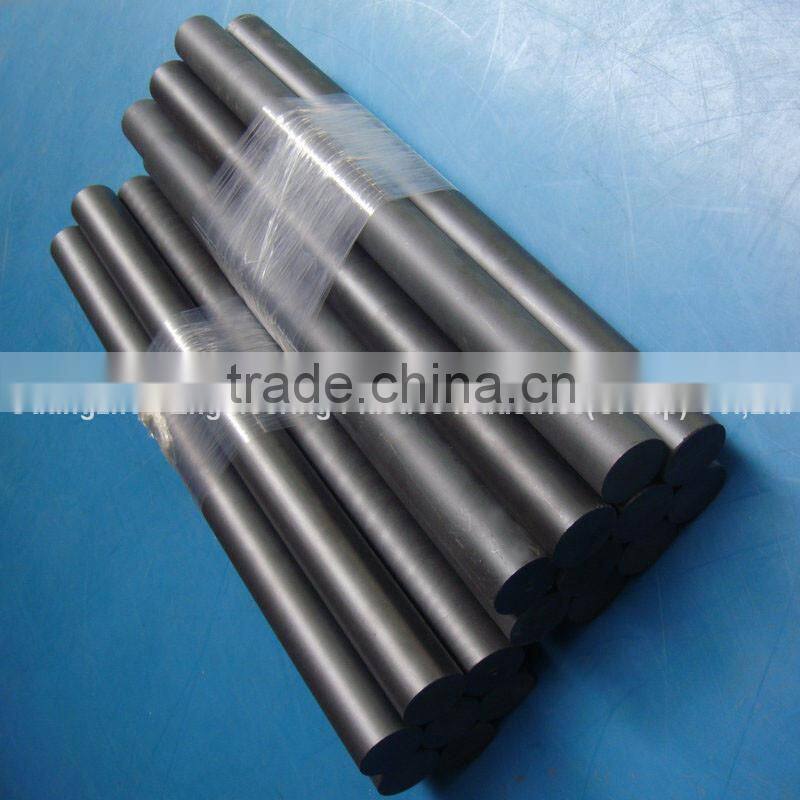

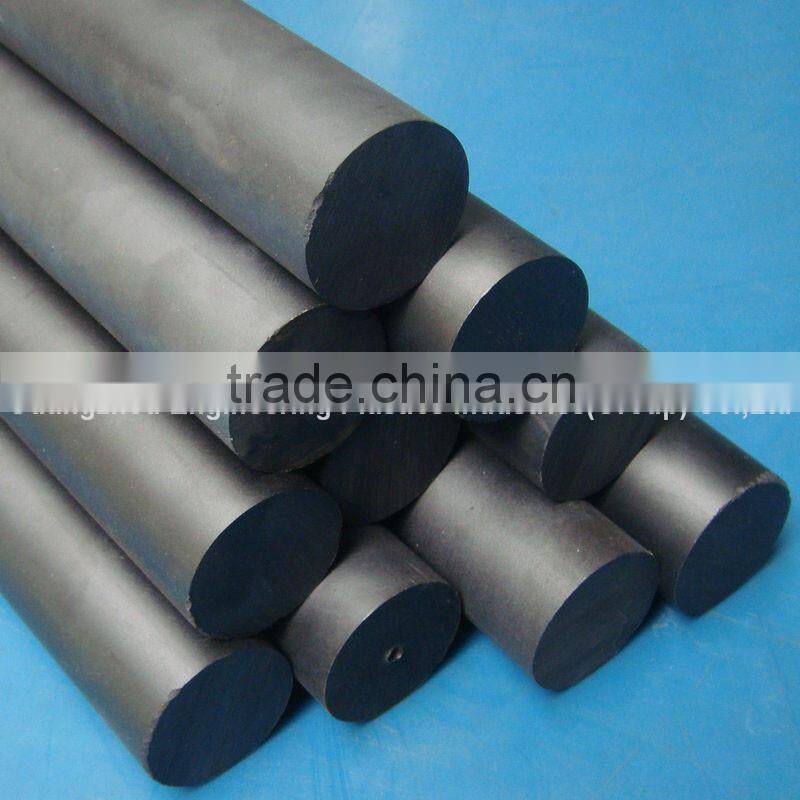

Wholesale 100% Virgin Material Engineering Plastic PPS Rod
- GuangZhou port
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
Engineering Plastic PPS Rod/bar
-
High Temperature Resistance PEEK Rod
-
China Medical Industries High Property Hard Soild Plastic PPS-HPV TECHTRON PPS Material Rods
-
Extruded Engineering Customized Diameter Flexible Round Durable Hard Pps Plastic Solid Bar Rod
-
Special Engineering Plastic Products Customized Cnc Machining Small Plastic Engineering Peek Parts
-
OEM Cheap Price Natural Color 100% PPS-HPV Board Plastic PPS Sheet Supplier
Product Details
| Place of Origin | Guangdong, China | Brand Name | Engineering | |
| Model Number | pps rod |
Product Description
1. Rich industry experience since 1988.
2. Wide arrange product line, including plastics sheet/rod/parts/accessories: MC NYLON, OIL NYLON, POM, UHMW-PE, PU,PSU,PMMA, PETP, PC, PTFE, PVDF, PPS, PEEK, PAI, PI, PEI ect.
3. Manufacture, design and processing service as per your demand.
pps features:
1.Good chemical and hydrolysis resistance even against superheated steam
2.Very wear resistant
3.Very rigid
4.Creep resistant
5.Not electrically insulating
6.Good machinability
7.Resistant to gamma radiation
PPS rod property:
Property | Item No. | Unit | Oil Nylon (Green) | MC901 (Blue) | Nylon+MSO2 (Light black) | |
Mechanical Properties | 1 | Density | g/cm3 | 1.135 | 1.15 | 1.16 |
2 | Water absorption (23℃ in air) | % | 2 | 2.3 | 2.4 | |
3 | Tensile strength | MPa | 70 | 81 | 78 | |
4 | Tensile strain at break | % | 25 | 35 | 25 | |
5 | Compressive stress(at 2%nominal strain) | MPa | 43 | 47 | 49 | |
6 | Charpy impact strength (unnotched) | KJ/m2 | ≥50 | No BK | No break | |
7 | Charpy impact strength (notched) | KJ/m2 | 4 | 3.5 | 3.5 | |
8 | Tensile modulus of elasticity | MPa | 3000 | 3200 | 3300 | |
9 | Ball indentation hardness | N/mm2 | 145 | 160 | 160 | |
10 | Rockwell hardness | - | M82 | M85 | M84 | |
Thermal Properties | 11 | Thermal conductivity at 23℃ | W/(K.m) | 0.28 | 0.29 | 0.30 |
12 | Melting temperature | ℃ | 220 | 220 | 220 | |
13 | Glass transition temperature | ℃ | -- | -- | -- | |
14 | Temperature of deflection(1.8MPa) | ℃ | 75 | 80 | 80 | |
15 | Max allowable working temperature in air for short periods | ℃ | 165 | 170 | 170 | |
16 | Max allowable working temperature in air continuously | ℃ | 105 | 105 | 105 | |
17 | Coefficient of liner thermal expansion (at 23-150℃) | m/(m.K) | 90x10-6 | 90x10-6 | 90x10-6 | |
18 | Flammability | UL-94 | HB/HB | HB/HB | HB/HB | |
Electrical | 19 | Electric strength | KV/mm | 22 | 25 | 24 |
20 | Dielectric dissipation factor(at 1M Hz) | - | 0.016 | 0.016 | 0.016 | |
21 | Relative permittivity(at 1M Hz) | - | 3.1 | 3.2 | 3.2 | |
22 | Volume resistivity | Ω.cm | >1014 | >1014 | >1014 | |
23 | Surface resistivity | Ω | >1013 | >1013 | >1013 | |
1.A: What’s the size of plastics sheet?
B:Nylon sheet:Thickness*Width*Length:20-100*1000*2000mm
UHMW-PE sheet:Thickness*Width*Length:20-100*1000*2000mm; 20-100*1250*3130mm; 20-100*1250*4250mm
POM sheet:Width*Length:1000*2000mm
2. A:Can we purchase a small part of plastics sheet?
B: Yes,you can, if we have the size you require in stock.
3. A:What color of plastics sheet?
B: Nylon sheet: Natural,black,blue,or according to client’s requiremnet.
UHMW-PE sheet: White,black,green ,bule,yellow,or according to client’s requirement.
White,black
4. A:Can you manufacture the plastics products as per drawing?
B: Yes,we can.
5.A: What the precision of plastic products according to drawing?
B: Different machine with different precision,it usually around 0.05-0.1mm
6.A: What the technologies in producing plastics parts?
B: Different products with different technologies,such as CNC machine,Extrusion,Injection
7: A:What kinds of processing machine do you have?
B: CNC machining center,CNC lathes,Milling,Injection Molding Machine,Extruder,Moulding press
