High Quality KC1325L-ATC Cnc Router Machine Price

High Quality KC1325L-ATC Cnc Router Machine Price photo-1
High Quality KC1325L-ATC Cnc Router Machine Price photo-2
High Quality KC1325L-ATC Cnc Router Machine Price photo-3
High Quality KC1325L-ATC Cnc Router Machine Price photo-4
High Quality KC1325L-ATC Cnc Router Machine Price photo-5
High Quality KC1325L-ATC Cnc Router Machine Price photo-6
US$ 10,000 - 26,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name KING CARPENTER
Model Number KC1325L-ATC
Voltage 220V/380V
Power(W) Without Spindle) 4.2Kw
Dimension(L*W*H) 3300*2200*1800mm
Weight 1800KG
Certification CE ISO9001
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

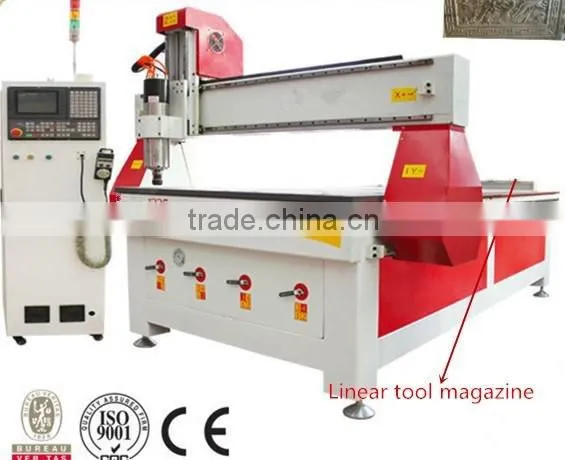

High Quality KC1325L-ATC cnc router machine price

Product Description

1.The Introduction of High Quality KC1325L-ATC cnc router machine price :

With hard steel structure, the machine is fit for hard wood working, like cutting and engraving on rosewood for furniture, indoor decoration, and it is qualified for mass-producing of furniture with the vacuum holding way and dust collector.


We use top quality components for the machine, such as Italian HSD spindle, Delta Inverter, NcStudio Control System/LNC/ Syntec control system, Hiwin linear and so on, to keep the machine in  best condition even after working for many years.

2.The Parameter of High Quality KC1325L-ATC cnc router machine price :

No

Description

parameter

1

XYZ working area

1300*2500*300mm

2

Table size

1360*3040mm

3

XYZ travel positioning accuracy

±0.03mm

4

XYZ repositioning positioning accury

±0.03mm

5

Table surface

Vacuum and T-slot combined

6

frame

Welded steel tube structure

7

drive system X-Y axis

Rack and pinion,Hiwin rail liner bearing

8

drive system Z axis

Hiwin rail liner and  bearingBall screw

9

Max power consumption

4.2KW without spindle

10

Max velocity

30000mm/min

11

Max working speed

25000mm/min

12

Spindle speed

0-24000RPM

13

work mode

850w Yaskawa servo system

14

Working voltage

AC380V

15

Command language

G code

16

Interface

USB

17

Operating system

NcStudio Control System/LNC/ Syntec

18

Flash memory

256M

19

X-Y resolution

0.03mm

20

Software environment

Wentai type3 artcam

21

Running environment

Temperature:0-45

22

Paking size

3300*2200*1800mm

23

Net weight

1500KG

24

Gross weight

1800KG

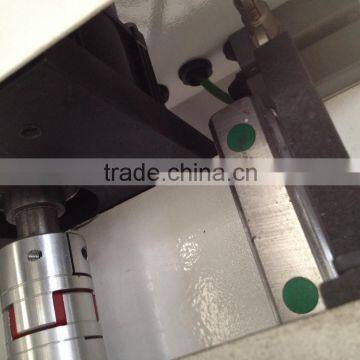

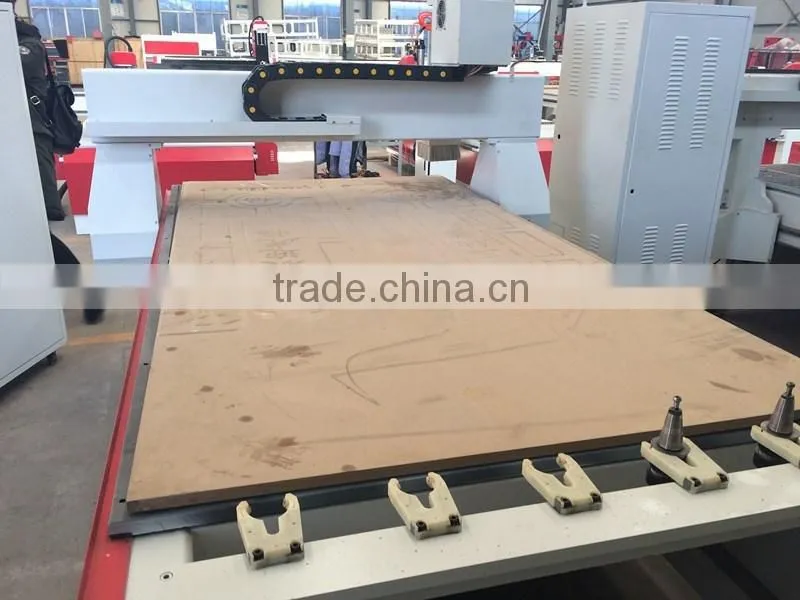

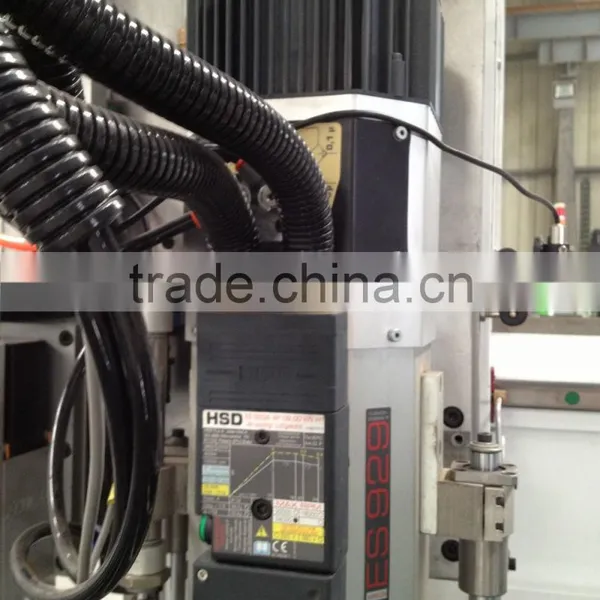

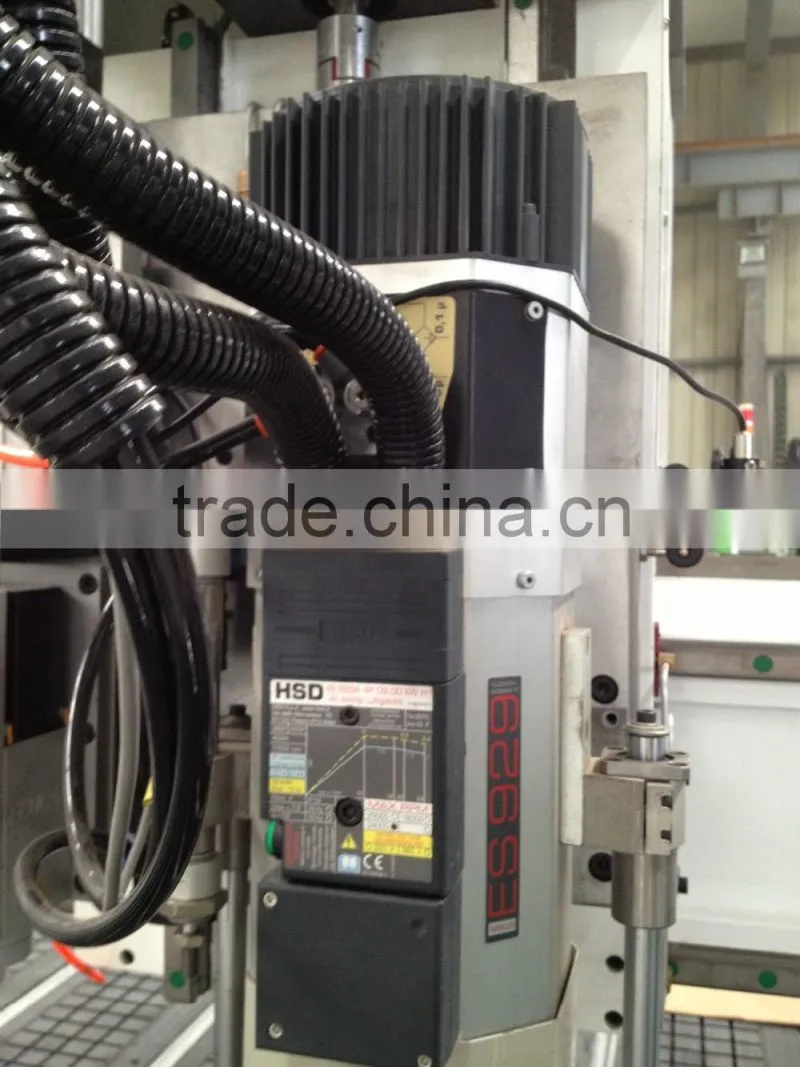

3.The Parts of High Quality KC1325L-ATC cnc router machine price :

High Quality KC1325L-ATC cnc router machine price



High Quality KC1325L-ATC cnc router machine price

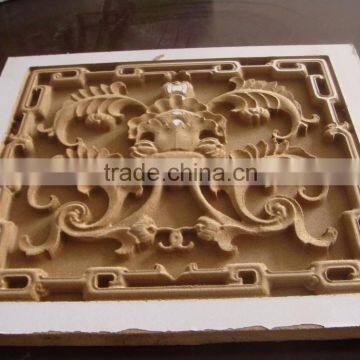

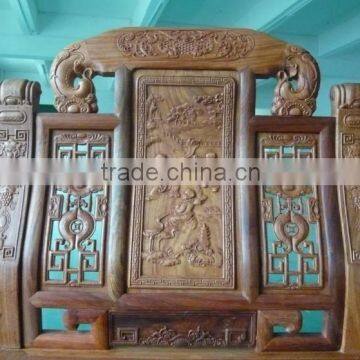

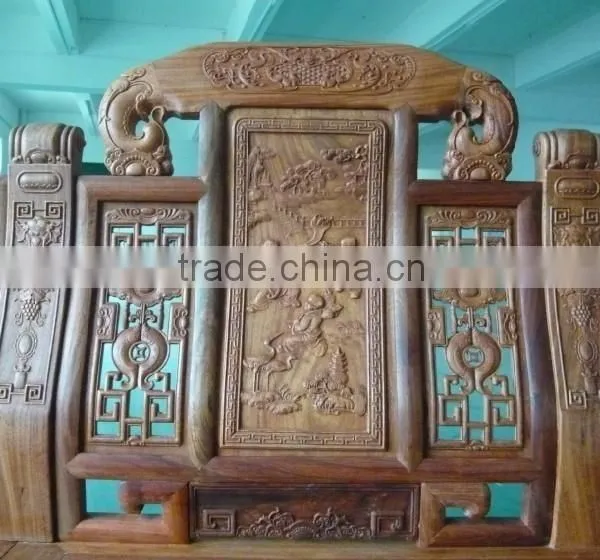

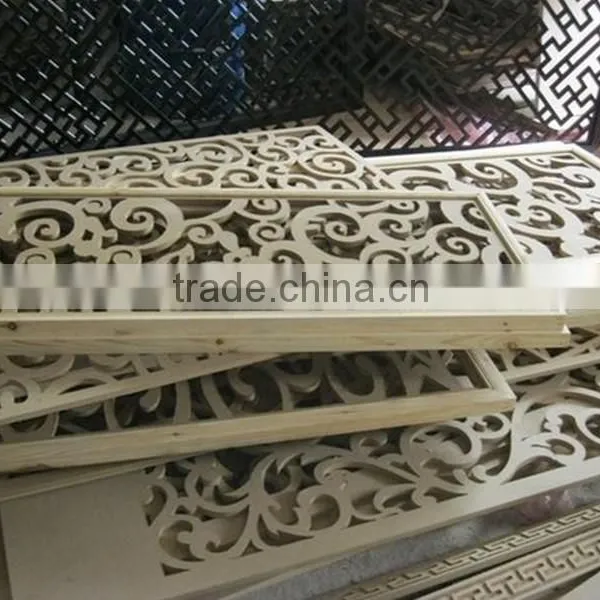

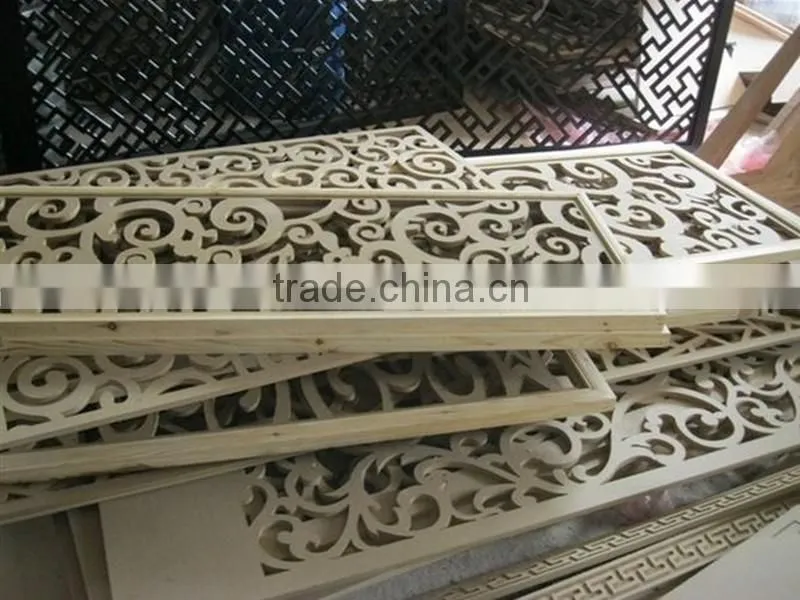

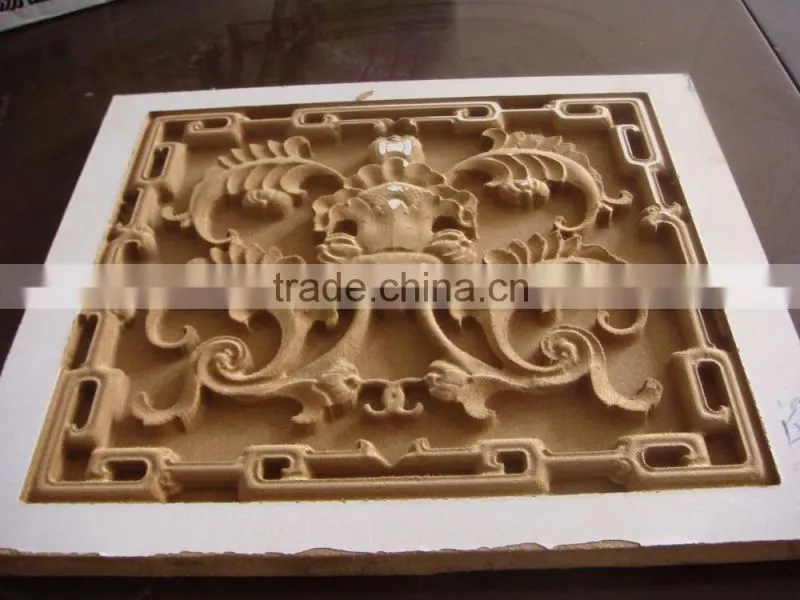

4.The Samples for your reference of  High Quality KC1325L-ATC cnc router machine price :

High Quality KC1325L-ATC cnc router machine priceHigh Quality KC1325L-ATC cnc router machine price

Packaging & Shipping

Standard Wooden Box:



Our Services

♦ One year quality guaranty, the machine with main parts shall be changed free of charge when if any problem during the warranty period.

♦ Life time maintenance free of charge.

♦ Free training course at our plant.

♦ 24 hours on line service each day, free technical support.

♦ Machine has been adjusted before delivery

My WhatsApp:008613708920736

My Skype: 2017226737 @qq.com

Company Information

Our factory:



FAQ

1)  What payment you accept?

    1.T/T inadvance   2.western union  3 . Trade Assurance



2)  I did not imported before , how should i do ?

     You only need pay to us , we will arrange all the things to you and teach you how to do .we will

     prepare all the documents to you , you don't need worry , because we know what you need .



3)  Do You Arrange the ship For us?

    Yes ,for FOB or CIF price, we will arrange shipment for you.



4)  How about the documents after shipment?

    We‘ ll send all original documents to you by DHL, for example :the  Packing List, Commercial

    Invoice, B/L, and other certificates as required by clients.



5)  My whatsapp:008613708920736

    My Skype: 2017226737 @qq.com
