Home > Electrical & Electronics > Telecommunication & Broadcasting > Network Cabinet > APS Laboratory Stainless Steel Cabinet
US$ 557 - 1,033
MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
KAIWEI
Model Number:
APS80135002
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AP Hospital CabinetUS$ 318 - 590MOQ: 100 Sets -
APS Three-section Industrial Operator ConsoleUS$ 557 - 1,033MOQ: 100 Sets
-
AP Beveled Operator Control DeskUS$ 318 - 590MOQ: 100 Sets
-
APS Industrial Operator ConsoleUS$ 557 - 1,033MOQ: 100 Sets
-
AP Beveled Industrial Operation ConsoleUS$ 318 - 590MOQ: 100 Sets
Place of Origin
Shanghai, China
Brand Name
KAIWEI
Model Number
APS80135002
Protection Level
IP54
Type
Other, Operation Console
External Size
800mm*1300mm*500mm
Specifications
1.Unique appearance and structure design embodies luxury character of the console body.2.Can be used independently

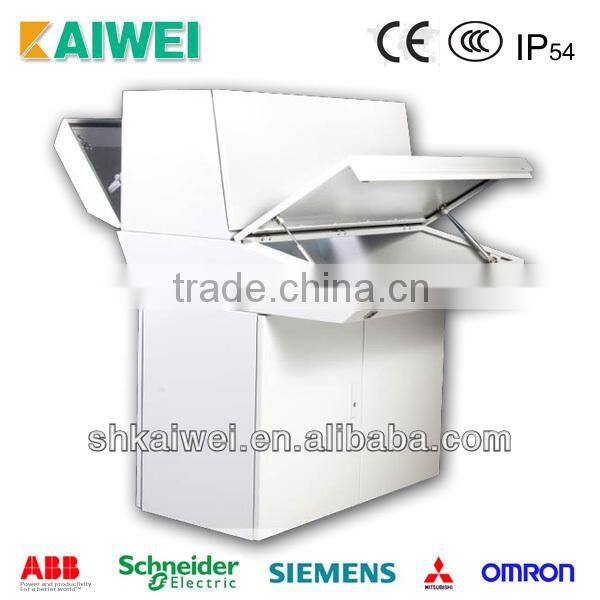

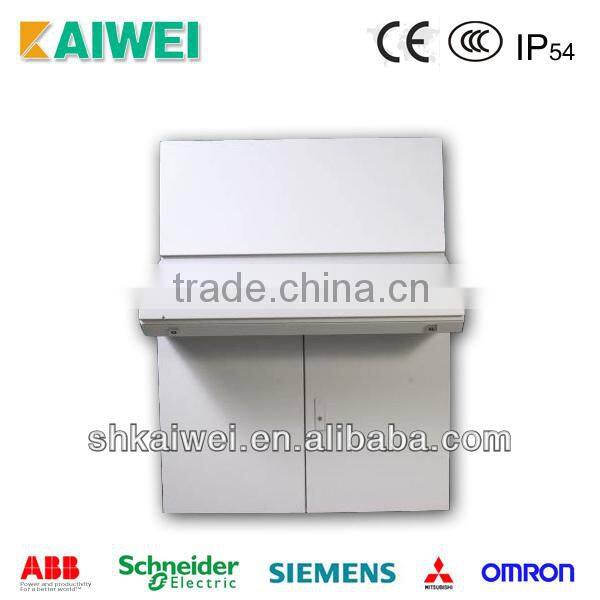

APS laboratory stainless steel cabinet
1. Material: Cold Rolled Steel Sheet
2. Surface Treatment: Etch Primer for Box Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.
3. Class of Protection: IP54(According to GB4205-1993)
| Item Name: | APS laboratory stainless steel cabinet | |||||||
| Material: | Cold Rolled Steel Sheet | |||||||
| Thickness: | Cabinet Body 2.0mm Door Plate:2.0mm Operation Console Board:2.0mm Mounting Plate:2.5mm | |||||||
| Standard Configuration: | Front Single(dual)Door,Operation Console Board,Cabinet Body,Mounting Plate,Door Lock,Sealing Strip,and Hydraulic Support | |||||||
| Surface Treatment: | Etch Primer for Cabinet Body,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized. | |||||||
| Class of Protection: | IP54(According to GB4205-1993) | |||||||
| MOQ: | 100 PCS | |||||||
| Supply Ability: | 10000 PCS/Month | |||||||
| Delivery Time: | 10-15 days | |||||||
| Remark: | Special Demands Can Be Customized | |||||||
No. | Order No.(RAL7032) | Order No.(RAL7035) | Width | Height | Depth |
| 1 | APS80135002 | APS80135005 | 800 | 1300 | 500 |
| 2 | APS10135002 | APS10135005 | 1000 | 1300 | 500 |
| 3 | APS12135002 | APS12135005 | 1200 | 1300 | 500 |
| 4 | APS16135002 | APS16135005 | 1600 | 1300 | 500 |
| 5 | APS80155002 | APS80155005 | 800 | 1500 | 500 |
| 6 | APS10155002 | APS10155005 | 1000 | 1500 | 500 |
| 7 | APS12155002 | APS12155005 | 1200 | 1500 | 500 |
| 8 | APS16155002 | APS16155005 | 1600 | 1500 | 500 |
| 9 | APS80134002 | APS80134005 | 800 | 1300 | 400 |
| 10 | APS10134002 | APS10134005 | 1000 | 1300 | 400 |
| 11 | APS12134002 | APS12134005 | 1200 | 1300 | 400 |
| 12 | APS16134002 | APS16134005 | 1600 | 1300 | 400 |
| 13 | APS80154002 | APS80154005 | 800 | 1500 | 400 |
| 14 | APS10154002 | APS10154005 | 1000 | 1500 | 400 |
| 15 | APS12154002 | APS12154005 | 1200 | 1500 | 400 |
| 16 | APS16154002 | APS16154005 | 1600 | 1500 | 400 |
Details:
Main advantage of APS laboratory stainless steel cabinet :
- Unique appearance and structure design embodies luxury character of the console body.
- The three sections of console body are dismountable and can be used independently.

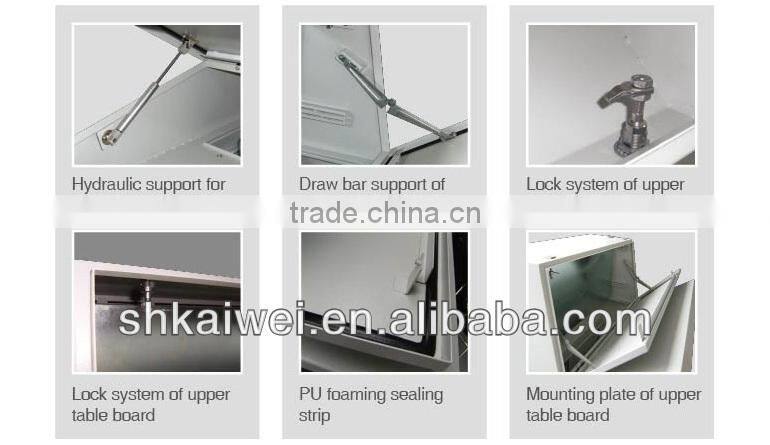

- A and B operating panels, back display cover plate and front and back single(dual) doors can be opened and fixed with luxury hydraulic supports and high-strength draw bars, embodying humanized design and installation convenience.
- Ground clearance of front and back single(dual) doors are sufficient, about 25mm, ensuring smoothness and convenience of door opening.

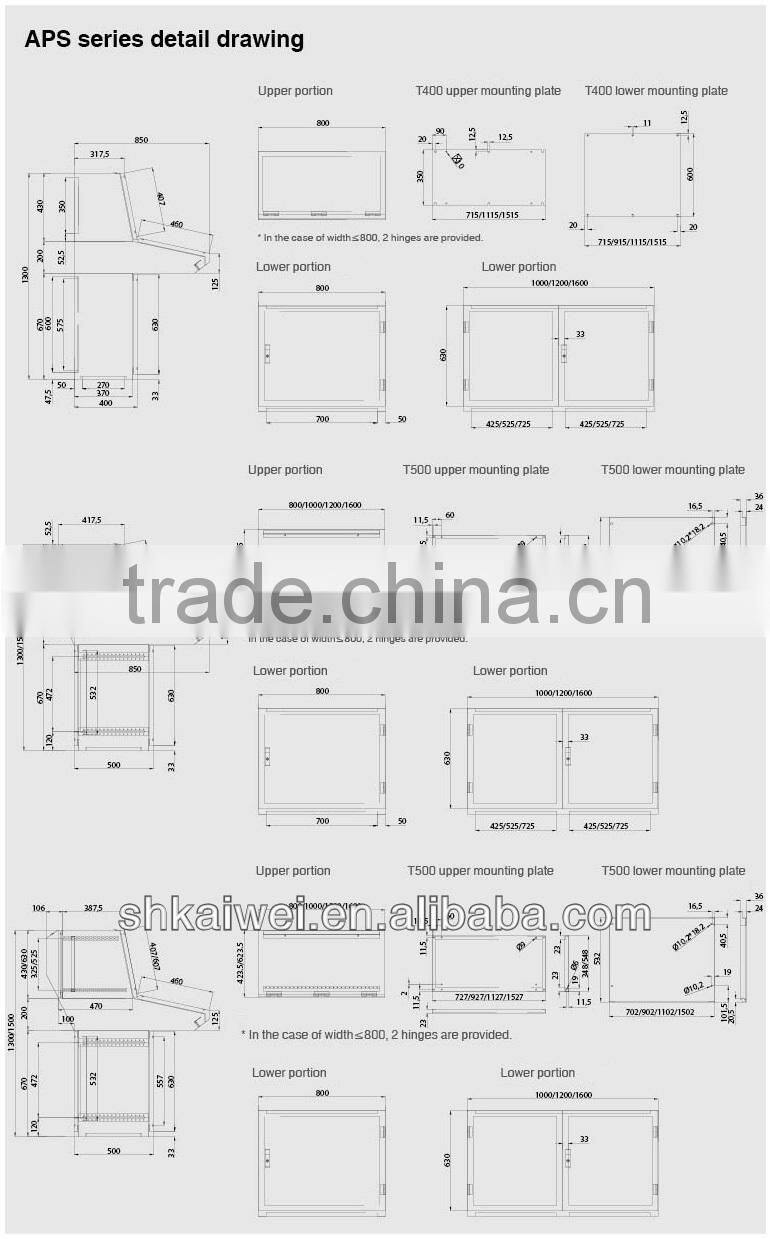

- Specific three-section console structural dimension is detailed in drawing.
